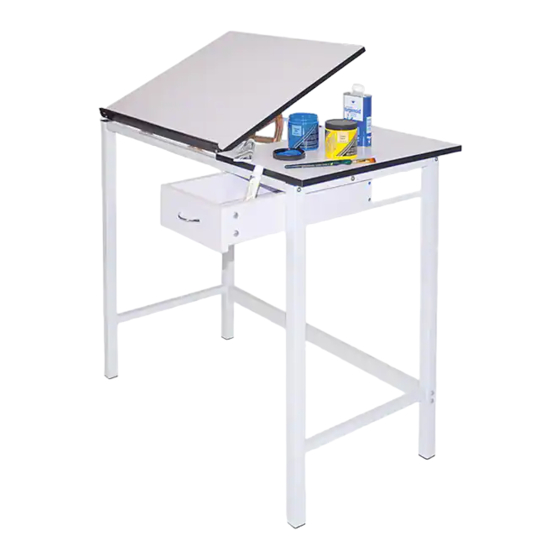

Manchester Split-top Table Assembly Instructions

Part A - 1 piece

Part E - 1 piece

Part F - 1 piece

Part I - 1 piece

Part M

- 2 pieces

Part Q - 2 pieces

4x18mm

Part U - 2 pieces

Part Y - 1 piece

Part B1 - 1 piece

If you have difﬁculty assembling your Manchester Table or need customer service assistance.

Please call: Martin Universal Design, Inc. Customer Service Hot Line at 1-313-895-0700.

If you need additional parts, it is not necessary to contact your dealer, our Customer Service Rep.

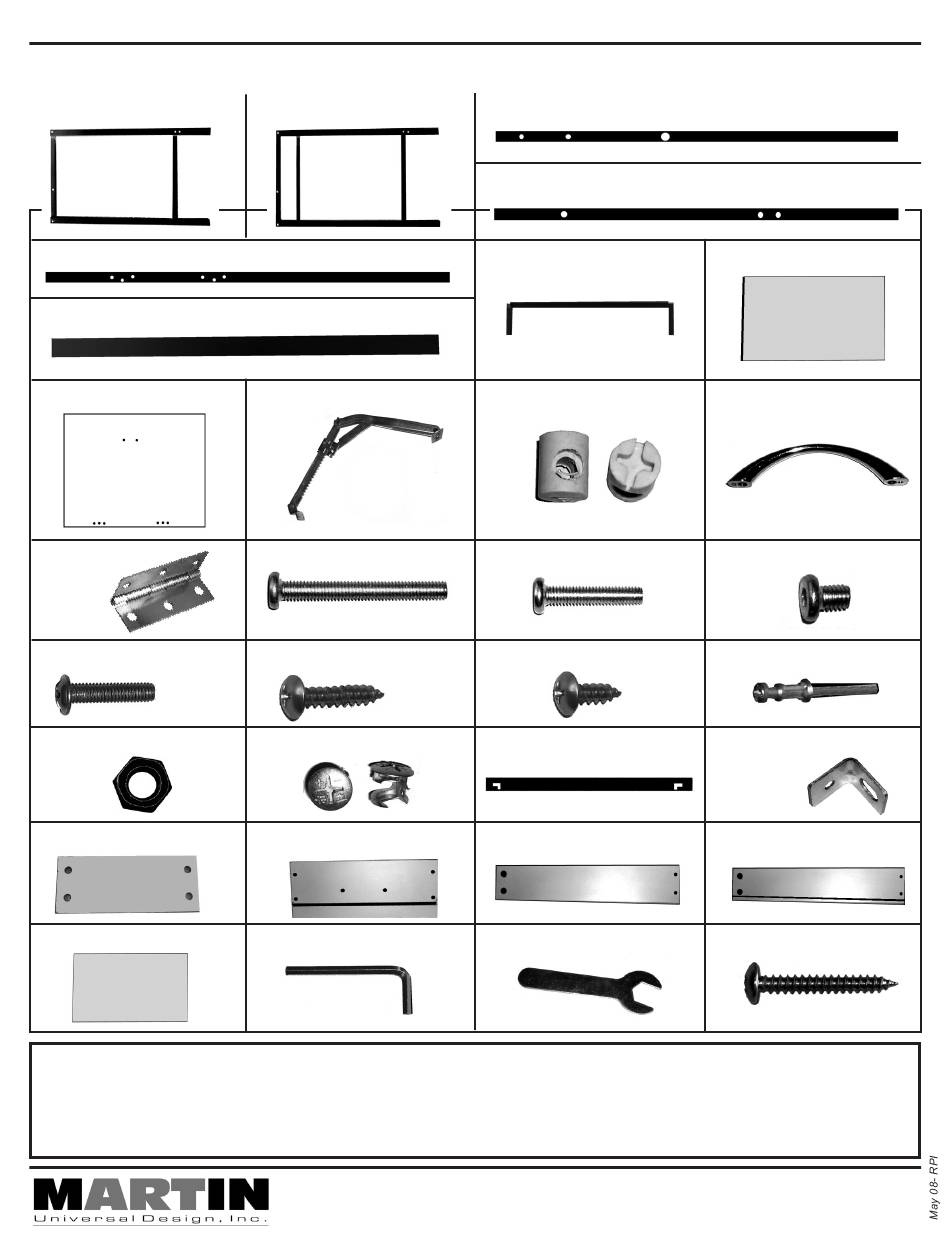

Parts List

Part B - 1 piece

Part J - 1 piece

Part N - 10 pieces

6x50mm

Part R - 3 pieces

4x30mm

Part V - 4 pieces

Part Z - 1 piece

Part C1 - 1 piece

IMPORTANT

will forward them to you immediately.

4444 Lawton Avenue, Detroit, MI 48208 USA • Tel:(313)895-0700/Fax:(313)895-0709

Email: Custservmud@aol.com • visit us at www.MartinUniversalDesign.com

Part C - 1 piece

Part D - 1 piece

Part G - 1 piece

Part K - 4 pieces

Part O - 4 pieces

6x30mm

Part S - 14 pieces

4x12mm

Part W - 1 piece

Part A1R - 1 piece

Part D1 - 1 piece

Part H - 1 piece

Part L - 1 piece

Part P - 3 pieces

6x8mm

Part T- 4 pieces

Part X- 1 piece

Part A1L- 1 piece

Part E1- 4 pieces

4x35mm

Pg. 1

Need help?

Do you have a question about the Manchester and is the answer not in the manual?

Questions and answers

Summary of Contents for Martin Universal Design Manchester

Page 1 4x35mm IMPORTANT If you have difﬁculty assembling your Manchester Table or need customer service assistance. Please call: Martin Universal Design, Inc. Customer Service Hot Line at 1-313-895-0700. If you need additional parts, it is not necessary to contact your dealer, our Customer Service Rep.
Page 2 Manchester DRAWER Assembly PLEASE NOTE: Assemble the Drawer FIRST before assembling the base. Once assembled, set drawer to side. Assembled drawer to be used later during assembly of table. STEP 1] Assemble Drawer FIG A Begin by taking the back panel of drawer (Part Y) and...
Page 3 Manchester DRAWER Assembly STEP 4] Assemble Drawer, cont’d Attach sides of drawers (Parts A1L & A1R) to the Drawer front (Part Z) by inserting Threaded Connection Pins into the holes on the outside edge of the Drawers sides (Parts A1L & A1R).
Page 4 Manchester DRAWER Assembly STEP 7] Attaching Drawer Handle Attach drawer handle (Part L) to drawer, using 2 each 4x18mm screws (Part Q). See FIG H Insert screws (Part Q) through inside of drawer into ap- propriate holes and tighten with phillips screwdriver. Hold onto drawer handle while securing screws.
Page 5 Manchester Split-top Table Assembly Instructions STEP 1] Assembly Base of Table Begin by assembling the base by taking the left side (part A) and attaching the three cross supports (part C, D & E) using 1 each 6x50mm hex bolts (part N) into...
Page 6 Manchester Split-top Table Assembly Instructions STEP 3] Assembly Base of Table, cont’d Repeat with right side (part B) by attaching the other end of the three cross supports (part C, D & E) using 1 each 6x50mm hex bolts (part N) into each hole found on the outside side edge of Part A and lining that hole up with the hole in the end of each cross support.
Page 7 Manchester Split-top Table Assembly Instructions STEP 5] Attach Lower Cross support Attach lower wider Cross Support (part F) to lower portion of base by lining up the two holes on each end of Part A & B with the two holes found in each end of Part F.
Page 8 Manchester Split-top Table Assembly Instructions STEP 8] Attach Drawer support guide Attach Drawer support guide (Part G) to base cross supports (part C & E) using 2 each 6x30mm Hex bolts. Tighten with Allen Wrench. See FIG 12. PLEASE NOTE: Make sure the Drawer Support guide is facing the right as in FIG 12.
Page 9 Manchester Split-top Table Assembly Instructions STEP 11] Attach Tilt Mechanism to Top After lining up holes, attach tilt mechanism (Part J) to top with 2 each 6x8mm Hex Bolts (Part P). Tighten with Allen Wrench. See FIG 15. FIG 15...
Page 10 Manchester Split-top Table Assembly Instructions STEP 14] Attaching Drawer Stop, cont’d After sliding Drawer into table, you need to install the drawer stop (Part X). This can be a bit tricky. You need to position the Drawer Stop (Part X) as shown in FIG 18 and FIG 18b, then from underneath, secure the drawer stop with a 6x8mm Hex Bolt (Part P).
Page 11 Manchester Split-top Table Assembly Instructions WARNING: To Install the SIDE SHELF, the Table must be turned back over onto its Table Top. Use 2 People to turn Table over onto the Table Top, making sure it is placed on a protected surface like a carpeted ﬂoor.
Page 12 Manchester Split-top Table Assembly Instructions STEP 16] Attaching Side Shelf FIG 21 Once Side Shelf is positioned correctly, secure shelf using 3 wood 4x30mm screws (Part R) in the holes indicated in FIG 21. Use a Phillips Screwdriver to secure.
