Creative Table Assembly Instructions:

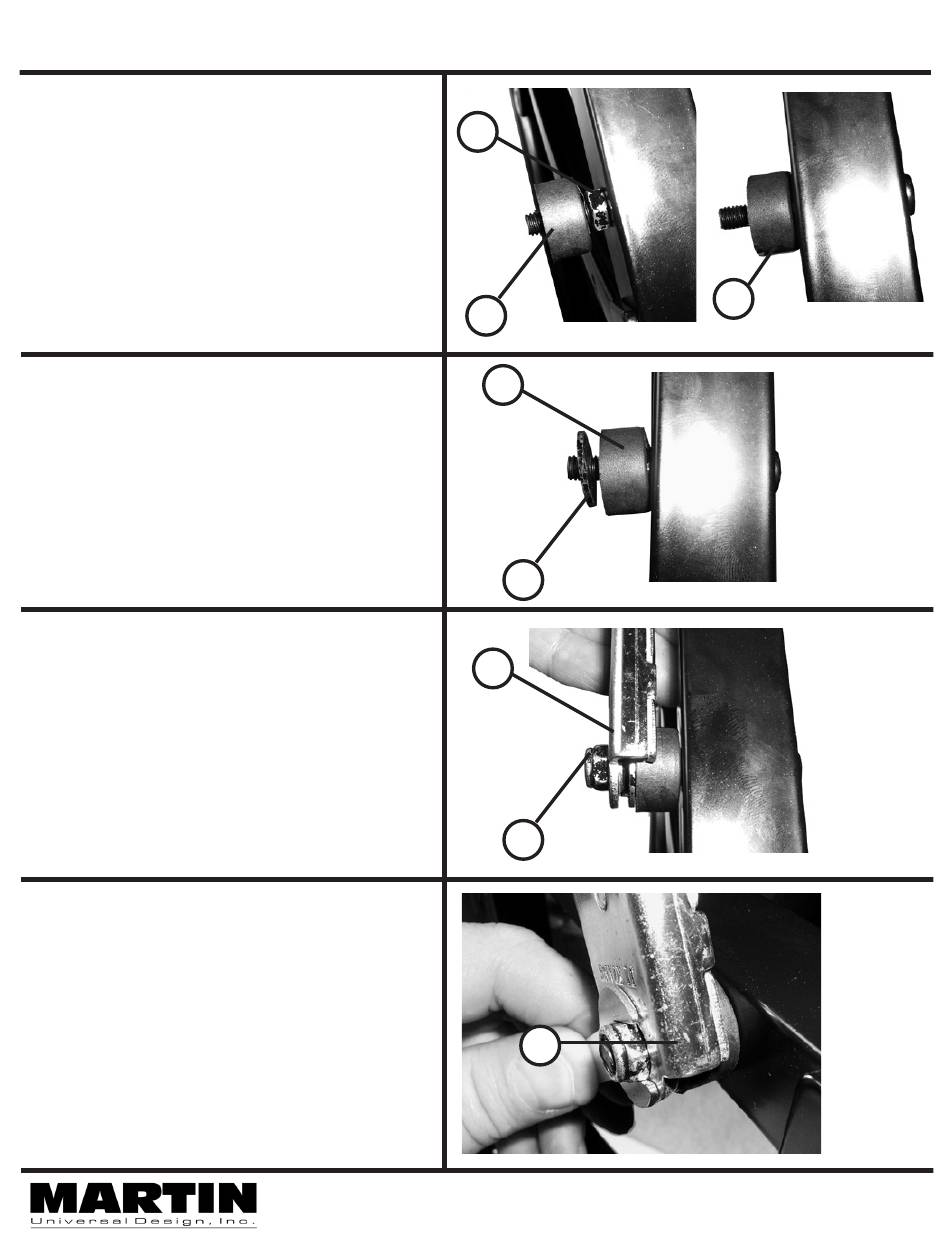

Step 4 Continued.
Attaching Tilt Mechanisms (Part O) to Base
Assembly continued.
After tightening the Nut (Part Y), add [1]
Plastic Spacer (Part N) by placing it over the
Nut (Part Y). See FIG 4C.
Step 4 Continued.
Attaching Tilt Mechanisms (Part O) to Base
Assembly continued.
After placing the Spacer over the Nut,
continue by adding a washer (Part X) and
placing it next to the Plastic Spacer.
See FIG 4D.
Step 4 Continued.
Attaching Tilt Mechanisms (Part O) to Base
Assembly continued.
After adding the washer, you will now place
the end of the Tilt Mechanism (Part O)
NOTE: Make sure you position the Tilt
Mechanism as shown in FIG 4E.
Complete by adding a Nylon Nut (Part P) to
the end of the Allen Bolt. See FIG 4E
Completing Step 4.
After adding the adding the Nylon Nut to the
end of the Allen Bolt, you will now tighten the
Nut (Part P) with the wrench (Part AA).
See FIG 4F.
REPEAT these Steps for the other side to
complete assemblies for both Left & Right
Tilt Mechanisms.
