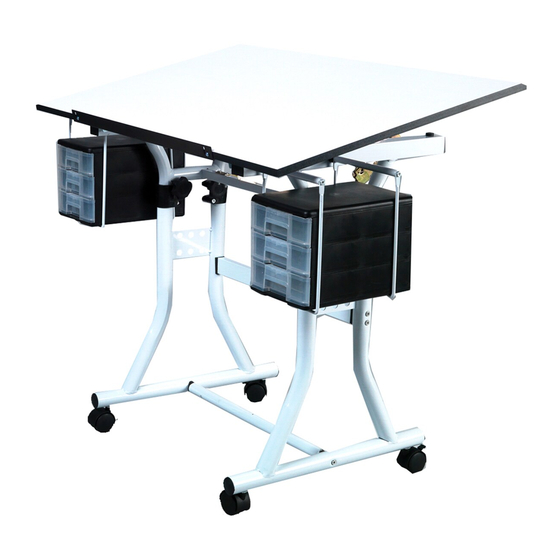

Ashley Table with Stool
Video Assembly Instructions:
Go to www.MartinUniversalDesign.com and click on Assembly
Instructions to watch a video for HOW TO ASSEMBLE the
U-DS92ST Ashley Creative Center.
Assembly Instructions
4444 Lawton Street, Detroit, MI 48208 USA / Tel: 1-313-895-0700 / Fax: 1-313-895-0709
E-mail: CustservMUD@gmail.com / www.MartinUniversalDesign.com
Model No. : U-DS92ST / U-DS92STB
Important:
If you have difficulty assembling your U-DS92ST Creative Center
or need customer service assistance, please call Martin Universal
Design, Inc. Customer Service Hot Line at 1-313-895-0700. If you
need additional parts, it is not necessary to contact your dealer,
our Customer Service Rep. will forward them to you immediately.
10/2011 - RPI
Advertisement
Table of Contents
Related Manuals for Martin Universal Design Ashley U-DS92ST
Summary of Contents for Martin Universal Design Ashley U-DS92ST
- Page 1 Ashley Table with Stool Assembly Instructions Model No. : U-DS92ST / U-DS92STB Video Assembly Instructions: Important: Go to www.MartinUniversalDesign.com and click on Assembly If you have difficulty assembling your U-DS92ST Creative Center Instructions to watch a video for HOW TO ASSEMBLE the or need customer service assistance, please call Martin Universal U-DS92ST Ashley Creative Center.
- Page 2 U-DS92ST / U-DS92STB : TABLE COMPONENTS Ashley Table with Stool Parts List : FASTENERS AND TOOLS 23.5” X 35.5” TOP UPPER BASE LEFT & RIGHT END LOWER BASE LEFT & RIGHT END SEAT ey - Hardware Parts List : Table Components : Fasteners and Tools CROSS SUPPORT BASE FLOOR SUPPORT...
- Page 3 Step 1: Base Assembly & Cross Support Fastener Parts Needed for this Step : 20 = 4 ea. Start with taking the [2] Lower Base Ends (Part spreading them apart, and inserting the Cross Support (Part ) between them as seen in the Image. Attach the three pieces together with [4] 6x45 mm bolts (Part Tighten with Allen Wrench (Part...
- Page 4 Step 4: Collars Loosen the lower bolt below the knob on the collar. Line up the square end with the base. Slide/push on top of the base. It is beneficial to have the knobs face inwards so they do not interfere with drawers or Media supports.
-
Page 5: Step 7: Media Support
Step 7: Media Support Fastener Parts Needed for this Step : 27 = 2 ea. 18 = 2 ea. - Attach Media Support (Part ) to upper portion base end Insert 6x40mm bolts (Part ) through the 2 holes on the right side of the upper base end. -
Page 6: Step 10: Tilt Mechanism
Step 9: Tool Trough Fastener Parts Needed for this Step : 21 = 4 ea. Attach Tool Trough (Part ) to the front ledge of the Table Top (Part Secure to ledge with [4] 4x12mm screws (Part ). They are self-tapping screws *** Some of the holes are not pre drilled *** Step 10: Tilt Mechanism Fastener Parts Needed for this Step : 26 = 8 ea. -
Page 7: Height Adjustment
Step 12: Board Brace to Base Fastener Parts Needed for this Step : 20 = 2 ea. Attach Board Brace (Part ) to the base using the 6x45mm bolt (Part Secure using the Allen Wrench (Part Step 13: Adjustments HEIGHT ADJUSTMENT: To adjust the height of your table - loosen the knobs on the collars found on the base of the table and lift the table top to desired height. - Page 8 Drawer Assembly Instructions TOP - 1 PIECE INSIDE SECTION - 1 PIECE BOTTOM - 1 PIECE DRAWERS - 3 PIECES WARNING: Read all instructions first before assembling drawers. Once pieces are snapped together they are secured. Assemble your drawers by taking the section [A] and snapping into place - by lining up the tabs with the grooves in the outside edge of section piece [B].
- Page 9 Stool Assembly Instructions : TABLE COMPONENTS : FASTENERS AND TOOLS 6 X 25MM BOLT 6 X 35MM BOLT SEAT STOOL LEG STOOL LEG FOOTRING 4444 Lawton Street, Detroit, MI 48208 USA www.MartinUniversaldesign.com TEL: 313-895-0700 FAX: 313-895-0709 Email: custservmud@gmail.com Begin by taking Part &...
