Creative Table Assembly Instructions:

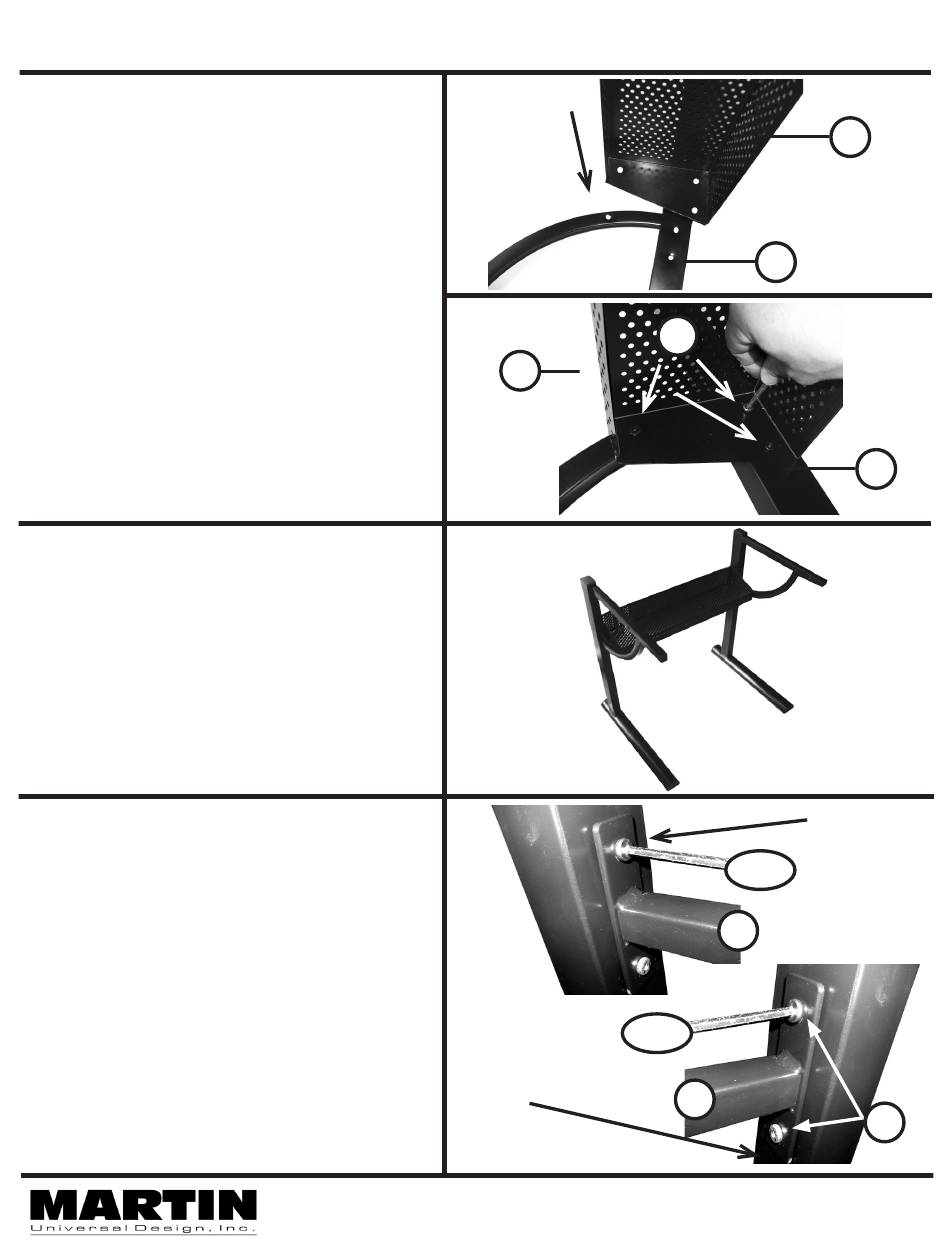

Step 1.
Attachment of Tray to Left & Right Legs
Begin by taking the Left Leg (Part A)
and lay it on a solid soft surface.
Take the Table Tray (Part D) and line up the
[3] holes on the left side of the Tray to the [3]
holes in the middle area of the left leg.
See FIG 1.
Secure with [3] Allen 6x12mm bolts (Part S).
Tighten with Allen Wrench (Part BB)
See FIG 1B.
Repeat with Right Leg (Part B).
The photo to the right is what your table
should look like after attaching the Table
Tray (Part D) to the Left Leg (Part A) and
Right Leg (Part B) See FIG 1C
Step 2.
Attachment of Cross Supports (Part C) to rear
of base assembly and at front of base
assembly.
Take one of the Cross Supports (Part C) and
attach to the Table Base Assembly at the rear
beneath the Tray, by lining up the 2 holes in
the Cross Support to the 2 holes in each Left
& Right Legs. See FIG 2.
Secure with [2] ea Allen Bolts (Part S) per leg.
Tighten with Allen Wrench (Part BB).
See FIG 2.
Martin Universal Design, Inc. • Detroit, MI 48208 USA
Tel: 1-313-895-0700 • E-mail: custservMUD@gmail.com • www.MartinUniversalDesign.com
D
BB
Right
Leg
(Part B)
3
A
S
S
Left Leg
(Part A)
BB
C
C
D
FIG 1
FIG 1B
A
FIG 1C
FIG 2
S
02/28/11 rev. - RPI
