Martin Universal Design Michaels Creative Table 10165131 Assembly Instructions Manual page 4

Creative Table Assembly Instructions:
Step 3.
Attachment of Cross Supports (Part C) to Left
and Right legs continued....

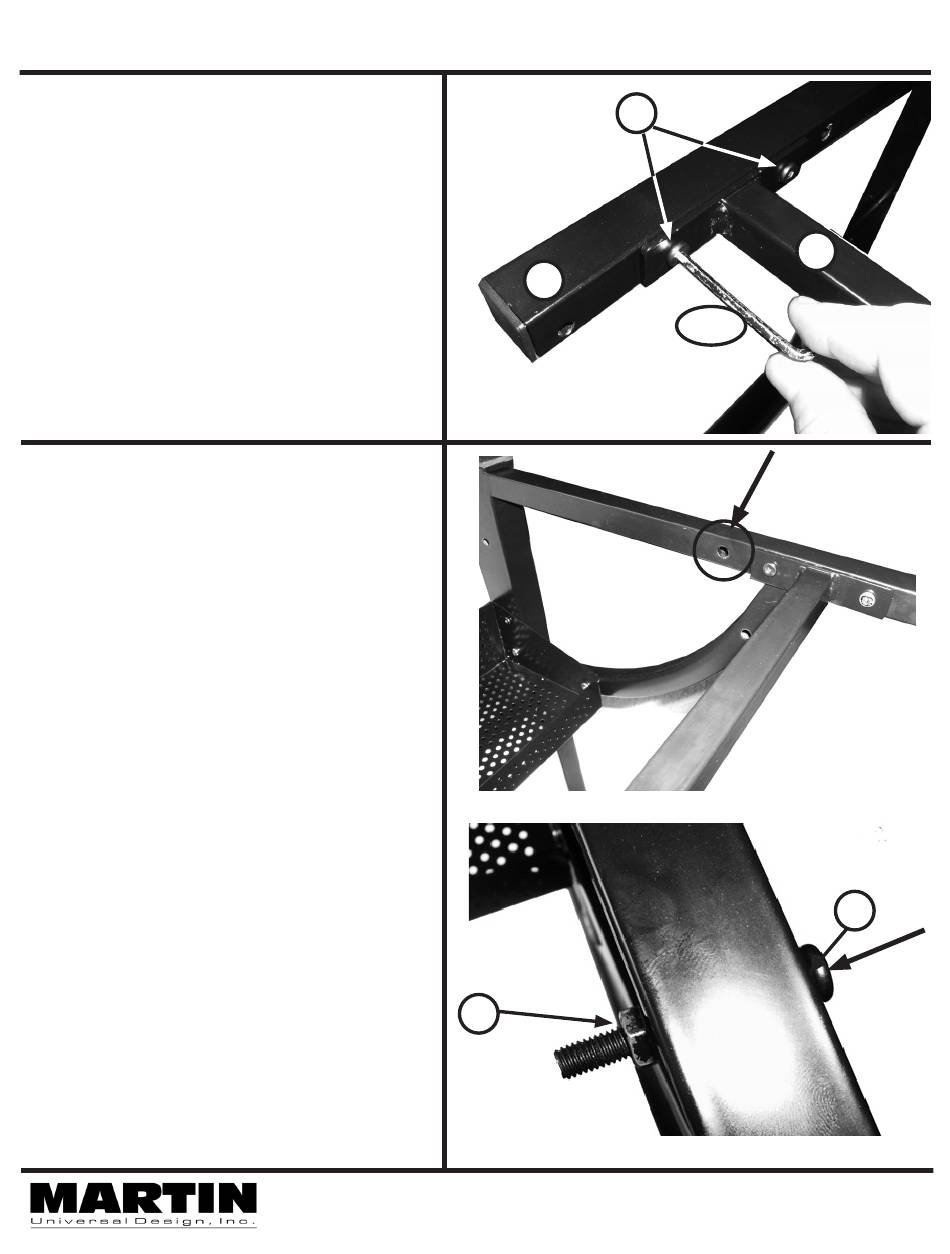

Continue by attaching the 2nd Cross
Support (Part C) to the upper portion of the
Left & Right legs. Secure with 2 ea.
Allen Bolts (Part S) per leg.
Tighten with Allen Wrench (Part BB).
See FIG 3.
Step 4.
Attaching Tilt Mechanisms (Part O) to Base
Assembly.
When attaching the Tilt Mechanisms (Part O)
to the base use the holes found on each leg
as indicated at right in FIG 4
Begin by inserting [1] 6x45mm Allen Bolt
(Part R) through the hole from the outside of
the base, continue by adding [1] Nut
(Part Y) to the end of the bolt and tighten
with supplied wrench. See FIG 4B.
Martin Universal Design, Inc. • Detroit, MI 48208 USA
Tel: 1-313-895-0700 • E-mail: custservMUD@gmail.com • www.MartinUniversalDesign.com
S
FIG 3
A
Y
FIG 4B
4
C
BB
FIG 4
R
02/28/11 rev. - RPI
