Alyssia Craft Table with Tray

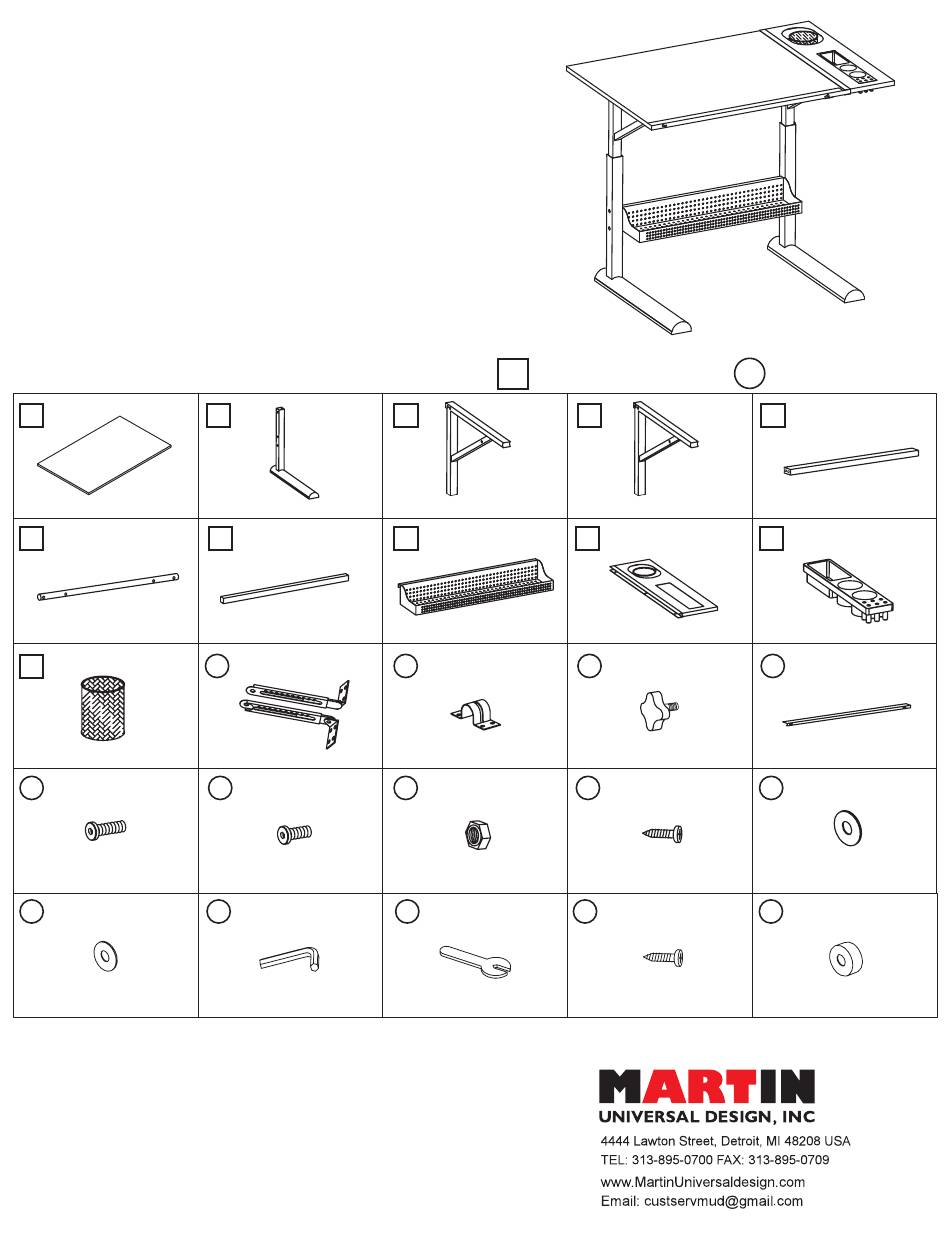

PARTS LIST

A
QTY: 1
Top
F
QTY: 1
Front Support Bar
K
QTY: 1
Cup Holder
P
QTY: 8
6x55mm Bolts
U
QTY: 2
Small Washer
If you have difficulty assembling your table, or need customer service
assistance, please call: Martin Universal Design, Inc. customer service
hotline at 1-313-895-0700, or email at custservmud@gmail.com. If
you need additional parts, it is not necessary to contact your dealer. Our
Customer Serice Representative will forward them to you immediatly.
U-CC83BST
B
QTY: 2
Legs
G
QTY: 2
Lower Support Braces
L
QTY: 2
Tilt Mechanism
Q
QTY: 4
6x50mm Bolts
V
QTY: 1
Allen Wrench
IMPORTANT
= Table Components
C
QTY: 1
Left/Right Upper Support
H
QTY: 1
Metal Shelf
M
QTY: 2
Tilt Bracket
R
QTY: 2
Nut
W
QTY: 1
Wrench
D
QTY: 1
Left/Right Upper Support
I
QTY: 1
Metal Tray
N
QTY: 2
Knobs
S
QTY: 24
5x14mm Screws
X
QTY: 2
4x12mm Screw
Phillips head screwdriver not included.
= Fasteners and Tools
E
QTY: 1
Rear Support Bar
J
QTY: 2
Plastic Tray
O
QTY: 1
Pencil Ledge
T
QTY: 4
Large Washers
Y
QTY: 2
5mm Spacer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alyssia Craft Table with Tray and is the answer not in the manual?

Questions and answers

Summary of Contents for Martin Universal Design Alyssia Craft Table with Tray

  • Page 1 IMPORTANT If you have difficulty assembling your table, or need customer service assistance, please call: Martin Universal Design, Inc. customer service hotline at 1-313-895-0700, or email at custservmud@gmail.com. If you need additional parts, it is not necessary to contact your dealer. Our...
  • Page 2 Step 1 Fig 1 Fig 2 A) Assemble legs (Part B ) with crossbar (Part G ) using 4 ea. 6x55mm Bolts (Part P ). B) See Fig 1 - Insert left/right upper supports (Part C & D ) into leg. Tighten both legs (Part B ) using plastic knobs (Part N ), and Large washers (Part T ) C) Assemble crossbar (Part E ) to both arms using 4 ea.
  • Page 3 Step 2 Fig 2 Fig 1 Fig 3 Fig 4 A) Place table upside down on the top (Part A ). Make sure predrilled holes line up according to the diagram. B) See Fig 1 - Attach tilt mechanisms (Part L ) into predrilled holes on table top (Part A ) using 4 ea.
  • Page 4 Step 3 A) Attach metal shelf (Part H ) to lower crossbar (Part G ) between legs, by tapping it into the grooves. B) Place cup holder (Part K ) and plastic tray (Part J ) into metal side tray. Step 4 A) Attach pencil edge (Part O ) using 2 ea.
  • Page 5 TILT ADJUSTMENT: To adjust the tilt of your table top, grab the back edge of the table top and lift the top with [2] hands to the maximum tilt and then back down to your desired position. NOTE: You must lift the table top all the way up before lowering it to the desired tilt level.
