5.1 General Settings

• Output Period – setting for the period of the output signals
(default Auto-synchronous mode with the transmitter). This
parameter significantly affects the behavior of the servos. For
analog servos the reaction (response) accelerates and the power
consumption is higher when the values for the output period are
lower. This can lead to vibration in some servos if the values are set
too low.
For Cental Box 200:
• Ext1, Ex t3/Pin14, Ext2/P
functions.
JETIBOX – output for connecting JETIBOX, eventually EX
◦
telemetry
Telemetry Input – input for connecting telemetry sensor
◦
Servo output – servo output
◦
For Cental Box 100:
• Ext1 – setting of alternative output functions.
JETIBOX – output for connecting JETIBOX, eventually EX
◦
telemetry
Telemetry Input – input for connecting telemetry sensor
◦
• Shutdown voltage - input voltage level at which the Central
Box automatically turns off. If Central Box measures that the input
voltage is lower than the stop level for more than 60 seconds, it
automatically turns itself off.

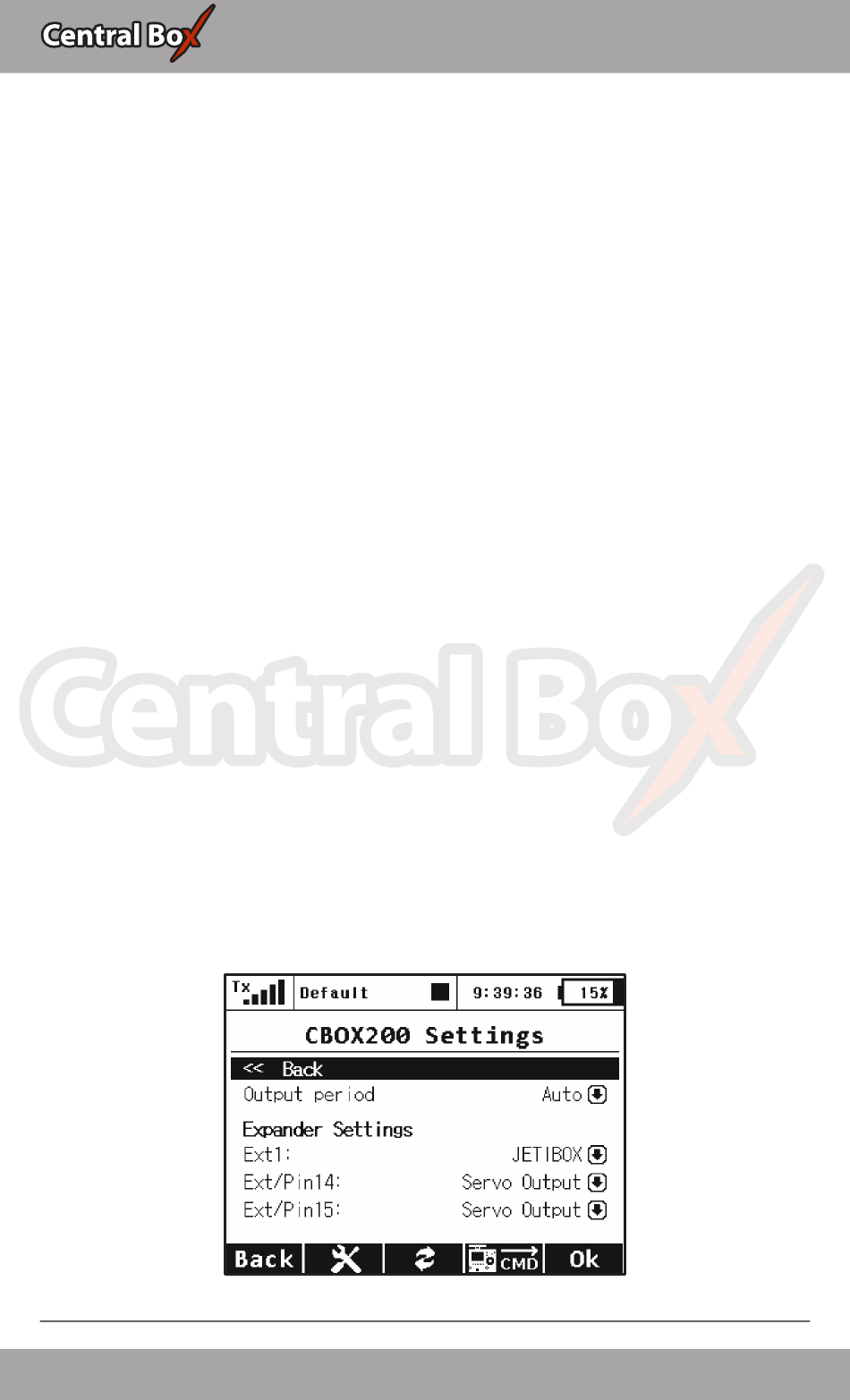

Fig. 15: Device Explorer-General Settings
in15 – setting of alternative output
21 EN
