5.3 Servo Output Mapping

• Servo No. – assigning outputs of the transmitter to the Central
Box outputs (Output pin).
• Group – assigns specific output to the group of output impulses
that will be generated from the receiver in the same time

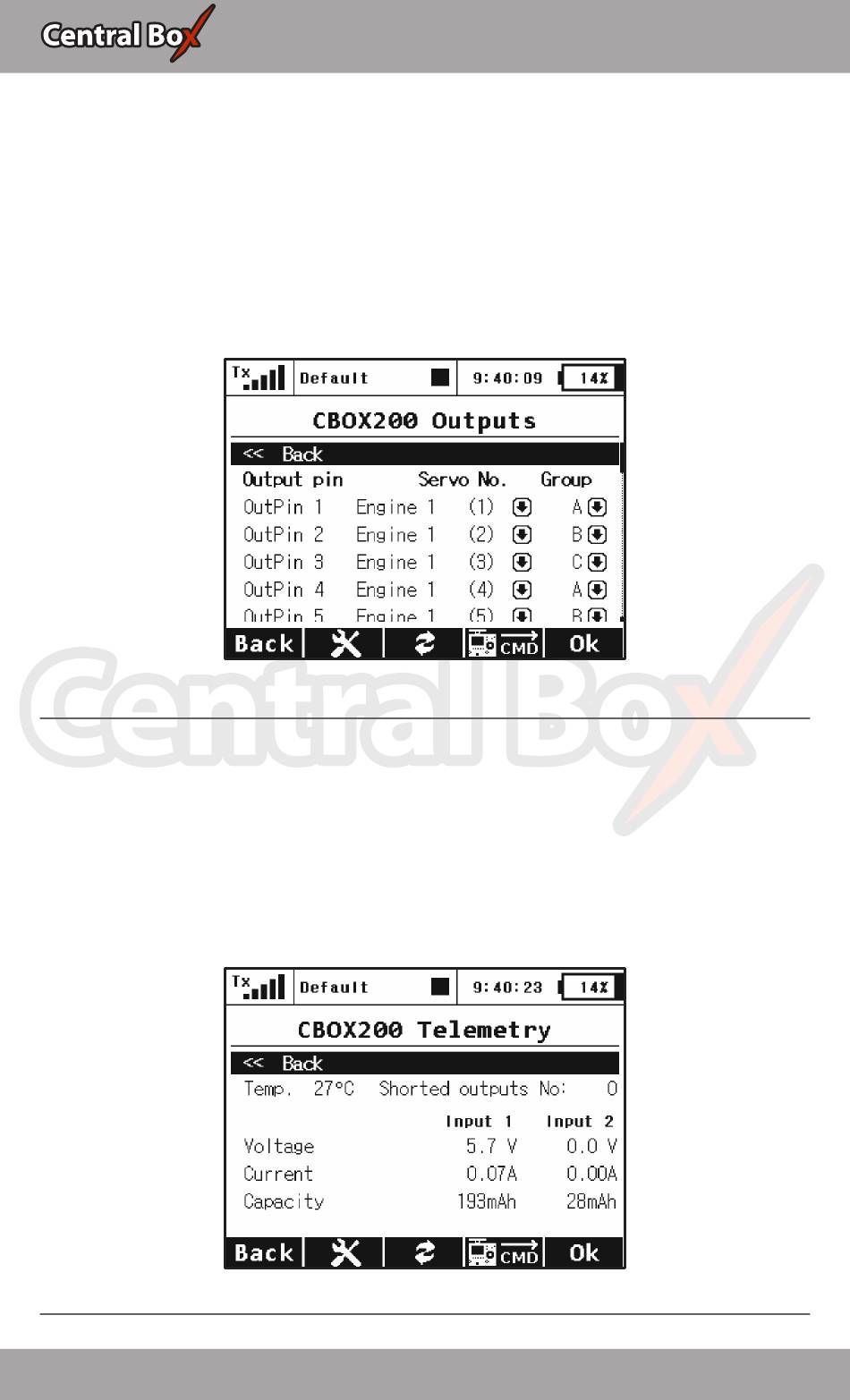

Fig. 17: Device Explorer-Servo Output Mapping

5.4 Telemetry

• Temp. – actual temperature of the Central Box
• Shorted outputs No. – actual number of overloaded outputs
• Voltage – actual voltage of individual outputs of the Central Box
• Current – actual current drawn from the battery
• Capacity – capacity taken from the batteries
Fig. 18: Device Explorer-Telemetry
