Caution: It is not recommended:
- to connect more Central Box outputs to one servo
- to use a Y cable (connecting two servos to one
output)
3.3 Connecting Central Box – PPM variant
The receivers can be connected to the Central Box using the Rx1
and Rx2 inputs.
The Ext1 port is for output of telemetry data from the Central Box in
the form of EX telemetry. To use the Central Box telemetry and other
sensors connected to it, use a Duplex EX receiver. Simply connect
the Central Box output labeled Ext1 with the Duplex EX receiver
input labeled Ext.
Channels 14 and 15 can be configured as servo outputs, or as
inputs for telemetry sensors
Configuring the Central Box is in this way done by using a JETIBOX;
either directly connected to the Central Box, or wirelessly using a
JETI transmitter.
7

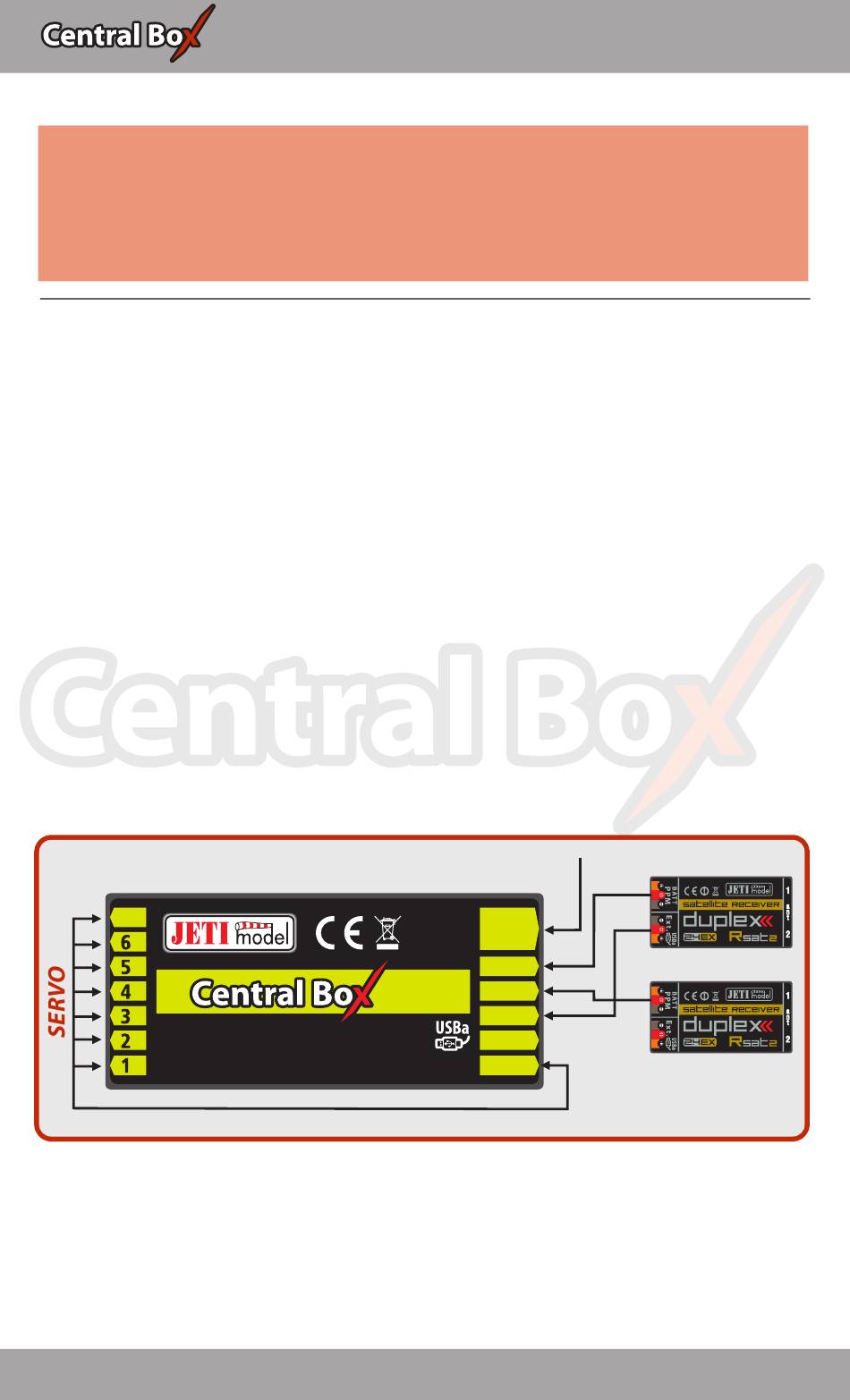

Fig. 9: Block diagram of Central Box 100 connection - PPM variant
( Central Box 200 only)
Input Voltage
8 channel servo interface
input
BATT
voltage
4-14V
Rx 1
100 100
Rx 2
Ext.
Out/In
8
11 EN
.
Rsat2 (Rx1)
PPM
Ext.
Rsat2 (Rx2)
PPM
EN
