RC Switch

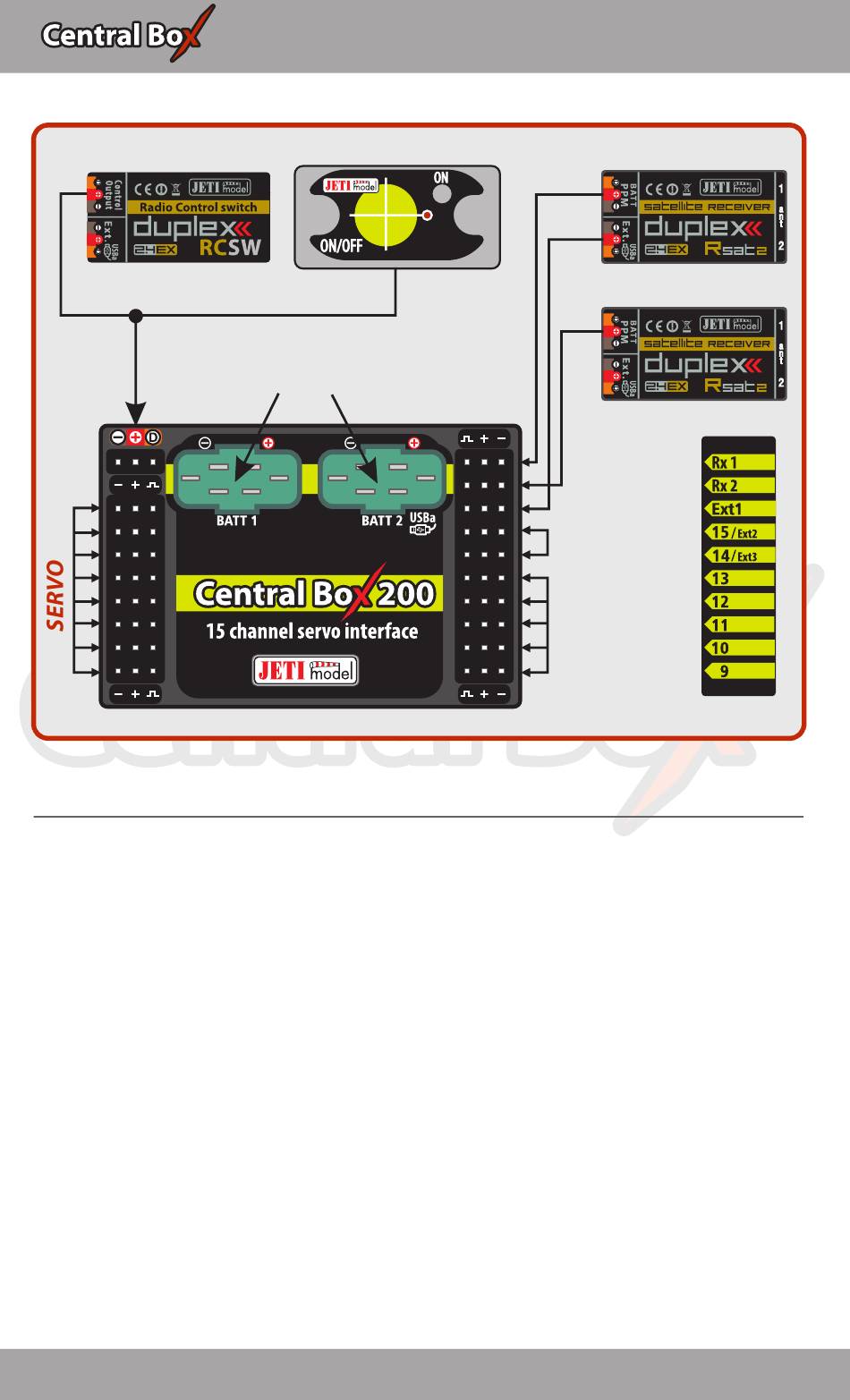

Fig. 10: Block diagram of Central Box 200 connection - PPM variant
3.4 Connecting Central Box – EX Bus variant
Receivers can be connected to the Central Box using the Rx1 and
Rx2 inputs.
Ext1 is an input for telemetry sensor. Telemetry is transmitted to the
receivers via EX Bus.
Channels 14 and 15 can be configured as servo outputs or as
inputs for connecting telemetry sensors
Configuring the Central Box is in this case done directly in the
transmitter via EX Bus.
When operating the Central Box with DC/DS transmitter, it is
recommended to use two receivers communicating with the
transmitter in the wireless mode "Double path".
Magnetic Switch
Input Voltage
input voltage
4-14V
( Central Box 200 only).
12 EN
Rsat2 (Rx1)
PPM
Ext.
Rsat2 (Rx2)
PPM
SERVO/Sensor
SERVO
EN
