Data General AViiON 530 Series Customer Documentation page 74

Setting Up and Installing a SCSI Bus
SCSI Bus Cabling Rules
Controller 0
4.75 ft. internal
bus cable
Controller 1
1 ft. internal
bus cable

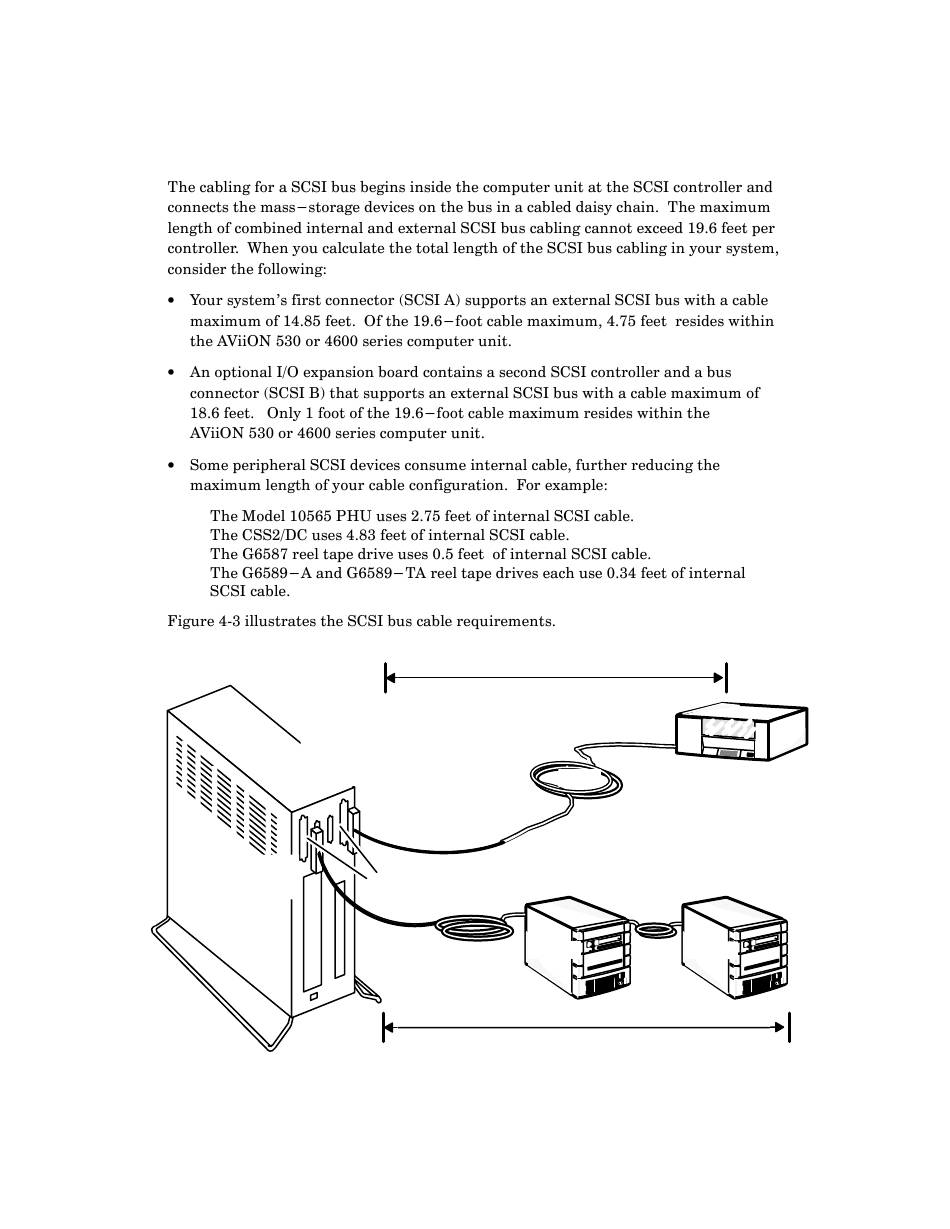

Figure 4-3 Daisy Chain and SCSI Bus Cable Lengths
4-6
SCSI A bus: 4.75 + 10 + .5 = 15.25 feet.
Rear panel
connector(s)
5 ft.
2.75 ft.
SCSI B bus: 1 + 5 + 2.75 + 1.3 + 2.75 = 12.8 feet.
10 ft.
1.3 ft.
2.75 ft.
014–002091
