Replacing the System Board
CPU configuration:
see Figure 10-10
Speaker connector
PROM component
(from original system board)

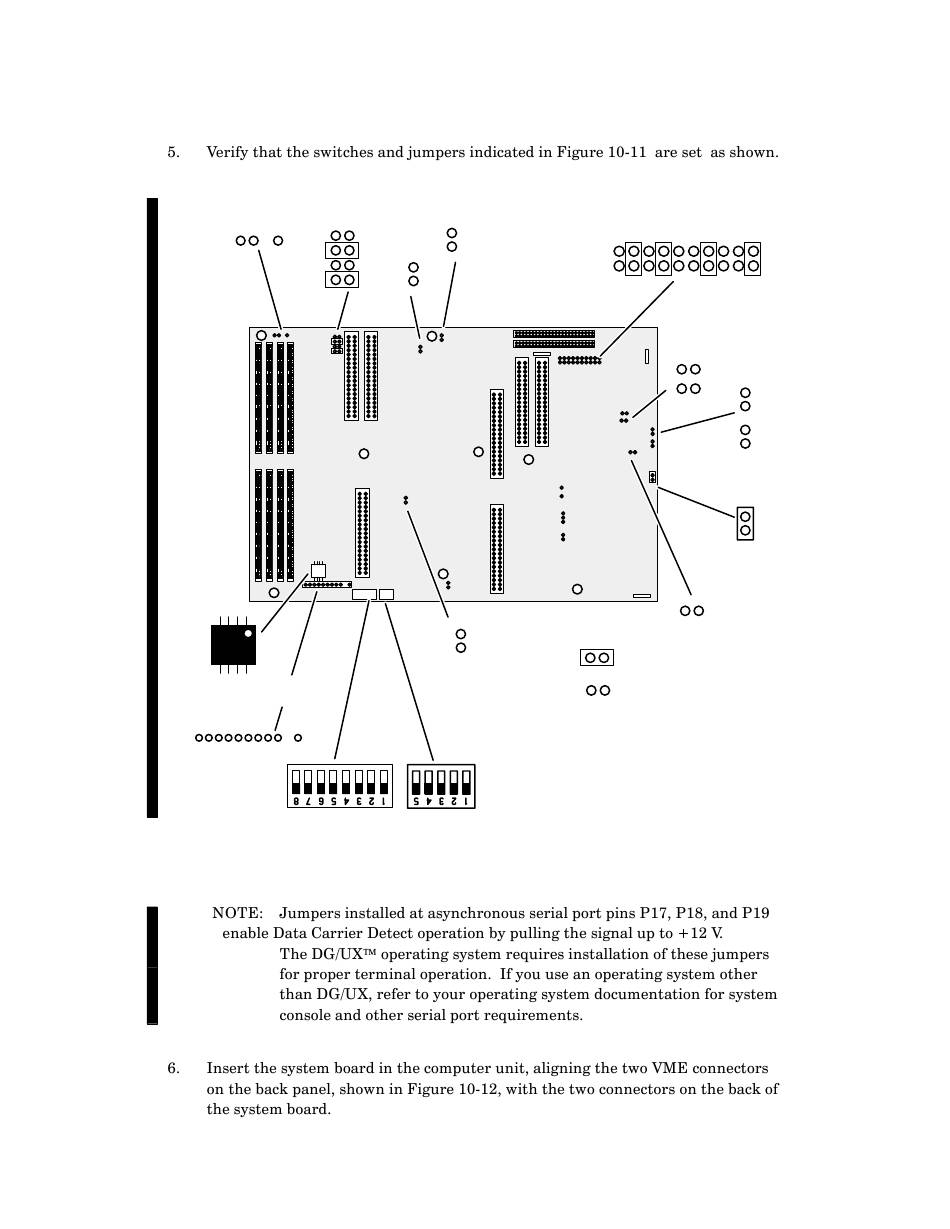

Figure 10-11 AViiON 530 and 4600 Series System Board
10-8
Indicates jumper installed
Indicates jumper removed
VME address switches:
all ON
(C)
P19
(B)
P18
DCD enable:
Ports A, B, and
C
P17
(A)
014–002091
