Replacing the Fan Asembly

Installing the Fan Assembly

Computer unit
(left side cover removed)
Fan assembly power cable
Fan assembly

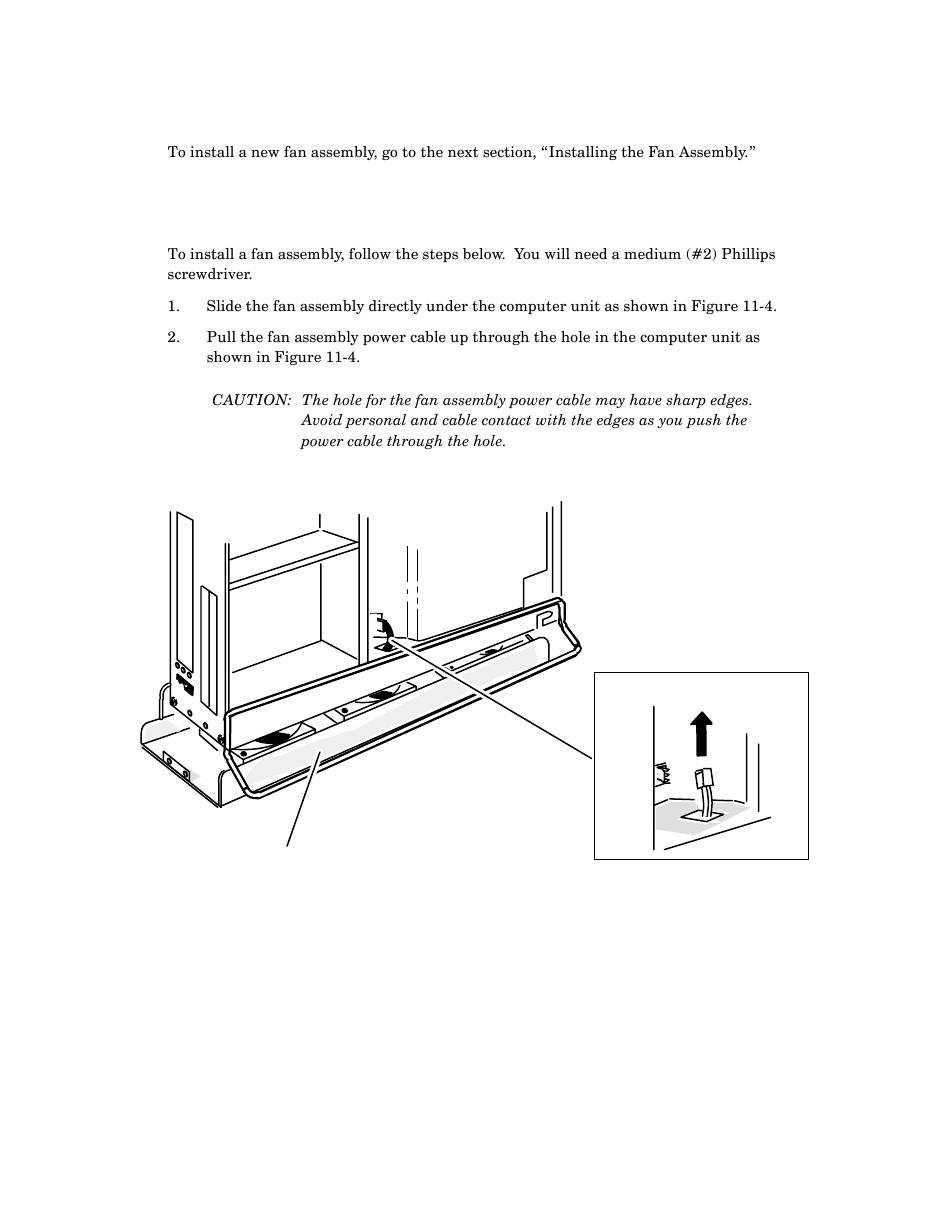

Figure 11-4 Positioning the Fan Assembly Under the Computer Unit
11-3
014–002091
