Chapter 12
Replacing the Power Supply and
Fuses
Removing the Power Supply
Computer unit
(top and left side covers removed)
AC power cable
Fan assembly power cable
Power supply
Pull connector
gently
Release clip

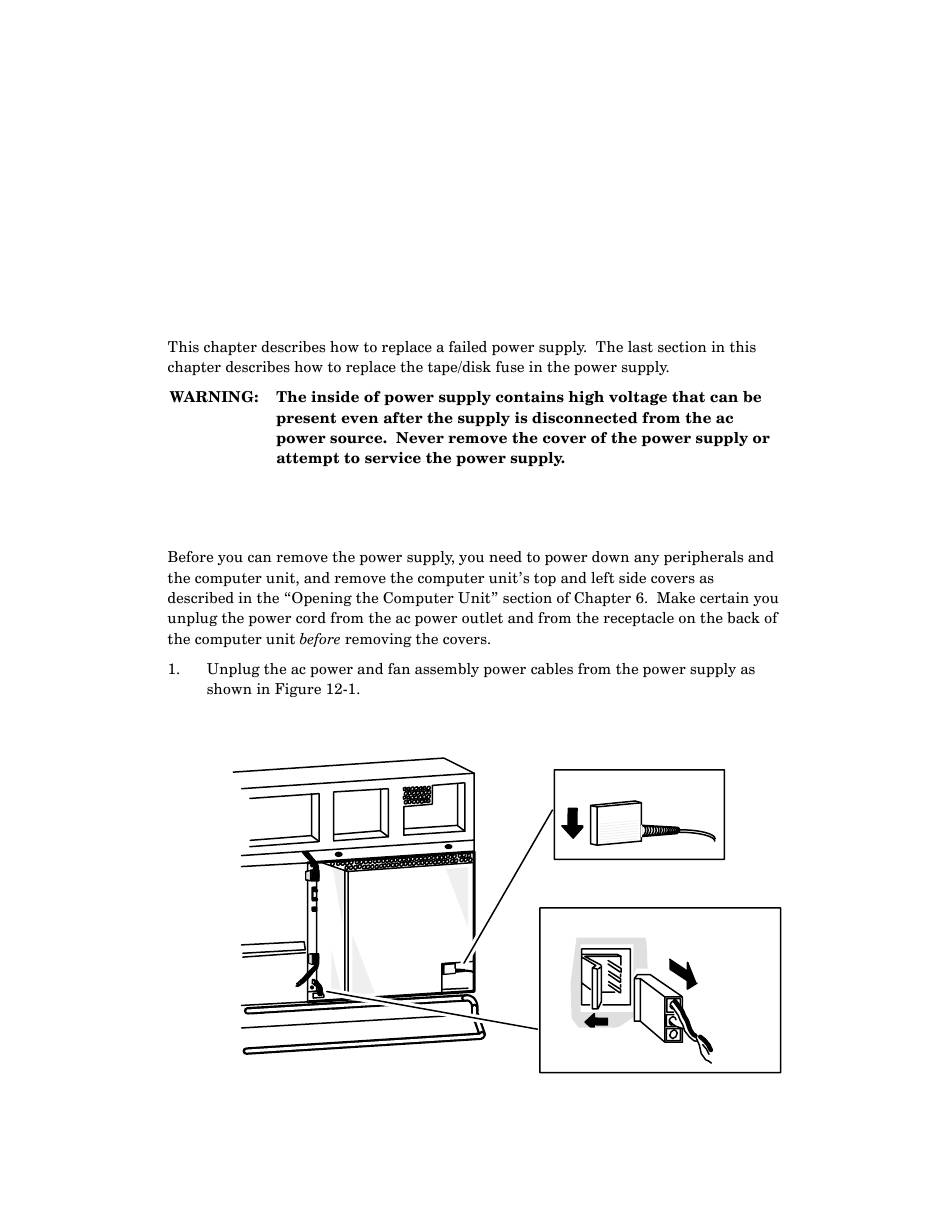

Figure 12-1 Unplugging the AC Power and Fan Assembly Power Cables
12-1
014–002091
