CPU, I/O Expansion, and Graphics Boards
Computer unit (back)
Remove two screws.

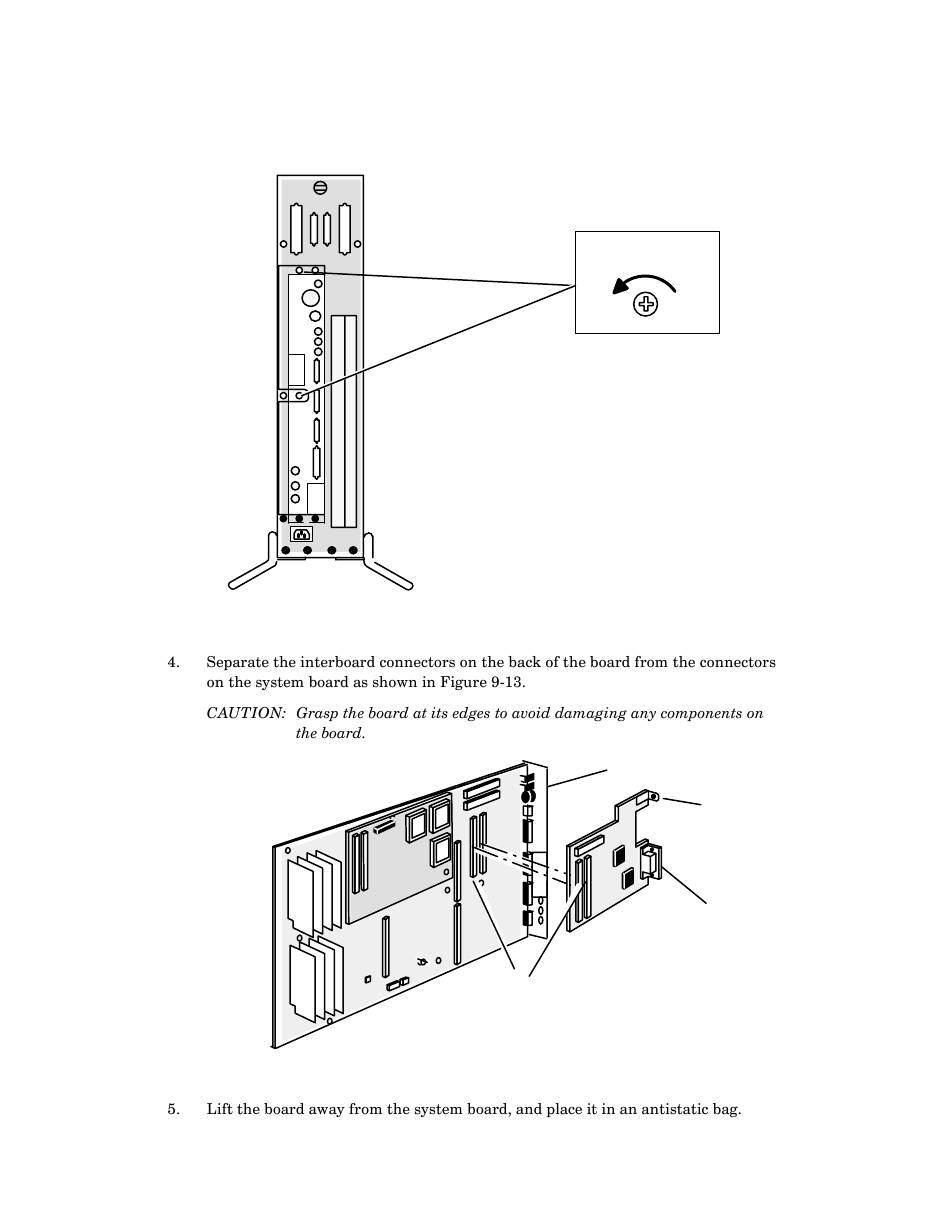

Figure 9-12 Releasing the I/O Expansion Board from the Computer Bulkhead
System board bracket
Expansion
board
bracket
LAN connector
Interboard connectors
Figure 9-13 Separating the Interboard Connectors
9-11
014–002091
