Data General AViiON 530 Series Customer Documentation page 52

Setting Up Your Computer System
Connecting Synchronous Devices
Cable Cable
Device part number model number length (ft.)
COM
Align and secure with screws
Computer Unit
Rear Panel

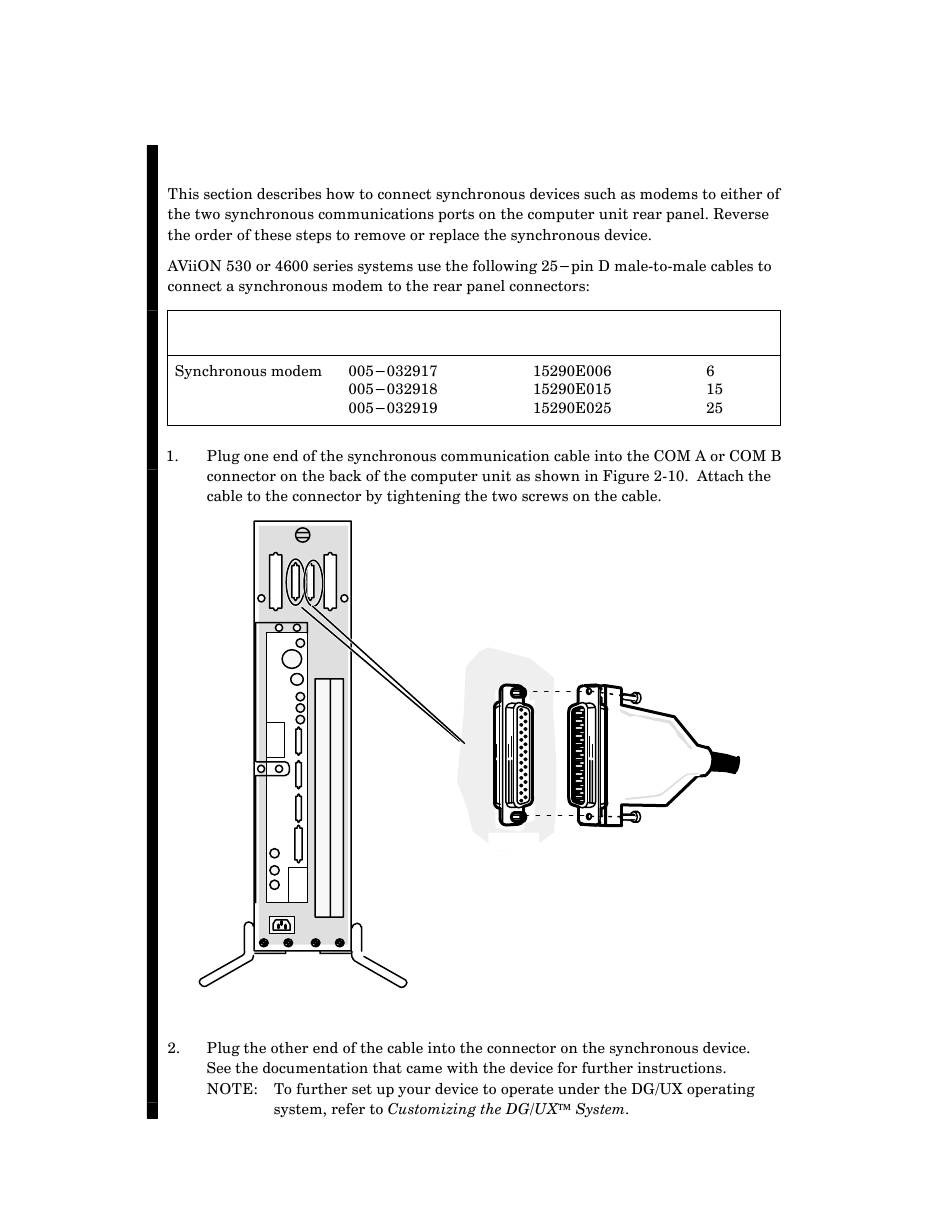

Figure 2-10 Connecting a Synchronous Device to the Computer Unit
