Setting Up Your Computer System
Terminating an Internal SCSI Bus
First SCSI connector
For I/O expansion
SCSI
board (Optional)
Second SCSI connector
(optional)
SCSI
Computer Unit
Rear Panel
A
B

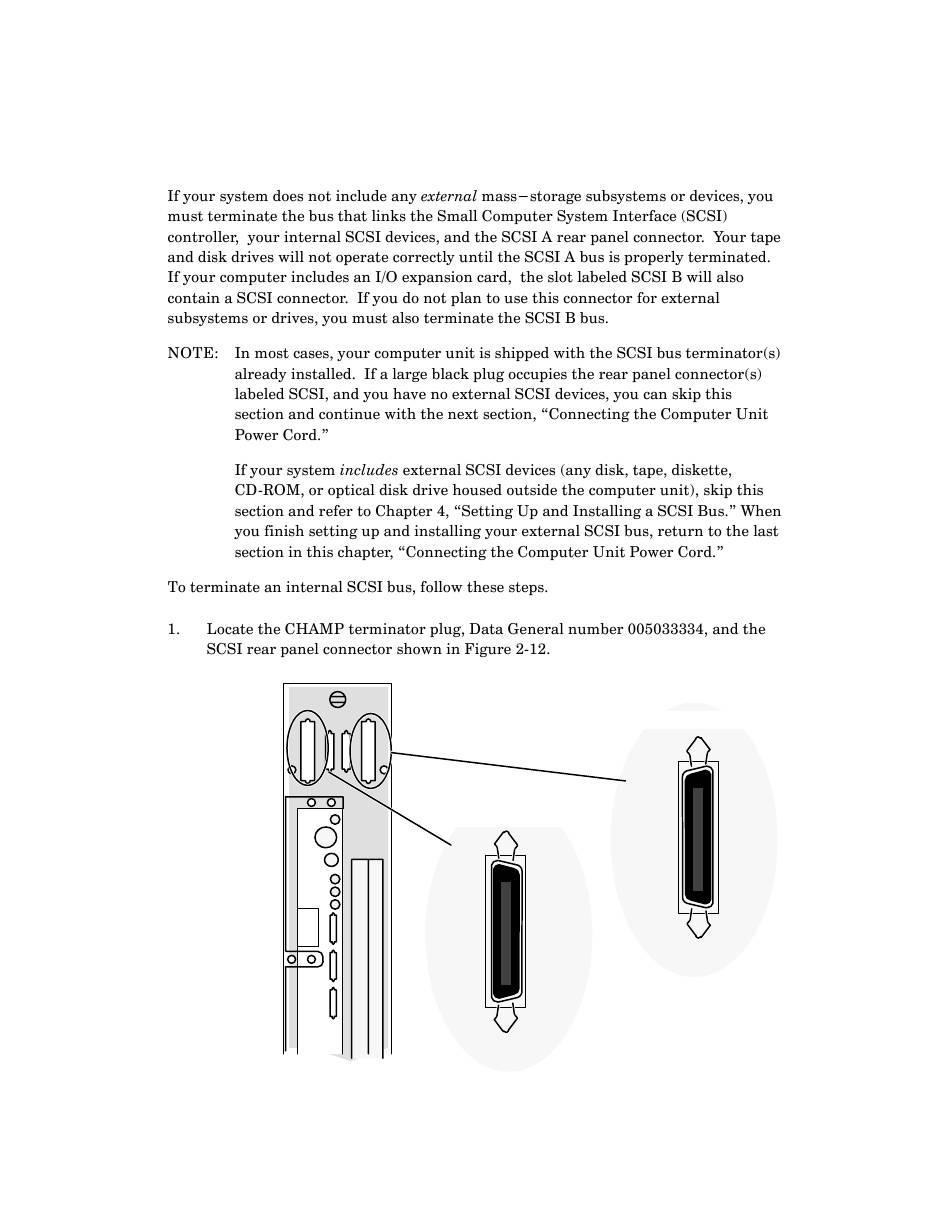

Figure 2-12 AViiON 530 and 4600 Series SCSI Bus Connectors
2-14
014–002091
