CPU, I/O Expansion, and Graphics Boards
System board
Graphics board
Z–buffer board

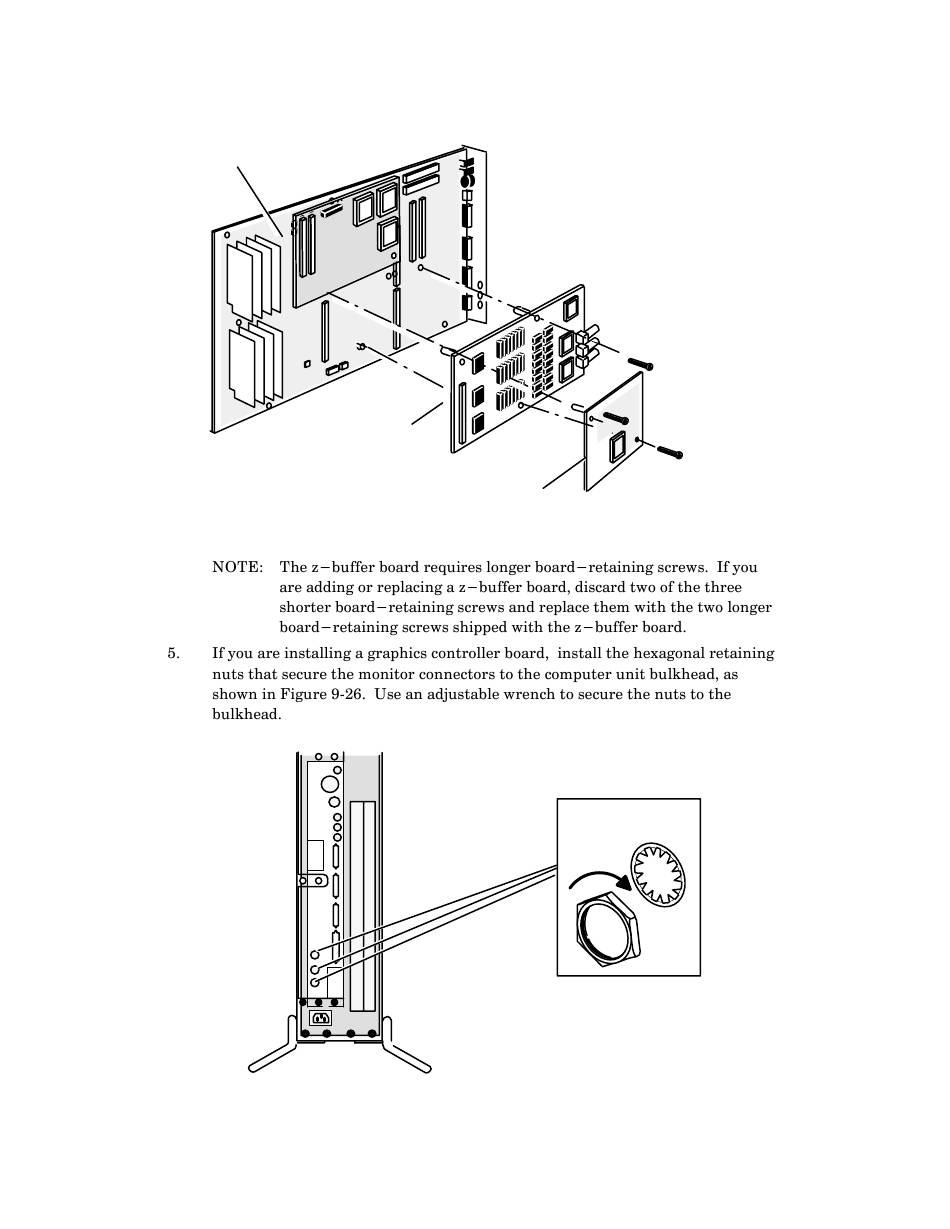

Figure 9-25 Replacing the Board–Retaining Screws
Install washers
and hex nuts
Computer unit (back)
Figure 9-26 Securing Graphics Monitor Connectors to the Computer Bulkhead
9-21
