Chapter 11
Replacing the Fan Assembly
Removing the Fan Assembly
Computer unit
(left side cover removed)
Fan assembly power cable
Pull connector
gently
Release clip
Power supply
Push connector
through hole

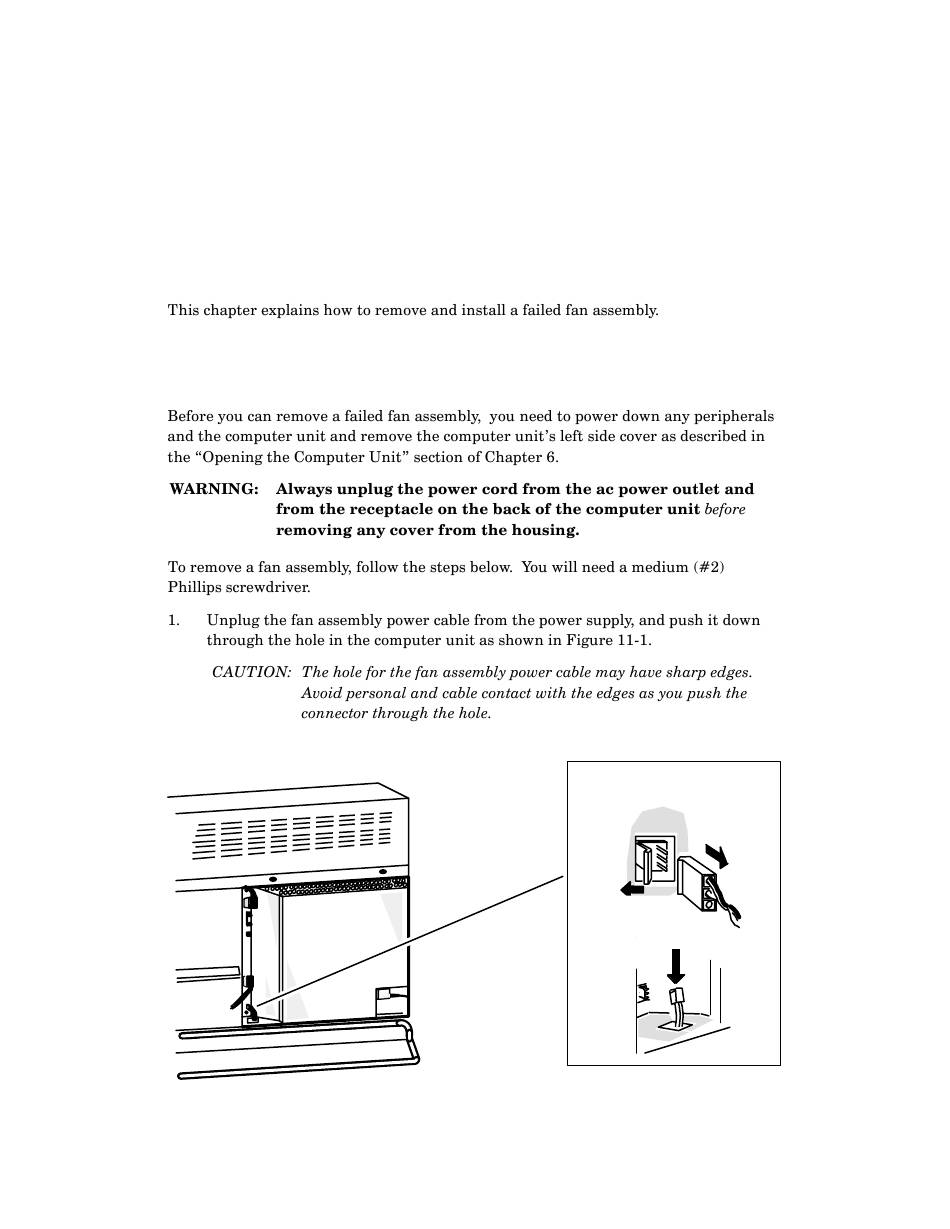

Figure 11-1 Unplugging the Fan Assembly Power Cable from the Power Supply
11-1
014–002091
