Quick Start

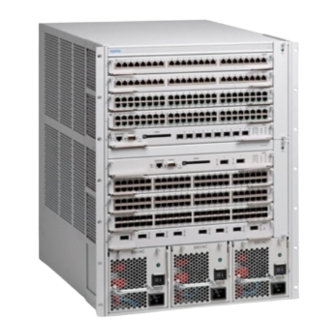

Avaya Ethernet Routing Switch 8300
4.2
NN46200-100, 05.03
May 2011

Advertisement

Table of Contents
loading

Related Manuals for Avaya Ethernet Routing Switch 8300 Series

Summary of Contents for Avaya Ethernet Routing Switch 8300 Series

  • Page 1 Quick Start Avaya Ethernet Routing Switch 8300 NN46200-100, 05.03 May 2011...
  • Page 2 Avaya or the applicable third party. Avaya does not guarantee that these links will work all the time and has no control over the availability of the linked pages.

  • Page 3: Table Of Contents

    Verifying a successful installation........................34 Chapter 6: Configuration......................37 Chapter 7: Customer Service....................41 Getting technical documentation........................41 Getting product training...........................41 Getting help from a distributor or reseller......................41 Getting technical support from the Avaya Web site..................42 Chapter 8: Translation of safety messages................43 Index............................51 Quick Start May 2011...
  • Page 4 Quick Start May 2011...

  • Page 5: Chapter 1: Regulatory Information And Safety Precautions

    Read the information in this section to learn about regulatory conformities and compliances. International Regulatory Statements of Conformity This is to certify that the Avaya 8300 Series chassis and components installed within the chassis were evaluated to the international regulatory standards for electromagnetic...
  • Page 6 CE Marking Statement (Europe only) EN 55 022 Statements This is to certify that the Avaya 8300 Series chassis and components installed within the chassis are shielded against the generation of radio interference in accordance with the application of Council Directive 2004/108/EC. Conformity is declared by the application of EN 55 022 Class A (CISPR 22).
  • Page 7 VCCI Statement (Japan/Nippon only) EN 55 024 Statement This is to certify that the Avaya 8300 Series chassis is shielded against the susceptibility to radio interference in accordance with the application of Council Directive 2004/108/EC. Conformity is declared by the application of EN 55 024 (CISPR 24).
  • Page 8 CE Marking Statement (Europe only) EN 60 950 Statement This is to certify that the Avaya 8300 Series chassis and components installed within the chassis are in compliance with the requirements of EN 60 950 in accordance with the Low Voltage Directive.
  • Page 9 Norma Oficial Méxicana (NOM): Exporter: Avaya Inc. 4655 Great America Parkway Santa Clara CA 95054 USA Importer: Avaya Communication de México, S.A. de C.V. Av. Presidente Masarik 111 Piso 6 Col Chapultepec Morales Deleg. Miguel HIdalgo México D.F.
  • Page 10 Denan Statement (Japan/Nippon only) Safety Messages This section describes the different precautionary notices used in this document. This section also contains precautionary notices that you must read for safe operation of the Avaya Ethernet Routing Switch 8300. Quick Start May 2011...
  • Page 11 ESD-Hinweise bieten Information dazu, wie man die Entladung von statischer Elektrizität und Folgeschäden an Avaya-Produkten verhindert. Electrostatic alert: PRECAUCIÓN ESD (Descarga electrostática) El aviso de ESD brinda información acerca de cómo evitar una descarga de electricidad estática y el daño posterior a los productos Avaya. Quick Start May 2011...
  • Page 12 Schäden an Avaya-Produkten verhindert. Caution: PRECAUCIÓN Los avisos de Precaución brindan información acerca de cómo evitar posibles interrupciones del servicio o el daño a los productos Avaya. Caution: CUIDADO Os avisos de cuidado oferecem informações sobre como evitar possíveis interrupções do serviço ou danos aos produtos da Avaya.
  • Page 13 Avaya products. Warning: AVERTISSEMENT La mention Avertissement fournit des informations sur les moyens de prévenir les risques de blessure lors de la manipulation de produits Avaya. Warning: WARNUNG Warnhinweise bieten Informationen dazu, wie man Personenschäden bei der Arbeit mit Avaya-Produkten verhindert.
  • Page 14 Regulatory Information and Safety Precautions Danger High Voltage Notice Voltage: Danger—High Voltage notices provide information about how to avoid a situation or condition that can cause serious personal injury or death from high voltage or electric shock. Voltage: La mention Danger—Tension élevée fournit des informations sur les moyens de prévenir une situation ou une condition qui pourrait entraîner un risque de blessure grave ou mortelle à...
  • Page 15 Notices Danger Notice Danger: Danger notices provide information about how to avoid a situation or condition that can cause serious personal injury or death. Danger: La mention Danger fournit des informations sur les moyens de prévenir une situation ou une condition qui pourrait entraîner un risque de blessure grave ou mortelle.
  • Page 16 Regulatory Information and Safety Precautions Quick Start May 2011...

  • Page 17: Chapter 2: New In This Release

    Chapter 2: New in this release The following sections detail what's new in Avaya Ethernet Routing Switch 8300 Quick Start, NN46200-100 for Release 4.2: • Features on page 17 • Other changes on page 17 Features This document describes no new features.
  • Page 18 New in this release Quick Start May 2011...

  • Page 19: Chapter 3: Introduction

    Chapter 3: Introduction This document provides basic instructions to install the Ethernet Routing Switch 8300 Series chassis and perform basic configurations. Navigation • Installation preparation on page 21 • Hardware installation on page 25 • Configuration on page 37 Quick Start...
  • Page 20 Introduction Quick Start May 2011...

  • Page 21: Chapter 4: Installation Preparation

    Chapter 4: Installation preparation This section provides basic information about preparing to install the Ethernet Routing Switch 8300 series chassis. Navigation • Hardware installation time requirements on page 21 • Safety precautions on page 22 Hardware installation time requirements The total time required to install ERS 8300 hardware is approximately 20 to 40 minutes, depending on the chassis type, the number and type of modules, the number of power supplies, and so on.

  • Page 22: Safety Precautions

    Installation preparation Safety precautions This section describes the safety precautions which are vital for the handling and installation of the Ethernet Routing Switch 8300. Safety precautions navigation • Personal safety on page 22 • Modules safety on page 23 • Cables and connectors safety on page 23 •...
  • Page 23 (2 to 3 inches per pound [in/ lbs]). For additional information about installing modules, see Avaya Ethernet Routing Switch 8300 Installation — Modules, NN46200-305. Cables and connectors safety...
  • Page 24 Installation preparation - When installing or replacing cables, follow appropriate fiber-cleaning procedures. Electrostatic discharge safety ESD is the transfer of charge between bodies at different electrical potentials. ESD can change the electrical characteristics of a semiconductor device and degrade or destroy it. ESD can also disrupt the normal operation of an electronic system by causing equipment malfunction or failure.

  • Page 25: Chapter 5: Hardware Installation

    2. Place the chassis on antistatic material. 3. Check all items for damage. Important: If you find any damage, contact your Avaya sales representative. 4. Use the following chassis shipping accessories checklist to verify the contents of the shipping container.

  • Page 26: Removing A Module Or A Power Supply Filler Panel

    Removing a module or a power supply filler panel Remove any filler panels prior to installing the chassis to make it lighter to install. Avaya ships 8300 series chassis with a filler panel covering each empty module slot. Procedure steps 1.

  • Page 27: Installing The 8306 Or 8310 Chassis Into The Rack

    Installing the 8306 or 8310 chassis into the rack Installing the 8306 or 8310 chassis into the rack Install and mount the 8306 or 8310 chassis into the rack. For more information about chassis installation, see Avaya Ethernet Routing Switch 8300 Installation — Chassis, NN46200-305. Procedure steps 1.

  • Page 28: Installing The Cable Guides For The 8306 And 8310 Chassis

    Hardware installation 3. To insert the chassis in a standard equipment rack (19-inch), hold the chassis in position and align the flanged end of each mounting rail with the two holes on each side of the vertical rack support. 4. Insert and tighten the rack-mounting screws with a Phillips screwdriver. Installing the cable guides for the 8306 and 8310 chassis Install the cable guides to keep cable clusters fastened, out of the way, and accessible for maintenance.

  • Page 29: Installing A Module

    The 8306 chassis provides four slots for installing interface modules and two slots for installing SF/CPU modules. Slots are numbered from top down. For more information about module installation, see Avaya Ethernet Routing Switch 8300 Installation — Modules, NN46200-305. You can install an Ethernet Routing Switch 8300 module with the power on or off.

  • Page 30: Installing A Power Supply Module

    Installing AC power supply modules Install the AC modules in the left-most bay to supply AC power to the modules. For more information about installing AC power supply modules, see Avaya Ethernet Routing Switch 8300 Installation — AC Power Supply, NN46200-301.
  • Page 31 • Ensure the filler panel or cover is removed from the power bay. Important: Avaya does not supply the cables for connecting the DC power supply to the DC input power source. Select cables that comply with the electrical code of the country where you use the DC power supply.
  • Page 32 Hardware installation 5. Record the positions of the ground stud and the positive and negative power inputs. Important: Make sure the +DC cable is always connected to the positive terminal and that the -DC cable is always connected to the negative terminal. Voltage: Risk of injury by electric shock Before you continue with this procedure, ensure that the DC power source is...

  • Page 33: Installing A Pcmcia Software Card

    LED power supply on page 34 Turning on AC power supplies Turn on an Ethernet Routing Switch 8300 Series chassis with an AC power supply. Procedure steps 1. Verify that the AC power cords are connected to AC power outlets.

  • Page 34: Verifying A Successful Installation

    Hardware installation Turning on DC power supplies Turn on an Ethernet Routing Switch 8300 Series chassis with a DC power supply. Procedure steps 1. Turn the power switch on each DC power supply to the on position. If your chassis contains two or three power supplies, turn on the power supplies simultaneously.
  • Page 35 Verifying a successful installation • Upon successful completion of the self-test (within 2 or 3 minutes after power is applied to a fully loaded chassis), the module Online LED transitions from amber to green. • After one minute of operation, the fan tray Pass LED lights remain green. •...
  • Page 36 Hardware installation Quick Start May 2011...

  • Page 37: Chapter 6: Configuration

    Connect a VT-100 terminal or a personal computer to the console port on a 8393 or 8394 switch fabric/central processing unit (SF/CPU) module to establish a local command line reference (CLI), Avaya Command Line Reference (ACLI) or Device Manager session. Prerequisites You must have a serial console cable with a nine-pin receptable connector.
  • Page 38 5. Restart the switch. To customize your switch configuration, see Avaya Ethernet Routing Switch 8300 Release Notes — Software Release 4.1, NN46200-401 for a list of Avaya Ethernet Routing Switch 8300 documents and information about the latest features. Job aid: Setup utility prompt descriptions The following table describes the setup utility prompts.
  • Page 39 Configuring the system using the setup utility Table 3: Setup utility prompt descriptions Prompt Action Please provide primary config- Press Enter to accept the default (/flash/config.cfg), or file path [/flash/config.cfg]: enter a different file name for the primary configuration file. To store the configuration file on the PCMCIA card, use / pcmcia/config.cfg.
  • Page 40 Configuration Prompt Action IP Address for mgmt port in Enter the IP address of the management port in the second second CPU Slot CPU slot. [0.0.0.0/0.0.0.0]: IP Address for mgmt-virtual-ip Enter the IP address of the virtual management port. [0.0.0.0/0.0.0.0]: Accept the default, 0.0.0.0/0.0.0.0, if you do not want to specify an IP address.

  • Page 41: Chapter 7: Customer Service

    Chapter 7: Customer Service Visit the Avaya Web site to access the complete range of services and support that Avaya provides. Go www.avaya.com or go to one of the pages listed in the following sections. Navigation • Getting technical documentation on page 41 •...

  • Page 42: Getting Technical Support From The Avaya Web Site

    Customer Service Getting technical support from the Avaya Web site The easiest and most effective way to get technical support for Avaya products is from the Avaya Technical Support Web site at www.avaya.com/support. Quick Start May 2011...

  • Page 43: Chapter 8: Translation Of Safety Messages

    Chapter 8: Translation of safety messages Harmful interference caution statement Caution: This device is a Class A product. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users are required to take appropriate measures necessary to correct the interference at their own expense.
  • Page 44 Translation of safety messages Caution: ATTENZIONE Questo dispositivo è un prodotto di Classe A. Il funzionamento di questo apparecchio in aree residenziali potrebbe causare interferenze dannose, nel cui caso agli utenti verrà richiesto di adottare tutte le misure necessarie per porre rimedio alle interferenze a proprie spese.
  • Page 45 Laser injury caution statement Risco de danos ao equipamento Para evitar danos com descarga eletrostática, sempre use uma pulseira antiestática que esteja conectada a uma tomada ESD. Caution: ATTENZIONE Rischio di danni all'apparecchio Per evitare danni derivanti da scariche elettrostatiche, indossare sempre un polsino antistatico collegato a una presa ESD.
  • Page 46 Translation of safety messages El equipo de fibra óptica puede emitir una luz láser o infrarroja que dañe sus ojos. Nunca mire un puerto de fibra óptica o conector. Siempre asuma que los cables de fibra óptica están conectados a una fuente de luz. Warning: AVISO O laser pode causar ferimentos no olho...
  • Page 47 Personal injury warning statement Caution: PRECAUCIÓN No mezcle los tipos de fuente de alimentación de los chasis 8306 y 8310. Todos los módulos 8348TX-PWR y 8348GTX-PWR PoE instalados pierden la energía PoE cuando el chasis detecta la existencia de fuentes de energía mixtas. Caution: CUIDADO Não misture os tipos de fontes de alimentação no chassi do 8306 ou do 8310.
  • Page 48 Translation of safety messages Greifen Sie das Gehäuse des Lüfters vorne in der Mitte, und achten Sie darauf, dass Ihre Finger nicht zwischen die Blätter des Lüfters geraten. Warning: ADVERTENCIA Riesgo de lesiones Sostenga la bandeja del ventilador en la mitad del panel delantero y tenga cuidado de mantener los dedos alejados de las aspas.
  • Page 49 Power source danger statement Voltage: GEFAHR Verletzungsrisiko durch Stromschlag Es besteht ein Sicherheitsrisiko, wenn die Anschlussstücke nicht ordnungsgemäß auf die Kabel geklemmt werden. Voltage: PELIGRO Riesgo de lesiones por choques eléctricos Para evitar riesgos, pliegue correctamente hacia adentro los terminales de los cables. Voltage: PERIGO Risco de ferimento por choque elétrico...
  • Page 50 Translation of safety messages Voltage: GEFAHR Verletzungsrisiko durch Stromschlag Bevor Sie dieses Verfahren fortsetzen, stellen Sie sicher, dass die Stromquelle für Wechselstrom ausgeschaltet ist. Voltage: PELIGRO Riesgo de lesión por electrocución Antes de continuar con este proceso, asegúrese de que la fuente de alimentación de CC esté...

  • Page 51: Index

    Index cable, serial ..............Install chassis Chassis ..............verifying a successful installation ......Chassis Installing a module ..........power-up sequence ............ Installing cable guides .......... Precautions ..............Installing in rack ........... Protecting removing a module ..........cables and connectors ......... removing a power supply filler panel ....
