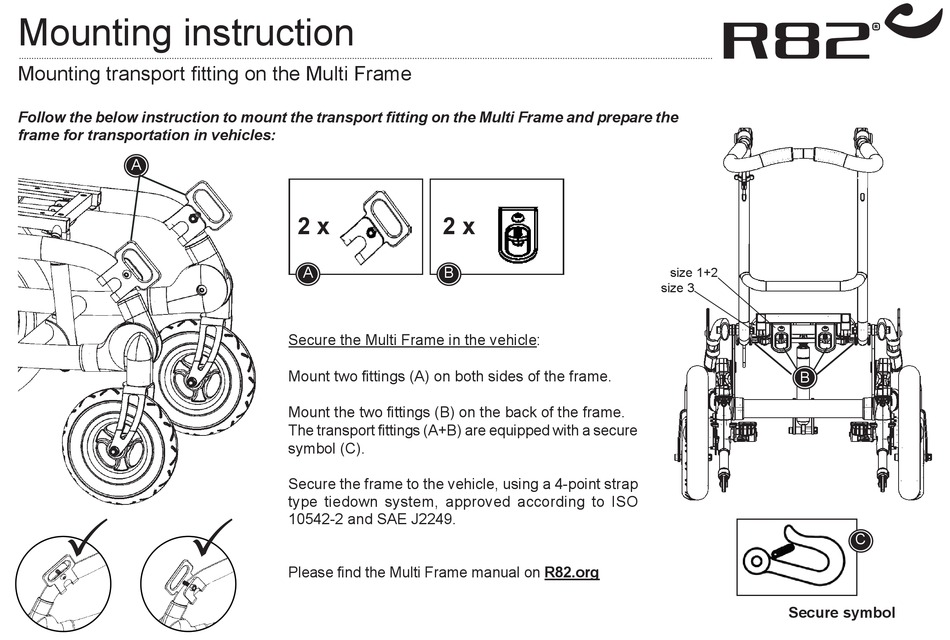

Mounting instruction

Mounting transport fitting on the Multi Frame
Follow the below instruction to mount the transport fitting on the Multi Frame and prepare the
frame for transportation in vehicles:
A
 
2 x 2 x
A B
Secure the Multi Frame in the vehicle:
Mount two fittings (A) on both sides of the frame.
Mount the two fittings (B) on the back of the frame.
The transport fittings (A+B) are equipped with a secure
symbol (C).
Secure the frame to the vehicle, using a 4-point strap
type tiedown system, approved according to ISO
10542-2 and SAE J2249.
Please find the Multi Frame manual on R82.org
size 1+2
size 3
B
Secure symbol
