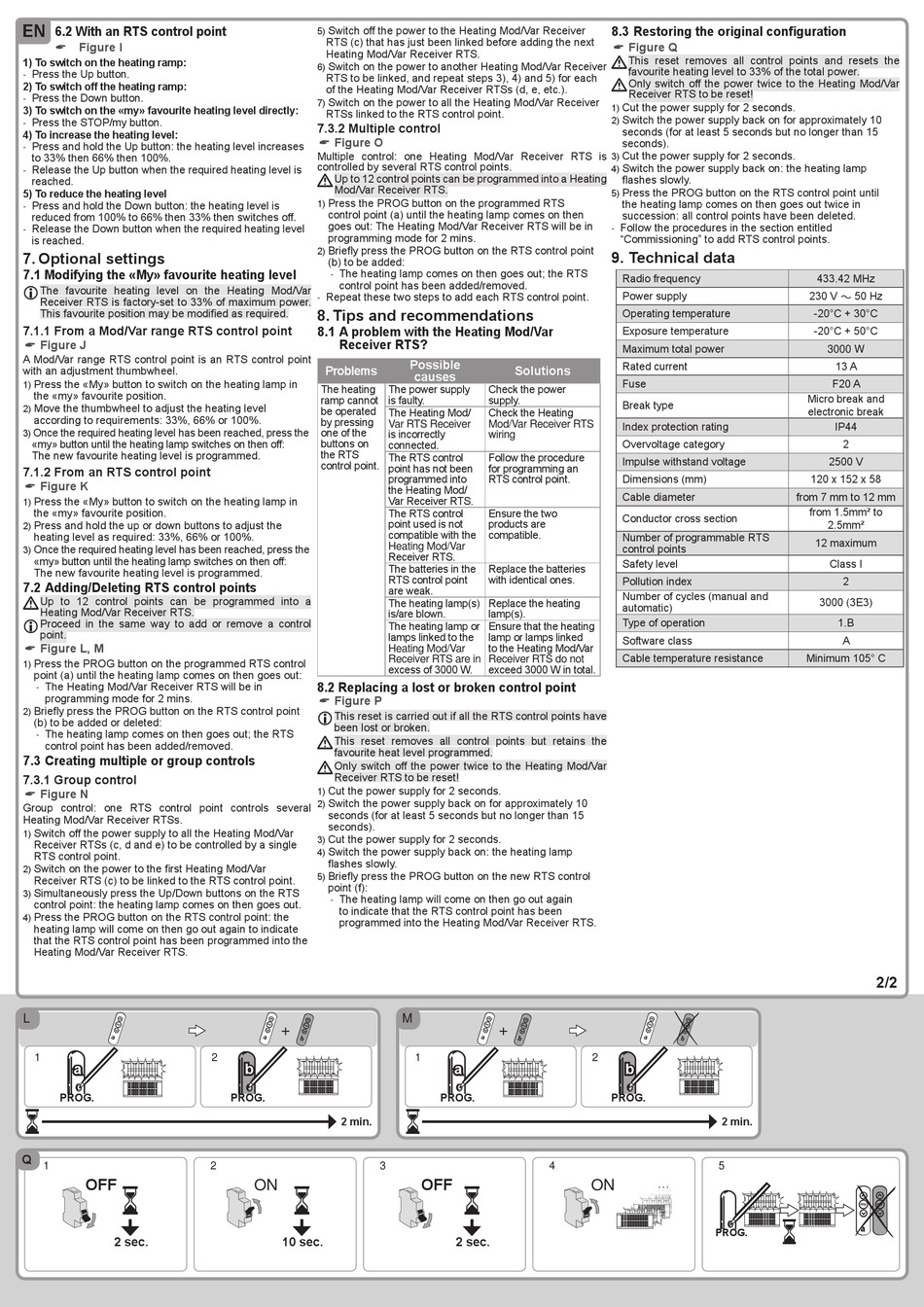

Optional Settings; Tips And Recommendations; Technical Data - SOMFY Heating Mod/Var Receiver RTS Installation Manual

EN
6.2 With an RTS control point
$ Figure I
1) To switch on the heating ramp:
Press the Up button.
-
2) To switch off the heating ramp:
Press the Down button.
-
3) To switch on the «my» favourite heating level directly:
Press the STOP/my button.
-
4) To increase the heating level:
Press and hold the Up button: the heating level increases
-
to 33% then 66% then 100%.
Release the Up button when the required heating level is
-
reached.
5) To reduce the heating level
Press and hold the Down button: the heating level is
-
reduced from 100% to 66% then 33% then switches off.
Release the Down button when the required heating level
-
is reached.

7. Optional settings

7.1 Modifying the «My» favourite heating level
The favourite heating level on the Heating Mod/Var
Receiver RTS is factory-set to 33% of maximum power.
This favourite position may be modified as required.
7.1.1 From a Mod/Var range RTS control point
$ Figure J
A Mod/Var range RTS control point is an RTS control point
with an adjustment thumbwheel.
Press the «My» button to switch on the heating lamp in
1)
the «my» favourite position.
Move the thumbwheel to adjust the heating level
2)
according to requirements: 33%, 66% or 100%.
Once the required heating level has been reached, press the
3)
«my» button until the heating lamp switches on then off:
The new favourite heating level is programmed.
7.1.2 From an RTS control point
$ Figure K
Press the «My» button to switch on the heating lamp in
1)
the «my» favourite position.
Press and hold the up or down buttons to adjust the
2)
heating level as required: 33%, 66% or 100%.
Once the required heating level has been reached, press the
3)
«my» button until the heating lamp switches on then off:
The new favourite heating level is programmed.
7.2 Adding/Deleting RTS control points
Up to 12 control points can be programmed into a
Heating Mod/Var Receiver RTS.
Proceed in the same way to add or remove a control
point.
$ Figure L, M
Press the PROG button on the programmed RTS control
1)
point (a) until the heating lamp comes on then goes out:
The Heating Mod/Var Receiver RTS will be in
-
programming mode for 2 mins.
Briefly press the PROG button on the RTS control point
2)
(b) to be added or deleted:
The heating lamp comes on then goes out; the RTS
-
control point has been added/removed.
7.3 Creating multiple or group controls
7.3.1 Group control
$ Figure N
Group control: one RTS control point controls several
Heating Mod/Var Receiver RTSs.
Switch off the power supply to all the Heating Mod/Var
1)
Receiver RTSs (c, d and e) to be controlled by a single
RTS control point.
Switch on the power to the first Heating Mod/Var
2)
Receiver RTS (c) to be linked to the RTS control point.
Simultaneously press the Up/Down buttons on the RTS
3)
control point: the heating lamp comes on then goes out.
Press the PROG button on the RTS control point: the
4)
heating lamp will come on then go out again to indicate
that the RTS control point has been programmed into the
Heating Mod/Var Receiver RTS.
L
1
a
PROG.
Q
1
OFF
2 sec.
Switch off the power to the Heating Mod/Var Receiver
5)
RTS (c) that has just been linked before adding the next
Heating Mod/Var Receiver RTS.
Switch on the power to another Heating Mod/Var Receiver
6)
RTS to be linked, and repeat steps 3), 4) and 5) for each
of the Heating Mod/Var Receiver RTSs (d, e, etc.).
Switch on the power to all the Heating Mod/Var Receiver
7)
RTSs linked to the RTS control point.
7.3.2 Multiple control
$ Figure O
Multiple control: one Heating Mod/Var Receiver RTS is
controlled by several RTS control points.
Up to 12 control points can be programmed into a Heating
Mod/Var Receiver RTS.
Press the PROG button on the programmed RTS
1)
control point (a) until the heating lamp comes on then
goes out: The Heating Mod/Var Receiver RTS will be in
programming mode for 2 mins.
Briefly press the PROG button on the RTS control point
2)
(b) to be added:
The heating lamp comes on then goes out; the RTS
-
control point has been added/removed.
Repeat these two steps to add each RTS control point.
-

8. Tips and recommendations

8.1 A problem with the Heating Mod/Var
Receiver RTS?
Problems
The heating
ramp cannot
be operated
by pressing
one of the
buttons on
the RTS
control point.
8.2 Replacing a lost or broken control point
$ Figure P
This reset is carried out if all the RTS control points have
been lost or broken.
This reset removes all control points but retains the
favourite heat level programmed.
Only switch off the power twice to the Heating Mod/Var
Receiver RTS to be reset!
Cut the power supply for 2 seconds.
1)
Switch the power supply back on for approximately 10
2)
seconds (for at least 5 seconds but no longer than 15
seconds).
Cut the power supply for 2 seconds.
3)
Switch the power supply back on: the heating lamp
4)
flashes slowly.
Briefly press the PROG button on the new RTS control
5)
point (f):
The heating lamp will come on then go out again
-
to indicate that the RTS control point has been
programmed into the Heating Mod/Var Receiver RTS.
+
2
b
PROG.
2 min.
2 3
ON
10 sec.
Possible
Solutions
causes
The power supply Check the power
is faulty. supply.
The Heating Mod/ Check the Heating
Var RTS Receiver Mod/Var Receiver RTS
is incorrectly wiring
connected.
The RTS control Follow the procedure
point has not been for programming an
programmed into RTS control point.
the Heating Mod/
Var Receiver RTS.
The RTS control Ensure the two
point used is not products are
compatible with the compatible.
Heating Mod/Var
Receiver RTS.
The batteries in the Replace the batteries
RTS control point with identical ones.
are weak.
The heating lamp(s) Replace the heating
is/are blown. lamp(s).
The heating lamp or Ensure that the heating
lamps linked to the lamp or lamps linked
Heating Mod/Var to the Heating Mod/Var
Receiver RTS are in Receiver RTS do not
excess of 3000 W. exceed 3000 W in total.
M
+
1
a
PROG.
4
OFF
2 sec.
8.3 Restoring the original configuration
$ Figure Q
This reset removes all control points and resets the
favourite heating level to 33% of the total power.
Only switch off the power twice to the Heating Mod/Var
Receiver RTS to be reset!
Cut the power supply for 2 seconds.
1)
Switch the power supply back on for approximately 10
2)
seconds (for at least 5 seconds but no longer than 15
seconds).
Cut the power supply for 2 seconds.
3)
Switch the power supply back on: the heating lamp
4)
flashes slowly.
Press the PROG button on the RTS control point until
5)
the heating lamp comes on then goes out twice in
succession: all control points have been deleted.
Follow the procedures in the section entitled
-
"Commissioning" to add RTS control points.

9. Technical data

Radio frequency
Power supply
Operating temperature
Exposure temperature
Maximum total power
Rated current
Fuse
Break type
Index protection rating
Overvoltage category
Impulse withstand voltage
Dimensions (mm)
Cable diameter
Conductor cross section
Number of programmable RTS
control points
Safety level
Pollution index
Number of cycles (manual and
automatic)
Type of operation
Software class
Cable temperature resistance
2
b
PROG.
2 min.
5
...
ON
PROG.
433.42 MHz
230 V 50 Hz
-20°C + 30°C
-20°C + 50°C
3000 W
13 A
F20 A
Micro break and
electronic break
IP44
2
2500 V
120 x 152 x 58
from 7 mm to 12 mm
from 1.5mm² to
2.5mm²
12 maximum
Class I
2
3000 (3E3)
1.B
A
Minimum 105° C
2/2
