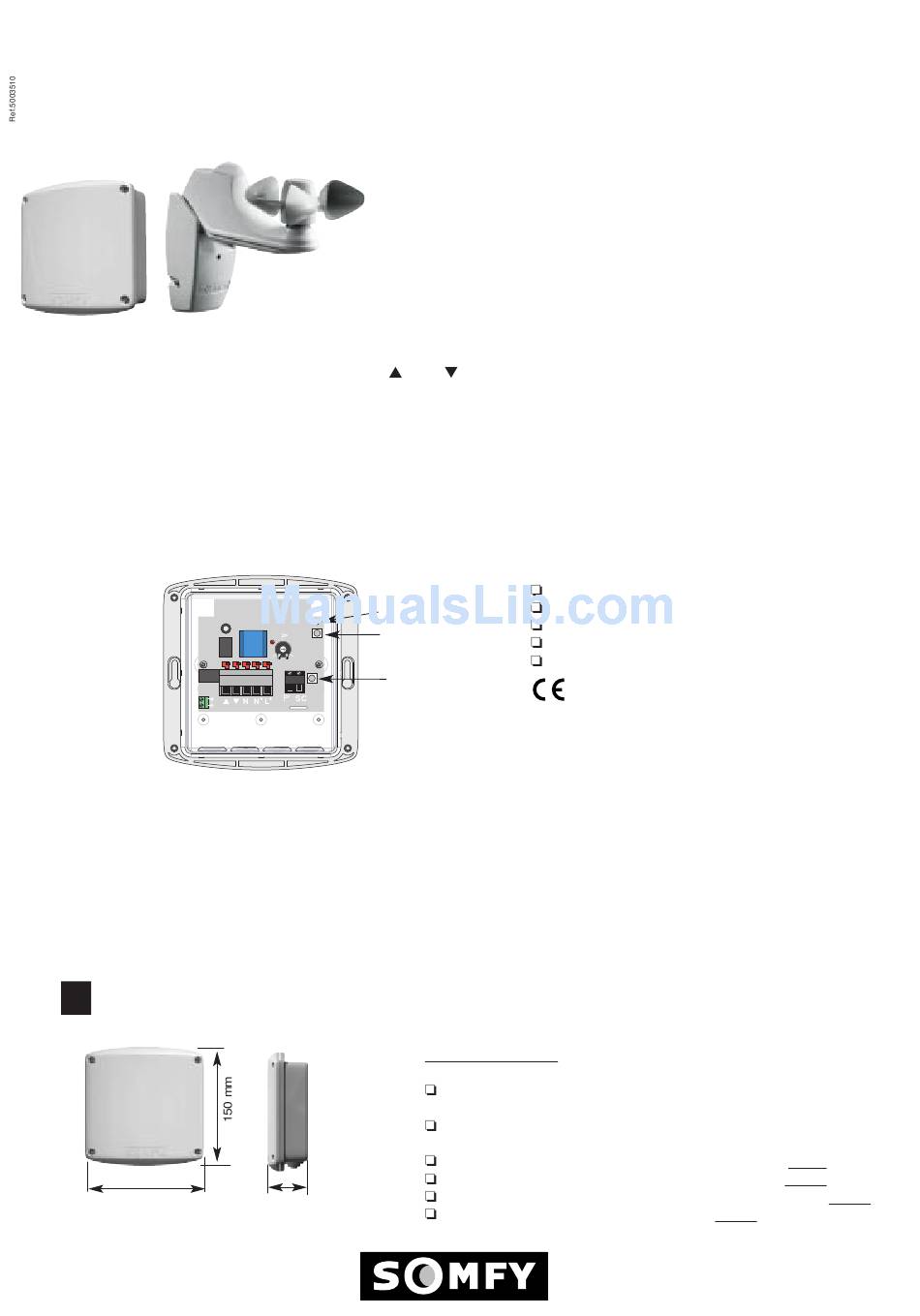

INSTALLATION
1
Characteristics:
2
Installation:
Before connecting the unit, you must read the instructions carefully.
Mounting of the EOLIS receiver RTS 2 :
A
150 mm
inteo

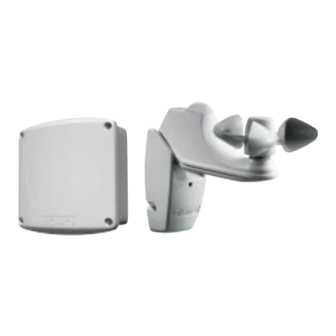

The EOLIS receiver RTS is a radio receiver for awnings with protection
against wind damage.
The EOLIS receiver RTS is compatible with the EOLIS sensor,all the RTS
controls and the INIS RT.
Commands are transmitted by radio (frequency 433.42 MHz).
With an INIS RT, the functioning of the EOLIS receiver RTS is a trip switch type :
, stop,
LED
Programming
button
Built-in manual
security control
Recommendations :
Install the EOLIS receiver RTS with the cables entry pointing downwards
to avoid water infiltration.
Do no install the eolis receiver RTS against a metallic part
(it could affect the radio transmission).
minimum distance between the receiver and the floor : 1,5 m.
minimum distance between the receiver and the roof : 30 cm.
minimum distance between the receiver and the transmitter : 30 cm.
40 mm
minimum distance between two receivers : 20 cm.
EOLIS receiver RTS 2
, stop,...
Mains supply : 220-240 V~ 50/60 Hz
Protection index: IP 44
Operating temperature: -20°C to +50°C
Class II product once installed
Normally polluted environment
Hereby, SOMFY, declares that this equipment is in
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at the web
address www.somfy.com Heading CE
®
guide
Advertisement
Related Manuals for SOMFY INTEO EOLIS RECEIVER RTS 2
Summary of Contents for SOMFY INTEO EOLIS RECEIVER RTS 2
- Page 1 Class II product once installed button Normally polluted environment Built-in manual Hereby, SOMFY, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. security control A Declaration of Conformity is available at the web address www.somfy.com Heading CE...
- Page 2 Cabling of the EOLIS receiver RTS 2 : The EOLIS receiver RTS is compatible with all standard SOMFY motors. Cabling arrangements are shown in the diagram. Respect the electrical standards in force as well as the following points: - disconnect the mains before carrying out any work.
- Page 3 Programming : INITIAL INSTALLATION with an RTS control (TELIS soliris RTS ; Centralis RTS ; TELIS 1 or 4 RTS). Set the EOLIS receiver Press shortly The LED of the EOLIS RTS in its programming the program- receiver RTS blinks mode by pressing the ming button indicating that the...
- Page 4 Intermediate position (WITH A RTS CONTROL ONLY) With the EOLIS receiver RTS and a RTS control, it is possible to set one or two intermediate positions (IP) : one accessible from the top of the awning (IP1) and one from the bottom (IP2). To record these positions, the EOLIS receiver RTS has to record the time for the awning to go from its top to the IP and also the time from its bottom one to the IP.
