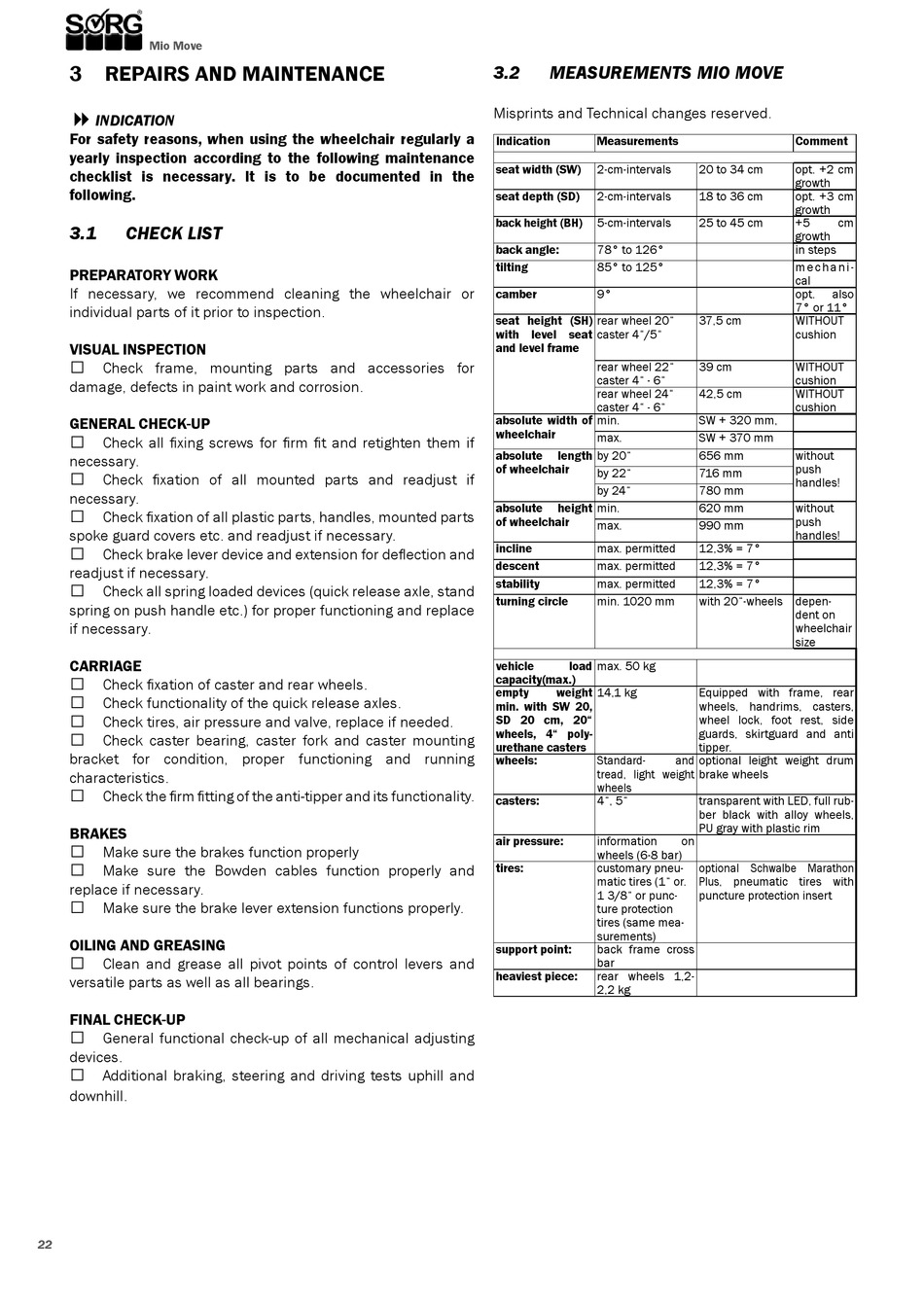

3 REPAIRS AND MAINTENANCE

�
INDICATION
For safety reasons, when using the wheelchair regularly a
yearly inspection according to the following maintenance
checklist is necessary. It is to be documented in the
following.
3.1

CHECK LIST

PREPARATORY WORK
If necessary, we recommend cleaning the wheelchair or
individual parts of it prior to inspection.
VISUAL INSPECTION
Check frame, mounting parts and accessories for
damage, defects in paint work and corrosion.
GENERAL CHECK-UP
Check all fixing screws for firm fit and retighten them if
necessary.
Check fixation of all mounted parts and readjust if
necessary.
Check fixation of all plastic parts, handles, mounted parts
spoke guard covers etc. and readjust if necessary.
Check brake lever device and extension for deflection and
readjust if necessary.
Check all spring loaded devices (quick release axle, stand
spring on push handle etc.) for proper functioning and replace
if necessary.
CARRIAGE
Check fixation of caster and rear wheels.
Check functionality of the quick release axles.
Check tires, air pressure and valve, replace if needed.
Check caster bearing, caster fork and caster mounting
bracket for condition, proper functioning and running
characteristics.
Check the firm fitting of the anti-tipper and its functionality.
BRAKES
Make sure the brakes function properly
Make sure the Bowden cables function properly and
replace if necessary.
Make sure the brake lever extension functions properly.
OILING AND GREASING
Clean and grease all pivot points of control levers and
versatile parts as well as all bearings.
FINAL CHECK-UP
General functional check-up of all mechanical adjusting
devices.
Additional braking, steering and driving tests uphill and
downhill.
22
3.2

MEASUREMENTS MIO MOVE

Misprints and Technical changes reserved.
Indication Measurements
seat width (SW) 2-cm-intervals
seat depth (SD) 2-cm-intervals
back height (BH) 5-cm-intervals
back angle: 78° to 126°
tilting 85° to 125°
camber 9°
seat height (SH) rear wheel 20"
with level seat caster 4"/5"
and level frame
rear wheel 22"
caster 4" - 6"
rear wheel 24"
caster 4" - 6"
absolute width of min.
wheelchair
max.
absolute length by 20"
of wheelchair
by 22"
by 24"
min.
absolute height
of wheelchair
max.
incline max. permitted
descent max. permitted
stability max. permitted
turning circle min. 1020 mm
vehicle load max. 50 kg
capacity(max.)
empty weight 14,1 kg
min. with SW 20,
SD 20 cm, 20"
wheels, 4" poly-
urethane casters
wheels: Standard-
tread, light weight
wheels
casters: 4", 5"
air pressure: information
wheels (6-8 bar)
tires: customary pneu-
matic tires (1" or.
1 3/8" or punc-
ture protection
tires (same mea-
surements)
support point: back frame cross
bar
heaviest piece: rear wheels 1,2-
2,2 kg
Comment
20 to 34 cm opt. +2 cm
growth
18 to 36 cm opt. +3 cm
growth
25 to 45 cm +5 cm
growth
in steps
m e c h a n i -
cal
opt. also
7° or 11°
37,5 cm WITHOUT
cushion
39 cm WITHOUT
cushion
42,5 cm WITHOUT
cushion
SW + 320 mm,
SW + 370 mm
656 mm without
push
716 mm
handles!
780 mm
620 mm without
push
990 mm
handles!
12,3% = 7°
12,3% = 7°
12,3% = 7°
with 20"-wheels depen-
dent on
wheelchair
size
Equipped with frame, rear
wheels, handrims, casters,
wheel lock, foot rest, side
guards, skirtguard and anti
tipper.
and optional leight weight drum
brake wheels
transparent with LED, full rub-
ber black with alloy wheels,
PU gray with plastic rim
on
optional Schwalbe Marathon
Plus, pneumatic tires with
puncture protection insert
