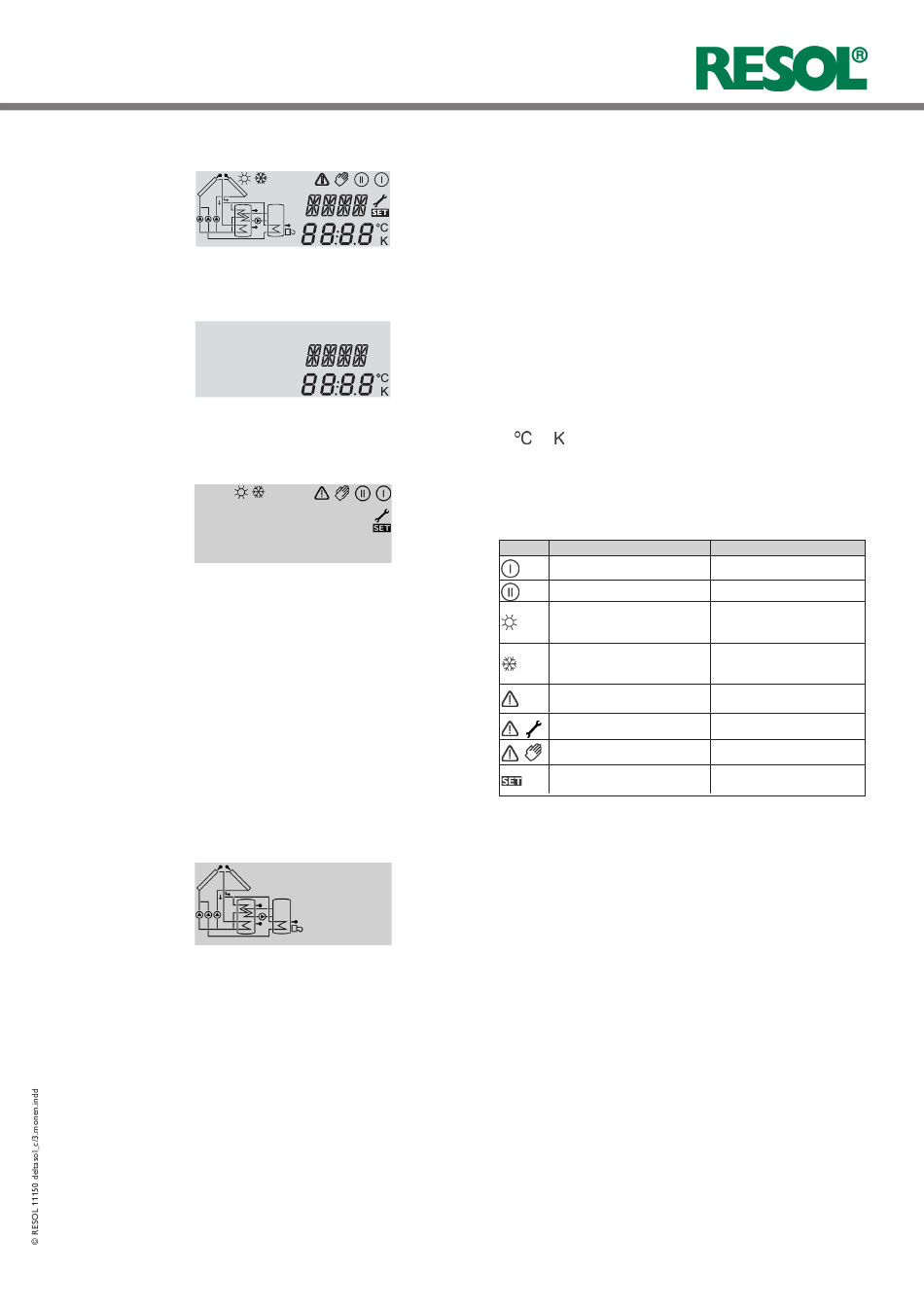

2.2 System-Monitoring display
Monitoring-Display

2.2.1 Channel display

channel display

2.2.2 Toolbar

toolbar

2.2.3 System-Screen

system screen
The system monitoring display consists of 3 ranges: The
channel display, the toolbar and the system-screen
(active arrangement).
The channel display consists of 2 lines. The upper line is an
alpha-numeric 16-segment display (text display) for display-
ing channel names and menu items. In the lower 7-segment
display, the channel values and the adjustment parameters
are displayed.
Temperatures and temperature differences are indicated
in or .
The additional symbols in the toolbar indicate the actual
system status.
Symbol normal
relay 1 active
relay 2 active
store maximum limitation active
/ maximum store temperature
exceeded
antifreeze function active
+
+
The system screen (active arrangement) shows the scheme
which has been selected. The screen consists of several
system component symbols, which are - depending on the
current status of the system - either flashing, permanently
shown or „hidden".
flashing
collector cooling function active
recooling function active
collector minimum limitation
active
antifreeze function active
Kollektornotabschaltung aktiv
oder Speichernotabschaltung
sensor fault
manual mode
change of adjustment channel
SET-mode
