® RESOL D e lt a S o l Mounting Connection Operation Troubleshooting Examples Manual Thank you for buying this RESOL product. Please read this manual carefully, to get the best performance from this unit. www.resol.com...
- Initial installation should be carried CE-Declaration of conformity out by named qualified personnel The product complies with the relevant direc- tives and is therefore labelled with the CE mark. The Declaration of Conformity is available upon request, please contact RESOL.

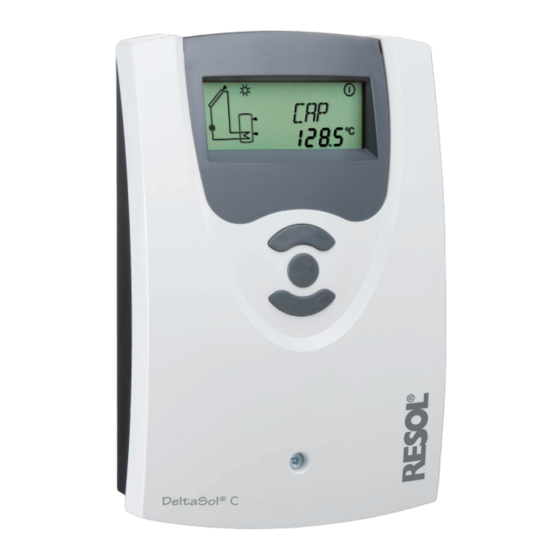

• user-friendly operation through simple handling • easy-to-mount housing with outstanding design • solar operating hours counter and thermostat function • RESOL VBus ® • real time clock Delivery scope: 1 x D e lt a S o l ®...
® standard solar system solar system with afterheating Order note RESOL D e lt a S o l ® RESOL D e lt a S o l C/3 - full kit ® incl. 3 temperature sensors Pt1000 (1 x FKP6, 2 x FRP6)
19 = neutral conductor N 20 = phase L 12 = ground clamp The controller is equipped with the RESOL VBus ® data transfer with and energy supply to external modules. The connection is carried out at the two terminals 9 and 10 marked “VBus...
D e lt a S o l ® 1.2.2 Terminal allocation Arr 2 Solar system and after-heating with 1 store, 3 sensors and after-heating. The sensor S4 / TRF can be optionally used for heat quantity balancing. ARR 2 Symbol Specification collector sensor store base sensor...
D e lt a S o l ® System-Monitoring display The system monitoring display consists of 3 ranges: The channel display, the toolbar and the system-screen (active arrangement). Monitoring-Display 2.2.1 Channel display The channel display consists of 2 lines. The upper line is an alpha-numeric 16-segment display (text display) for display- ing channel names and menu items.
D e lt a S o l ® sensor store top sensor collector 1 pumps sensor additional symbol operation of the burner store heat exchanger afterheating (with additional store symbol) temperature sensor collector with collector sensor pump store with heat exchanger afterheating with burner symbol 2.3 Flashing codes...
D e lt a S o l ® 3. Commissioning When the controller is commissionend for the first time, the arrangement has to be selected first 1. Switch on power supply. After initialisation, the controller is in the automatic mode with typical settings. The pre- programmed system scheme is Arr 1.
D e lt a S o l ® Control parameters and display channels 4.1 Overview of channels Legend: Only if the option heat quantity measurement is activated Corresponding channel is available. (OHQM), will the corresponding channel be available. Corresponding channel is available when the corresponding Only if the option heat quantity measurement is deactiva- option is enabled...
D e lt a S o l ® 4.1.1 Collector temperature COL: Display of the current collector temperature. Collector temperature • COL : collector temperature display range: -40 ... +250 °C 4.1.2 Store temperatures Display of the current store temperature. TST, TSPL, TSPU: Store temperatures •...
D e lt a S o l ® 4.1.7 Heat quantity measurement option Heat quantity measurement is possible if a flowmeter is OHQM:Heat quantity used. For this purpose, the heat quantity measurement measurement option (OHQM) has to be enabled. Adjustment range: OFF ... ON Factory setting: OFF The flow rate should be read from the flowmeter (l/min) FMAX:...
Page 13
D e lt a S o l ® 4.1.9 Maximum store temperature If the adjusted maximum temperature is exceeded, the store will no longer be loaded in order to avoid damage caused by S MX: overheating. If the maximum store temperature is exceeded, Maximum store temp.
Page 14
D e lt a S o l ® 4.1.13 Option antifreeze function The antifreeze function activates the loading circuit between the collector and the store when the temperature falls be- OCF: low the adjusted antifreeze temperature. This will protect Antifreeze function the fluid against freezing or coagulating.
Page 15
D e lt a S o l ® 4.1.16 Thermostat function (Arr = 2) The thermostat function works independently from the surplus energy afterheating solar operation and can be used for using surplus energy or for after-heating. • AH O < AH F thermostat function for after-heating •...
D e lt a S o l ® 5. Troubleshooting If a malfunction occurs, a message is displayed in the display of the controller: fuse T2A warning symbol 100 ... 240 V~ 50-60 Hz IP 20 2 (1) A (100 ... 240) V~ Temp.
D e lt a S o l ® 5.1Various Pump is overheated, but no heat transfer from the colle- Pump starts for a short moment, switches-on/off ctor to the store, flow and return have the same tempe- again,etc. rature; perhaps also bubble in the lines Air in the system? Is the temperature diffe- Vent the system;...
Page 18
D e lt a S o l ® Stores cool down at night. Check the non-return Further pumps which are valve in warm water cir- connected to the solar culation- o.k. store must also be che- cked. Does the collector circuit pump run in the night? Check controller.
Overvoltage protection device In order to avoid overvoltage damage at collector sensors (e.g. caused by local lightning storms), we recommend in- stalling the overvoltage protection RESOL SP1. Flowmeter If you are interested in realising a heat quantity balancing, you need a flowmeter for measuring the volume flow in...
Another use outside the copyright re- manual and to the best of our knowledge and consent. As quires the approval of RESOL - Elektronische Regelungen faults can never be excluded, please note: Your own calcu- GmbH. This especially applies for copies, translations, lations and plans, under consideration of the current stan- micro films and the storage into electronic systems.
