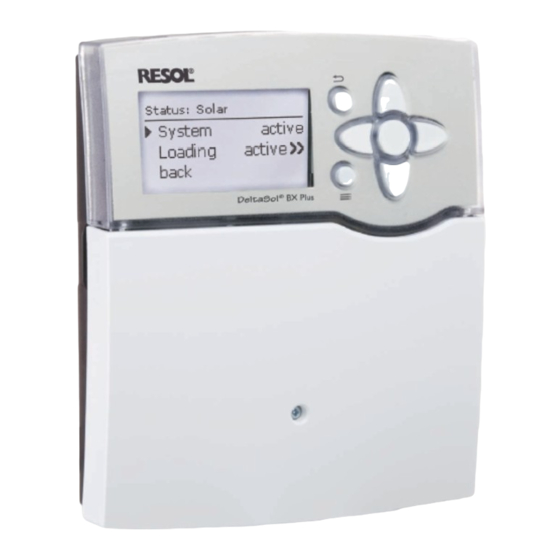

BX Plus
D e lt a S o l
®
Manual for the
specialised craftsman
Mounting
Electrical connection
Operation
Troubleshooting
Application examples
en
Thank you for buying this RESOL product.
Manual
Read this manual carefully to get the best performance from this unit.
www.resol.com
Please keep this manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the deltasol bx plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Resol deltasol bx plus

Summary of Contents for Resol deltasol bx plus

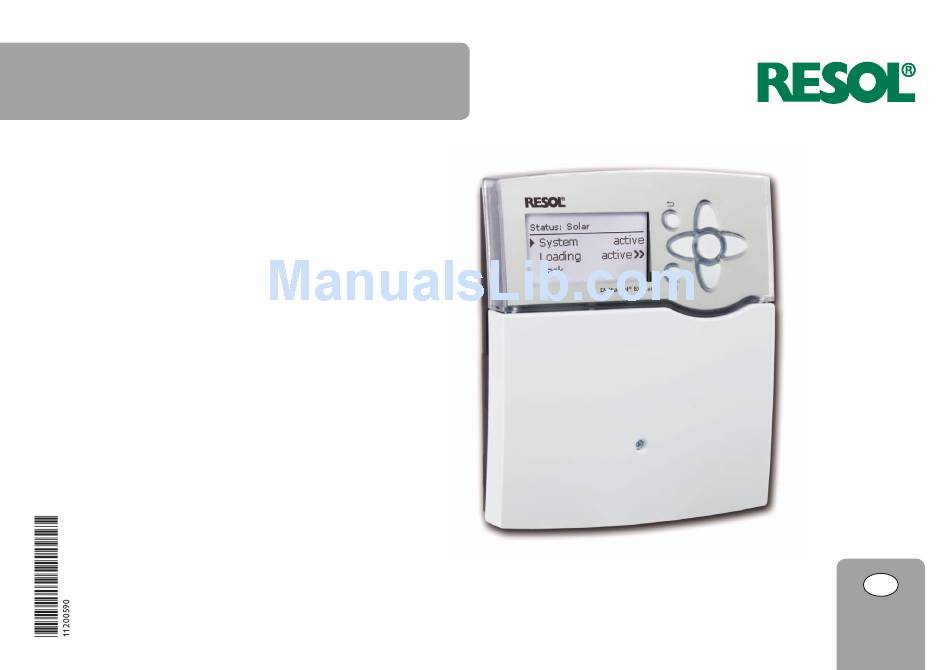

  • Page 1 D e lt a S o l ® Manual for the specialised craftsman Mounting Electrical connection Operation Troubleshooting Application examples Thank you for buying this RESOL product. Manual Read this manual carefully to get the best performance from this unit. www.resol.com Please keep this manual carefully.
  • Page 2 • ATTENTION means that damage to the appli- CE mark. The Declaration of Conformity ance can occur. is available upon request, please contact RESOL. Note Strong electromagnetic fields can impair the function of the controller. Î Make sure the controller as well as the system are not exposed to strong elec- tromagnetic fields.

  • Page 3: Table Of Contents

    BX Plus D e lt a S o l ® Contents Overview ............ 4 Arrangement ........... 42 1.1 Optional functions ...........5 9.1 Optional functions ..........42 Installation ..........5 10 Heating ............. 54 2.1 Mounting ..............5 10.1 Demands ..............55 2.2 Electrical connection ..........6 10.2 Heating circuits (with EM Extension Modules only) ....55 2.3 Data communication / Bus ........7...

  • Page 4: Overview

    • Thermal disinfection counter for the solar pump, tube collector function, thermostat function, store loading in layers, priority • RESOL VBus ® logic, drainback option, booster function, heat dump • Energy-efficient switch-mode power supply function, thermal disinfection function, PWM pump control, function control according to BAFA guidelines.

  • Page 5: Optional Functions

    Installation Optional functions Mounting The unit must only be located in dry interior rooms. Solar The controller must additionally be supplied from a Bypass double pole switch with contact gap of at least 3 mm screw [0.12"]. CS Bypass Please pay attention to separate routing of sensor ca- External heat exchanger bles and mains cables.

  • Page 6: Electrical Connection

    Vor Öffnen Gerät spannungslos schalten! Isolate mains before removing cover! nected: DeltaSol BX Plus ® Masse-Sammelklemme benutzen Made in Germany Use ground common terminal block 100 ... 240 V~ Note Relays 1 ...

  • Page 7: Data Communication / Bus

    Data communication / Bus IP20 Temp. Sensor The controller is equipped with the RESOL VBus ® The terminal S9 can be used as an impulse input for a Vor Öffnen Gerät spannungslos schalten! for data transfer with and energy supply to external V40 flowmeter or as an input for an FS08 flowswitch.

  • Page 8: Sd Card Slot

    D e lt a S o l ® BX Plus, but can also be purchased at quire one or more relays, the corresponding number RESOL. 2. Registering sensors of free relays can be allocated. The controller always For more information about using an SD card, see If fl owmeters, fl ow switches, Grundfos Direct Sen- suggests the numerically smallest free relay.

  • Page 9: Operation And Function

    Operation and function Buttons Selecting menu points and adjusting values The controller is energised via the 7 buttons next to the display.They have the following functions: During normal operation of the controller, the display is in the main menu. If no button is pressed for a few Button - scrolling upwards seconds, the display illumination goes out.
  • Page 10 adjusted value (not yet confi rmed) adjustment channel active area inactive area If more than one item of several can be selected, they will be indicated with checkboxes. When an item has When two values are locked against each other, they been selected, an x appears inside the checkbox.

  • Page 11: Menu Structure

    Menu structure The menu items and adjustment values se- Main menu lectable are variable depending on adjustments Status already made. The figure only shows an exem- Solar Solar plary excerpt of the complete menu in order to visualise the menu structure. Arrangement Basic settings Basic settings...

  • Page 12: Initial Commissioning

    Initial commissioning When the hydraulic system is fi lled and ready for op- 1. Language: eration, connect the controller to the mains. Î Adjust the desired menu language. The controller runs an initialisation phase in which the directional pad fl ashes red. When the controller is commissioned for the fi rst time or when it is reset, it will run a commissioning menu after the initialisation phase.
  • Page 13 Î Adjust the desired energy unit. 4. Daylight savings time adjustment: 8. Completing the commissioning menu: Î Activate or deactivate the automatical daylight After the system has been selected, a security enquiry savings time adjustment. appears. If the enquiry is confi rmed, the adjustments will be saved.

  • Page 14: Basic Systems And Hydraulic Variants

    Basic systems and hydraulic variants Variant System The selection of the basic solar system is one of the most important adjustments and is thus requested al- ready in the commissioning menu. First, the basic system is adjusted by means of the number of stores and collectors fi elds, then the hy- draulic variant.

  • Page 15: Overview Of Relay And Sensor Allocation

    Overview of relay and sensor allocation System 1 Relay / sensor allocation Relay Solar pump Opt. function Opt. function Opt. function Opt. function Sensor Collector 1 Store base Free Free Free Free Free Free Free System 2 variant 1 S1 S6 Relay / sensor allocation Relay Pump coll.
  • Page 16 System 2 variant 2 Relay / sensor allocation Relay 2PV coll. 1 2PV coll. 2 Solar pump Opt. function Opt. function Sensor Collector 1 Store base Free Free Free Collector 2 Free Free Free System 3 variant 1 Relay / sensor allocation Optional Optional Optional...
  • Page 17 System 3 variant 2 Relay / sensor allocation Solar pump Solar pump Optional Optional Optional Relay store 1 store 2 function function function Sensor Collector Store 1 base Free Store 2 base Free Free Free Free Free System 3 variant 3 Relay / sensor allocation Optional Optional...
  • Page 18 System 4 variant 1 S1 S6 Relay / sensor allocation Optional Optional Pump coll. 1 Pump coll. 2 Relay store 2 function function Collector 1 Store 1 base Free Store 2 base Free Collector 2 Free Free Free Sensor System 4 variant 2 S1 S6 Relay / sensor allocation Optional...
  • Page 19 System 4 variant 3 S1 S6 Relay / sensor allocation Solar pump Solar pump Optional 2PV coll. 1 2PV coll. 2 Relay store 1 store 2 function Collector 1 Store 1 base Free Store 2 base Free Collector 2 Free Free Free Sensor...
  • Page 20 System 5 variant 1 Relay / sensor allocation Optional Solar pump Relay store 1 store 2 store 3 function Collector 1 Store 1 base Free Store 2 base Store 3 base Free Free Free Free Sensor System 5 variant 2 Relay / sensor allocation Solar pump Solar pump...
  • Page 21 System 5 variant 3 Relay / sensor allocation Optional Optional Solar pump Relay store 1 store 2 function function Collector 1 Store 1 base Free Store 2 base Store 3 base Free Free Free Free Sensor System 6 variant 1 Relay / sensor allocation Pump coll.
  • Page 22 System 6 variant 2 Relay / sensor allocation Solar pump Solar pump Solar pump 2PV coll. 1 2PV coll. 2 Relay store 1 store 2 store 3 Collector 1 Store 1 base Free Store 2 base Store 3 base Collector 2 Free Free Free...
  • Page 23 System 6 variant 4 S1 S6 Relay / sensor allocation Optional Pump coll. 1 Pump coll. 2 3PV store 1 3PV store 2 Relay function Collector 1 Store 1 base Free Store 2 base Store 3 base Collector 2 Free Free Free Sensor...
  • Page 24 System 7 variant 2 Relay / sensor allocation Optional Solar pump Relay store 1 store 2 store 3 function Collector 1 Store 1 base Free Store 2 base Store 3 base Store 4 base Free Free Free Sensor System 7 variant 3 Relay / sensor allocation Solar pump Solar pump...

  • Page 25: Main Menu

    Main menu Status Heating In the Status / Heating menu, the status of the de- During normal operation, the display of the controller In the Status menu, the status messages for every mands and heating circuits activated as well as of the shows the main menu.

  • Page 26: Meas. / Balance Values

    Solar Meas. / Balance values If, for example, S1 is selected, a submenu indicating the minimum and maximum values will open. When the item Chart is selected, a progression chart appears. In the Status / Meas. / Balance values menu, all cur- In this menu, all adjustments for the solar part of the rent measurement values as well as a range of balance arrangement can be made.
  • Page 27 The following items in the Solar / Basic settings menu First of all, the basic solar system can be selected ac- will adjust to the system selected. cording to the number of stores and collector fi elds in use. The corresponding numbers are indicated on the display.
  • Page 28 Store (1 / 2 / 3 / 4) In systems with 2 or more stores, the correspond- ing number of seperate menu items (Store 1 to Store 4) is displayed instead of Store. For each store, an individual ∆T control, a set and a maximum temperature, the priority, a hysteresis, a rise value, a minimum runtime and a minimum pump speed can be adjusted.

  • Page 29: Solar Optional Functions

    Loading logic Solar optional functions process stops and the controller monitors the incre- ase in collector temperature during the loading break time Load. break. If it increases by 2 K [4° Ra], the break time timer starts again to allow the collector to gain more heat.
  • Page 30 If the menu item Delete function is confi rmed by The menu item Relay selec. is available in all optional At the end of each optional function submenu, the pressing button , a security enquiry appears. The functions. Therefore, it will not be explained in the in- menu items Funct.
  • Page 31 Bypass In order to prevent energy from being extracted from the store when starting store loading, this function makes sure that the cold fl uid in the pipes is diverted past the store via a bypass (valve or pump). Once the pipe is warm enough, the store can be loaded.
  • Page 32 CS bypass The CS bypass function is a different possibility to ac- The relay remains switched on if the irradiation value tivate the collector circuit. To enable the use of the is exceeded for the delay time. When solar loading be- CS bypass function, a CS10 irradiation sensor has to gins or the irradiation value remains below the switch- be connected.
  • Page 33 Tube collector function This function helps overcome the non-ideal sensor position with some tube collectors. This function operates within an adjusted time frame. It activates the collector circuit pump for an adjust- able runtime between adjustable pauses in order to compensate for the delayed temperature measure- ment.
  • Page 34 Target temperature When the Target temperature function is acti- vated, the pump speed control logic changes. The controller will remain at the minimum pump speed until the temperature at the allocated sensor exceeds the adjusted target temperature. Only then will the standard pump speed control start to operate.
  • Page 35 Afterheating suppression The afterheating suppression blocks the conventional afterheating of a store that is currently in solar loading. This function is activated if a previously selected Store is being loaded. Solar loading means that store loading is only carried out for energy supply and not for cooling purposes etc. If the Tset option is activated, the afterheating will only be suppressed when the store temperature ex- ceeds Tset.
  • Page 36 Cooling mode In the cooling mode menu, different cooling functions In 2-collector systems, separate adjustments can be are available. They can be used for keeping the solar made for each collector fi eld. system operational for a longer time during strong The control logic regards collector cooling operation solar irradiation.
  • Page 37 Solar / Opt. functions / Add new function... / Cooling mode Adjustment channel Description Adjustment range / selection Factory setting Variant Cooling logic variant Col. cool, Syst. cool., Off Tcolmax. Collector maximum temperature 70 ... 190 °C [158 ... 374 °F] 100 °C [212 °F] Store (1 ...
  • Page 38 Solar external heat exchanger This function is used to link loading circuits that are separated by an external heat exchanger. The allocated relay is energised if one of the selected stores is being loaded and there is a temperature dif- ference between the sensor of the corresponding store and the solar fl ow.
  • Page 39 Drainback option A drainback system permits the heat transfer fl uid to drain back into the holding tank when solar energy is not collected.The drainback option will initiate the fi lling of the system when solar loading begins. Note: booster pump A drainback system requires additional com- ponents such as a holding tank.
  • Page 40 Twin pump The Twin pump function controls the equal distri- bution of pump runtime in systems with two equally usable pumps. If the allocated relay has exceeded its adjusted runt- ime and the next switch-on process is imminent, the reference relay is switched on instead. All character- relay reference relay istics are adopted.
  • Page 41 Heat dump The heat dump function can be used to direct excess heat generated by strong solar irradiation to an exter- nal heat exchanger (e. g. fan coil) in order to prevent Relay the collectors from overheating. The allocated relay is energised with 100 %, if the col- lector temperature reaches the adjusted switch-on temperature.

  • Page 42: Solar Expert Menu

    Solar expert menu Arrangement Flow sen- In this menu, all adjustments for the non-solar part of the arrangement can be made. A range of optional functions can be selected and ad- Return sensor justed. Example of fl ow- and return sensor positions Optional functions Solar / Expert Adjustment channel Description...
  • Page 43 When a function is selected, a submenu opens in When a function has been selected and adjusted, it If the menu item Delete function is confi rmed by will appear in the Opt. functions above the menu which all adjustments required can be made. pressing button , a security enquiry appears.
  • Page 44 Arrangement / Opt. functions / Add new function... / Parallel relay The Parallel relay function can be used to operate Adjustment channel Description Adjustment range / selection Factory setting an allocated parallel relay alongside a selected refer- Relay Relay selection system dependent system dependent ence relay.
  • Page 45 Boiler loading In order to adjust the timer, press button First the individual days of the week or all days of the week can be selected. The last menu item after the list of days is Continue. If Continue is selected, the Edit timer menu opens, in which the time frames can be adjusted.
  • Page 46 Arrangement / Opt. functions / Add new function... / Boiler loading Adjustment channel Description Adjustment range / selection Factory setting Relay Relay selection system dependent system dependent Sensor top Top sensor selection system dependent system dependent Sensor base Base sensor selection system dependent system dependent TBoiler on...
  • Page 47 Heat exchange The heat exchange function can be used for transfer- ring heat from a heat source to a heat sink. Sensor Source The allocated relay is energised when all switch-on conditions are fulfi lled: • the temperature difference between the allocated sensors has exceeded the switch-on temperature difference •...
  • Page 48 Solid fuel boiler The solid fuel boiler function can be used for transfer- ring heat from a solid fuel boiler to a store. Sensor Solid fuel boiler The allocated relay is energised when all switch-on conditions are fulfi lled: • the temperature difference between the allocated sensors has exceeded the switch-on temperature difference Relay...
  • Page 49 Circulation Demand + Timer The relay operates when the switch-on conditions of both above mentioned variants are fulfi lled. Sensor Relay Circulation The circulation function can be used for controlling a circulation pump. For the control logic, 5 different variants are available: •...
  • Page 50 The time frames can be adjusted in steps of 15 min- utes. The cursor can be moved along the time line by pressing buttons The beginning of a time frame can be determined by pressing button . The end of a time frame can be determined by pressing button Arrangement / Opt.
  • Page 51 The return preheating function can be used for trans- Return preheating ferring heat from a heat source to the heating circuit return. The allocated relay is energised when both switch-on conditions are fulfi lled: • the temperature difference between the allocated Sensor HS Relay sensors has exceeded the switch-on temperature...
  • Page 52 Function block In addition to the pre-defined optional functions, func- ∆T function Thermostat function tion blocks consisting of thermostat functions, timer The relay allocated to the function block is switched The relay allocated to the function block is switched and differential functions are available. With the help on, when the adjusted switch-on temperature (Th(x) on as soon as the adjusted switch-on temperature dif- of these function blocks, further components, resp.
  • Page 53 Arrangement / Opt. functions / Add new function... / Function block Adjustment Description Adjustment range / selection Factory setting channel Relay Relay selection system dependent system dependent Thermostat a Thermostat a Yes, No Th-a on Switch-on temperature Thermostat a -40 ... 250 °C 40 °C Th-a off Switch-off temperature Thermostat a...

  • Page 54: Heating

    Irradiation switch The Irrad. switch function can be used for operating a relay depending on the measured irradiation value. The allocated relay is switched on if the adjusted irra- diation value remains exceeded for the adjusted dura- tion. If the irradiation falls below the adjusted value for the adjusted duration, the relay is switched off.

  • Page 55: Demands

    10.1 Demands In this menu, up to 2 heating demands can be activated and adjusted. Activated demands will be available for selec- tion in the relay allocation channels of the cor- responding optional functions. This way, sev- eral optional functions can demand the same heat source.
  • Page 56 Summer off: The summer mode becomes active With the Room thermostat option, up to 5 room In order to adjust the timer, press button when the outdoor temperature exceeds the adjusted thermostats can be integrated into the control logic. First the individual days of the week or all days of the summer temperature TSummer.
  • Page 57 Heating / Heating circuits / New heating circuit / Internal Adjustment channel Description Adjustment range / selection Factory setting HC pump Heating circuit pump system dependent system dependent Mixer open Relay selection mixer open system dependent system dependent Mixer closed Relay selection mixer closed system dependent system dependent...
  • Page 58 Chimney sweeper function Adjustment channel Description Adjustment range / selection Factory setting The chimney sweeper function can be used for ena- All days, Monday ... Sunday, Days of the week Day selection bling a quick access to measurement conditions with- Continue out menu operation for the chimney sweeper.

  • Page 59: Optional Functions

    10.3 Optional functions With this menu item, an afterheating demand relay can be allocated to the function. All free relays are available for selection. In the submenu Controller, all free relays of the controller are displayed. If external modules are con- nected and registered, their relays will be displayed in corresponding submenus.
  • Page 60 Thermal disinfection Due to the fl exible control logic, the exact time of thermal disinfection is not predictable. In order to set a fi xed time for the disinfection to be run, the starting delay must be used: If the starting delay option Starting time is activat- ed, a starting time for the thermal disinfection with starting delay can be adjusted.
  • Page 61 DHW heating Boiler mode: If the Boiler mode has been selected, another sensor can be allocated in the channel Sensor 2. The switch- on, or the switch-off conditions respectively, then have to be fulfi lled at both sensors in order for the relay to be energised.

  • Page 62: Hqm

    Heating / Opt. functions / Add new function... / DHW heating adjustment channel Description Adjustment range / selection Factory setting Demand Demand relay selection system dependent system dependent Loading pump Loading pump option Yes, No Relay Loading pump relay selection system dependent system dependent Overrun time...
  • Page 63 In the adjustment channel Fluid type, the heat trans- The heat quantity measurement deleted will disap- fer fl uid must be selected. If either Propylene glycol pear from the list and become available for selection in the New HQM menu again. The numeration of the or Ethylene glycol is selected, the adjustment channel Ratio is indicated in which the antifreeze ratio of the other activated heat quantity measurements will not...

  • Page 64: Basic Settings

    Basic settings SD card In the Basic settings menu, all basic parameters for the controller can be adjusted. Normally, these set- tings have been made during commissioning. They can be subsequently changed in this menu. Basic settings The controller is equipped with an SD card slot for SD memory cards.
  • Page 65 SD memory card when it is card, select the menu item Save adjustments. the menu item Remove card... before re- stored in a folder named "RESOL" on the moving the card. While the adjustments are being stored, first Please first level of the SD card.

  • Page 66: Manual Mode

    Manual mode Note: Always adjust the operating mode back to Auto when the control and service work is completed. Otherwise normal operation will not be possible. Manual mode In the Manual mode menu, the operating mode of Adjustment channel Description Adjustment range / selection Factory setting all relays in the controller and in connected modules...

  • Page 67: User Code

    User code 16.1 Modules In this menu, up to 2 external modules can be reg- In the User code menu, a user code can be entered. istered. Each number of the 4-digit code must be individually All modules connected and acknowledged by the con- adjusted and confi rmed.

  • Page 68: Inputs

    16.2 Inputs In- / Outputs / Inputs Adjustment channel Description Adjustment range / selection Factory setting S1 ... S12 Sensor input selection Switch, KTY, Pt500, RTA11-M, Type Selecting the sensor type Pt1000 Pt1000, None Offset Sensor offset -15.0 ... +15.0 K 0.0 K Imp.

  • Page 69: Outputs

    16.3 Outputs In order to reduce the number of switching processes If PWM is selected, the channels Output and Profi le appear. In the Output channel, one of the 4 for high-effi ciency pumps, the controller is equipped with a relay overrun function that automatically PWM outputs can be selected.

  • Page 70: Pwm-Profiles

    16.4 PWM-Profiles PWM A (e. g. manufacturer WILO) PWM D (e. g. manufacturer WILO) 95 100 PWM % PWM % PWM E (e. g. manufacturer Grundfos) PWM B (e. g. manufacturer Grundfos) Solar PM Profile OEM STANDARD PROFILE OEM SOLAR PM-Profile Max Speed Std PWM 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100...

  • Page 71: Troubleshooting

    Troubleshooting If a malfunction occurs, a message will appear on the display of the controller. WARNING! Electric shock! Upon opening the housing, live parts are exposed. Î Always disconnect the controller from power supply before opening the housing! The controller is protected by a fuse. The fuse holder (which also holds the spare fuse) becomes accessible when the cover is removed.
  • Page 72 Pump is overheated, but no heat transfer from the collector to the store, flow Pump starts up very late. and return have the same temperature; perhaps also bubbling in the lines. Switch-on temperature differ- Air or gas bubbles in the system? Vent the system;...
  • Page 73 The solar circuit pump does not work, although the collector is considerably Stores cool down at night. warmer than the store. Collector circuit pump runs during the night? Display illuminated? If not, press button . Display illumi- nated now? Check controller Collector temperature at night There is no current;...
  • Page 74 Does the warm water circula- tion run for a very long time? Use the circulation pump with timer and switch-off thermostat (energy efficient circulation). Circulation pump and blocking valve should be switched-off for 1 night; less store losses? Check whether the pumps of the afterheating circuit run at night;...

  • Page 75: Accessories

    Smart Display SD3 / Large Display GA3 drical clip-on sensors, also as complete sensors with RPD 0-10 bar Article no.: 130 000 90 The RESOL Smart Display is designed for simple con- immersion sleeve. nection to RESOL controllers with RESOL VBus . It ®...
  • Page 76 The DL2 is appropriate for all controllers RESOL DL3 Article no.: 180 009 90 connected, different fault conditions can be signalled, with RESOL VBus . It can be connected directly to ® e. g. sensor failures, excess or negative system pres-...

  • Page 77: Interface Adapters

    The VBus ® / LAN interface adapter is suitable for all controllers equipped with a RESOL VBus . A full version of the RESOL ServiceCenter ® software is included.

  • Page 78: Index

    Index Heat dump ..............41 Afterheating suppression ..........35 Sensor fault, error message ........25 Heat exchange ............... 47 Antifreeze, solar optional function ......34 Sensor offset ..............68 Heating demands ............55 Solar external heat exchanger ........38 Balance values ..............26 Heating period thermal disinfection ......
  • Page 79 Notes...
  • Page 80 This mounting- and operation manual including all parts is copyrighted. Another The texts and drawings of this manual are correct to the best of our knowledge. use outside the copyright requires the approval of RESOL – Elektronische As faults can never be excluded, please note: Regelungen GmbH.
