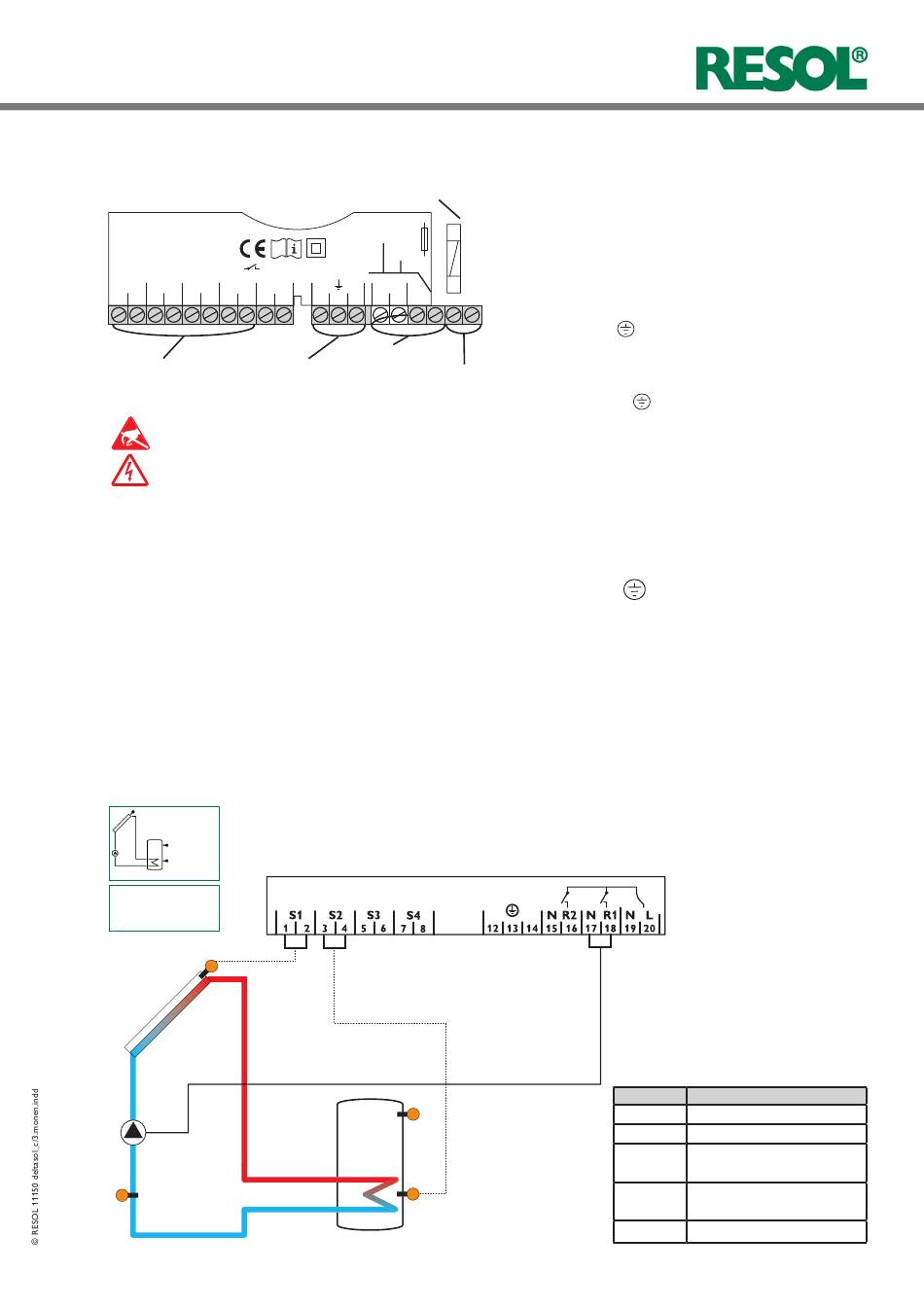

1.2 Electrical connection
2 (1) A (100 ... 240) V~
Temp. Sensor Pt1000
S1
S2
S3
S4
VBus
1
2
3
4
5
6
7
8
9
10
sensor terminals
ground terminals
Electrostatic discharge can cause damage of electronic
components!
High-voltage components!
1.2.1
Terminal allocation Arr 1
ARR1
S1
R1
S4 / TRF
fuse
T2A
100 ... 240 V~
50-60 Hz
IP 20
R1
N
L
18
19
20
N
12
13
14
15
16
17
load terminals
mains terminals
S3
S2
The power supply to the controller must be carried out via
an external power switch (last step!) and the supply voltage
must be 100 ... 240 V~ (50 ... 60 Hz). Flexible cables must be
attached to the housing with the enclosed strain relief and
the corresponding screws.
The controller is equipped with 2 relays to which loads
such as pumps, valves etc. can be connected:
• relay 1
18 = conductor R1
17 = neutral conductor N
13 = gound clamp
• relay 2
16 = conductor R2
15 = neutral conductor N
14 = ground clamp
Temperature sensors (S1 to S4) have to be connected
to the following terminals (either polarity):
1 / 2 = Sensor 1 (e. g. sensor collector 1)
3 / 4 = Sensor 2 (e. g. sensor store 1)
5 / 6 = Sensor 3 (sensor S3)
7 / 8 = Sensor 4 (e. g. sensor TRF)
The mains connection is at the terminals:
19 = neutral conductor N
20 = phase L
12 = ground clamp
The controller is equipped with the RESOL VBus
data transfer with and energy supply to external modules.
The connection is carried out at the two terminals 9 and
10 marked "VBus
®
" (either polarity). One or more RESOL
VBus
modules can be connected via this data bus:
®
• RESOL calorimeter
• RESOL large display / Smart Display
• RESOL Datalogger
Standard solar system with 1 store, 1 pump and 3 sensors.
The sensor S4 / TRF can be optionally used for heat quantity
measurement.
Symbol
S1
S2
S3
S4 / TRF
R1
®
for
Specification
collector sensor
store base sensor
store top sensor,
(optional)
sensor for heat quantity
measurement (optional)
solar pump
5
|
