Summary of Contents for Resol TLR2

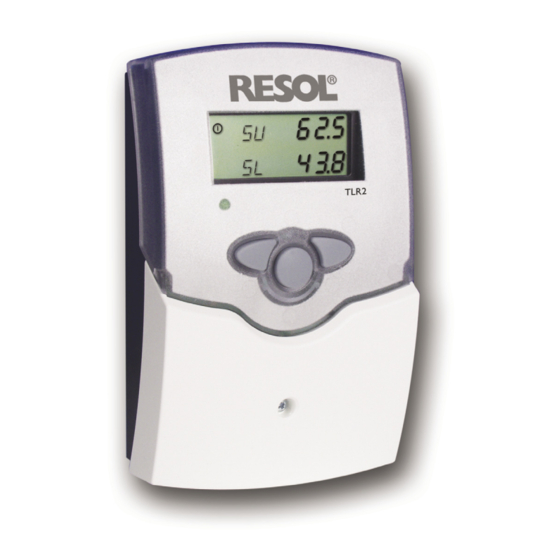

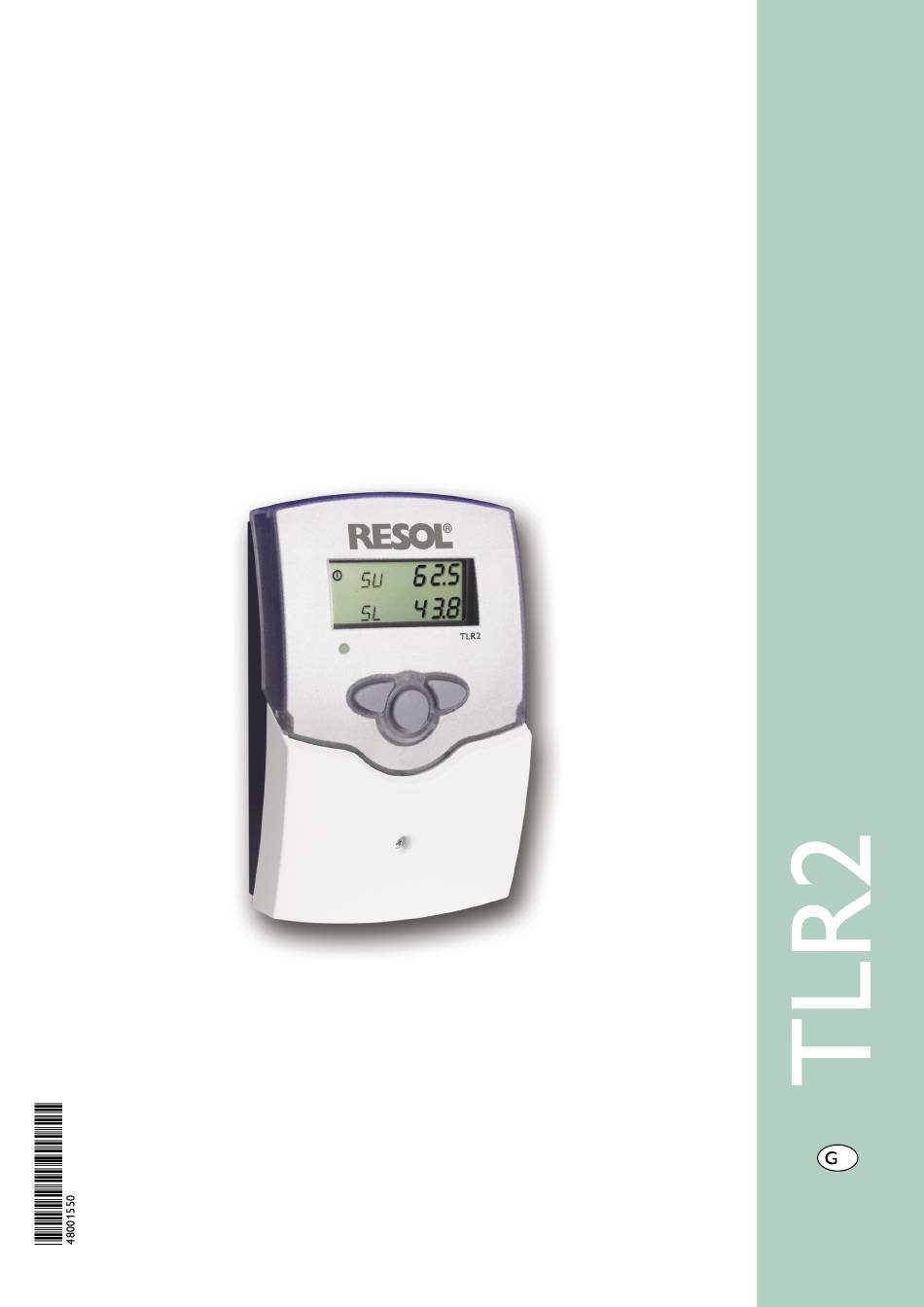

- Page 1 RESOL TLR2 Mounting Connection Handling Fault localization Manual Thanks for buying a RESOL product. www.resol.de Read this manual carefully to get the best perfomance from this unit.
-
Page 2: Table Of Contents
Please pay attention to the following security advice in order We, RESOL Elektronische Regelungen GmbH, D-45527 to avoid danger and damage to people and property. Hattingen, declare under our sole responsibility that our product TLR2 complies with the following standards: Instructions EN 55 014-1 Attention should be paid... -
Page 3: Technical Data And Functional Survey
S1 and S2 in the upper resp. lower part of the store. The charging cycle starts as soon as the The controller TLR2 needs two sensors from our product upper sensor S1 collects a temperature thatis lower than range. -
Page 4: Sensor Types
TLR2 store charge controller 1. Sensor types immersion sensor: available in different lengths (immer- For the controller RESOL TLR2 precision temperature sensors in Pt1000-version (FKP and FRP) are used. sion depth) FK...60: 60 mm immersion depth, brass sleeve, chromium- FK: 1,5 m long weather- and temperatureproof siliconcable plated for temperatures from -50 °C ...+180 °C, preferably for the... -
Page 5: Installation
TLR2 store charge controller 2. Installation Attention! Ensure separation from power 2.1mounting supply before opening the hou- sing The mounting has to be made only in dry interiors. Keep in mind that the controller musn’t be installed at a place where... -
Page 6: Operation And Function
TLR2 store charge controller 2.3 example of use TLR2 Temp. Sensor Pt1000 L’ 15 16 3 Operation and functions 3.1 setting switch The controller is operated by 3 push-buttons below the dis- play.The forward-button (1) serves the function of scrolling forward through the display menu or raising the set values. -
Page 7: Indication Channel To
TLR2 store charge controller 3. 8 setting channel TO When the upper store temperature SU falls below the setted value TO, the controller switches on the relay/pump and loads the store. The display shows and the status- LED glows green. -
Page 8: Tips For Debugging
TLR2 store charge controller 5. tips for fault location PLease check the following if the controller does not work properly: Attention! 1. power supply Ensure separation from power supply before opening the hou- In case that the operation control lamp is lapsed please sing check the power supply of the controller.
