2.

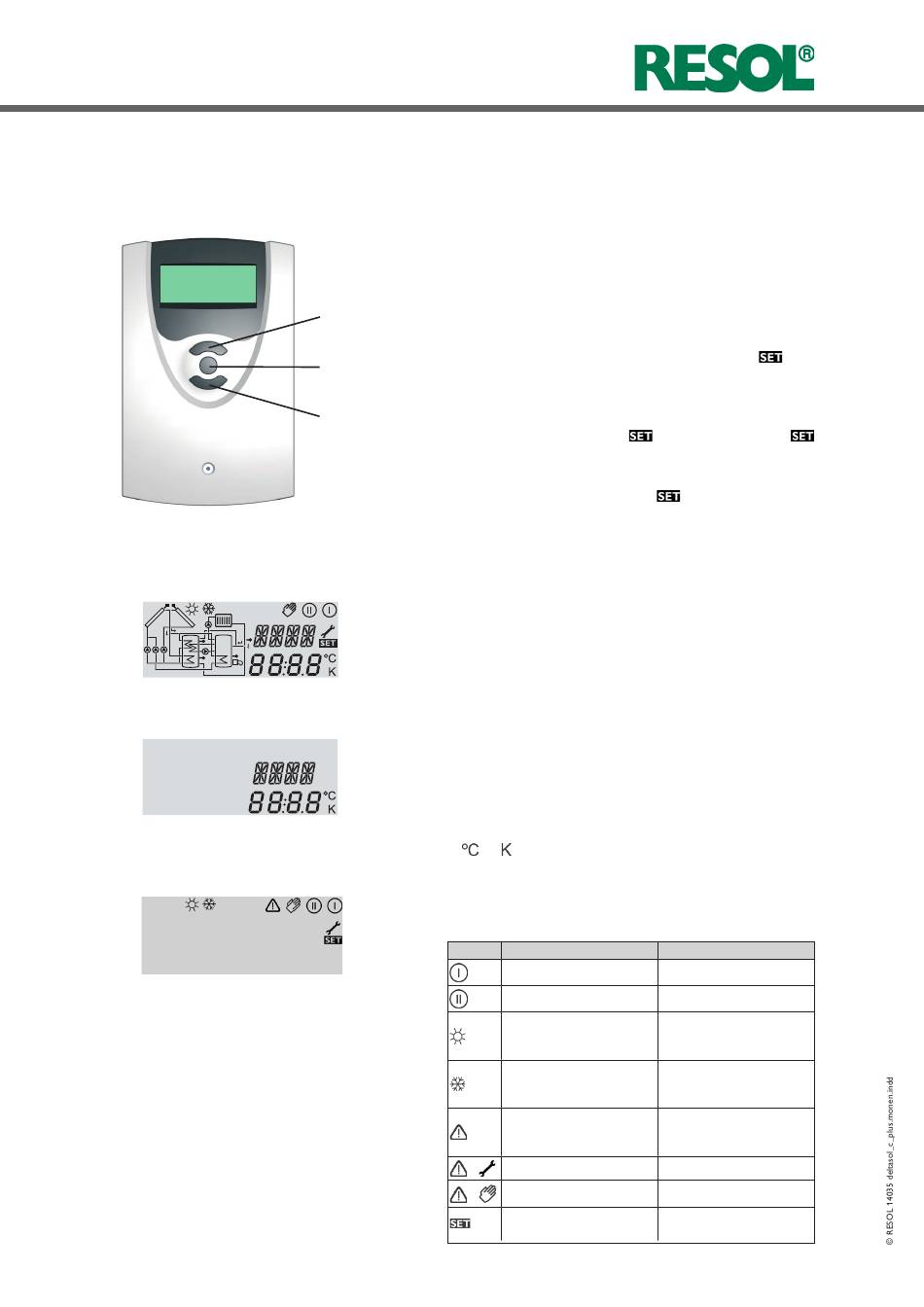

Operation and function

2.1

Buttons for adjustment

2.2 System-Monitoring display

$
Monitoring-Display

2.2.1 Channel display

channel display

2.2.2 Toolbar

toolbar
10
|
1
forwards
SET
3
(selection/adjust-
ment mode)
2
backwards
ê
!
$
Connect the controller to the mains. The controller is in
an initialisation phase. After this phase, the controller is in
automatic operation with factory settings.
The controller is operated via the 3 push buttons below the
display. The forward-button (1) is used for scrolling forward
through the menu or to increase the adjustment values. The
backward-button (2) is similarly used for scrolling backwards
and reducing values.
In order to access the adjustment mode, scroll down in the
display menu and press the forward button (1) for approx.
2 seconds after you have reached the last display item. If
an adjustment value is shown on the display, the
is displayed. Now, you can access the adjustment mode by
using button 3.
— Press buttons 1 and 2 in order to select a channel
— Briefly press button 3,
-mode)
— adjust the requested value by pressing the buttons 1 and 2
— Briefly press button 3, so that
the adjusted value will be saved.
The system monitoring display consists of 3 ranges: The
channel display, the toolbar and the system-screen
(active arrangement).
The channel display consists of 2 lines. The upper line is an
alpha-numeric 16-segment display (text display) for display-
ing channel names and menu items. In the lower 7-segment
display, the channel values and the adjustment parameters
are displayed.
Temperatures and temperature differences are indicated
in or .
The additional symbols in the toolbar indicate the actual
system status.
symbol normal
relay 1 active
relay 2 active
store maximum limitation
active / maximum store
temperature exceeded
antifreeze function active
+
+
icon
appears (flashing) (
permanently appears,
flashing
collector cooling function active
recooling function active
collector minimum limitation
active
antifreeze function active
collector emergency shut-
down active or store emer-
gency shutdown active
sensor fault
manual mode
change of adjustment channel
SET-mode
