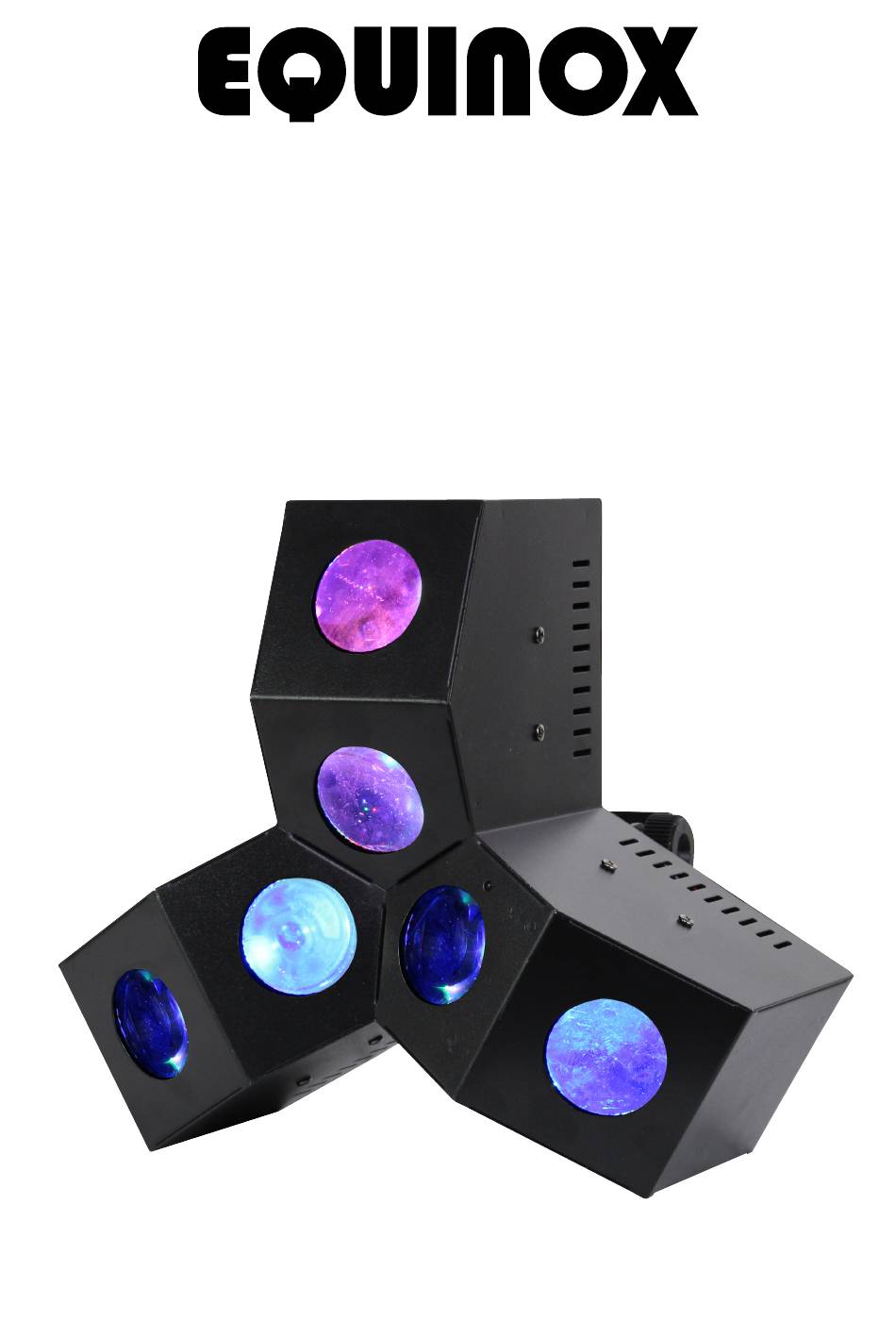

- Page 1 Six Shooter MKII User Manual Order code: EQLED081...
-
Page 2: Safety Advice

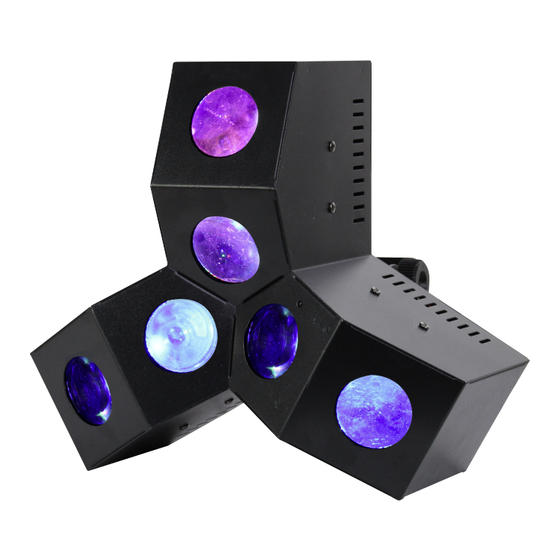

Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Six Shooter MKII Delivering a room filling effect the Six Shooter forms the ideal centrepiece for any DJ or club. The 6 lenses produce crisp beams of light that cut through the room, crisscrossing and pulsing to the beat of the music. In addition to the built-in programs there are a variety of flexible control options including master/slave, auto run, sound active or DMX, including an easy-to-use single channel mode. • 24 x 3W LEDs (R:6, G: 6, B: 6, A: 6) • DMX channels: 1 or 4 selectable • Sound active, auto and master/slave modes • Built-in programs • Supplied with hanging bracket • 4 push button menu with LED display • IEC power input/output • 3-Pin XLR input/output Specifications Power consumption Power supply 100~240V, 50/60Hz Fuse F3A 250V Dimensions 312 x 361 x 250mm Weight 4.1kg Order code EQLED081 361mm 250mm www.prolight.co.uk...
-
Page 4: Technical Specifications
Technical specifications www.prolight.co.uk 01 - Hanging bracket 06 - Slave LED 11 - IEC power input 02 - Mic 07 - Master LED 12 - IEC power output In the box: 1 x fixture, 03 - LED display 08 - Sound LED 13 - Fuse: F3A 250V 1 x power cable & 04 - Function buttons 09 - 3-Pin DMX input 14 - Earth point 1 x user manual 05 - DMX LED 10 - 3-Pin DMX output 15 - Safety eye www.prolight.co.uk Six Shooter User Manual MKII... -
Page 5: Master/Slave Mode
Operating instructions DMX mode: Addr To access the DMX mode, press the “MODE” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the desired DMX AOO1-A512 address from . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. 1 channel mode: 4 channel mode: Channel Value Function Channel Value Function 000-007 Blackout Blackout 008-067 Show (Program 1) 001-013 Auto shows 068-127 Show (Program 2) 014-255 Manual show select 128-187 Show (Program 3) - Slow motion mode 000-255 Chase speed (slow-fast) Sound active (188 = Low sensitivity, No function 188-247 247 = High sensitivity... -
Page 6: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 7: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interferance. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Six Shooter User Manual MKII...
