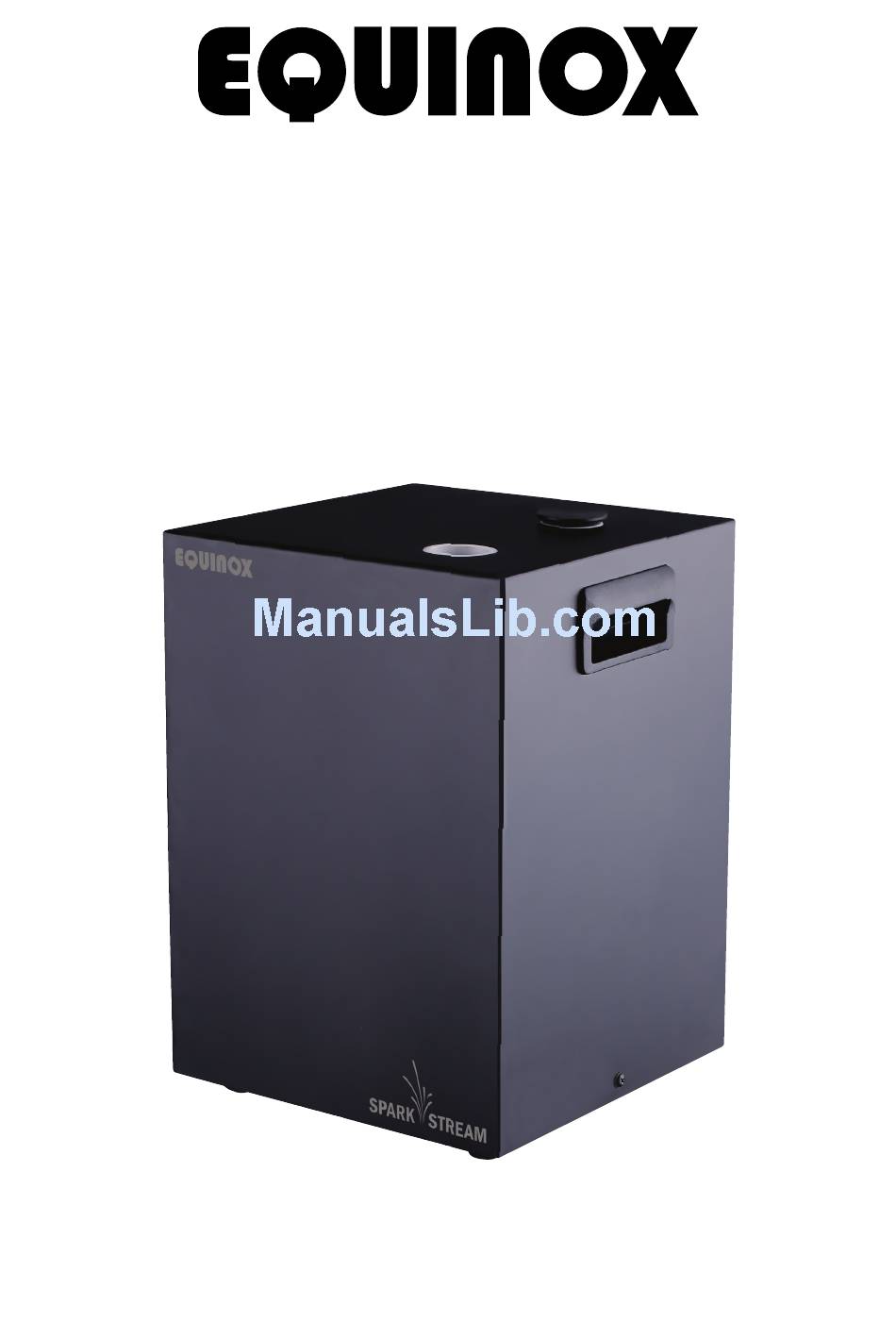

- Page 1 Spark Stream User Manual Order code: EQLED351...
-
Page 2: Safety Advice
• Do not block the air intake/outlet or the spark outlet when NO USER SERVICEABLE PARTS. operating as this will cause damage to the unit. • This fixture is for professional use only - it is not designed for or • This unit produces a dust like fallout. suitable for household use. The product must be installed by a • Do not look into the spark outlet. qualified technician in accordance with local territory regulations. • Always disconnect the power from the mains when equipment is The safety of the installation is the responsibility of the installer. not in use or before cleaning! Only handle the power-cable by the The fixture presents risks of severe injury or death due to fire plug. Never pull out the plug by pulling the power-cable. hazards, electric shock and falls. • Make sure that the available mains supply voltage • WARRANTY: One year from date of purchase. is between 220~240V AC, 50Hz. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. Before filling the unit power the unit down and disconnect the mains. Only use Equinox Spark Stream Granules. Other granules/powders may cause clogging and void the guarantee. Always make sure there is sufficient granules in the hopper and the hopper lid is installed correctly before operating. Operating this sparks machine without granules will cause damage to the fixture as well as over heating of the heater. Operate the unit only after you have familiarised yourself with its functions. Do not permit operation by persons not qualified for operating the unit and always empty the hopper and use the original packaging if the unit is to be transported. www.prolight.co.uk Spark Stream User Manual... - Page 3 SPARK OUTLET 210mm 01 - LED display 02 - Function buttons 03 - Power on/off switch 04 - PowerCON input 05 - PowerCON output CAUTION! DO NOT OPERATE WITHOUT EQUINOX SPARK STREAM POWDER. EXTREMELY HOT, DO NOT TOUCH OR 06 - Fuse F5A 250V LOOK DIRECTLY INTO THE OUTPUT NOZZLE. KEEP AT LEAST 3m DISTANCE. www.prolight.co.uk 07 - 5-pin DMX input 08 - 5-pin DMX output 09 - Cooling fan 10 - Spark outlet...
-
Page 4: Installation
When installing the unit, make sure there is no highly flammable material (decoration articles etc) within a minimum distance of 3m DANGER TO LIFE! Disconnect from the mains before starting maintenance Cleaning and maintenance: We recommend a frequent cleaning of the unit. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents! During operation the Spark Stream unit does produce a small amount of dust from the granules that generate the sparks. This dust can easily be swept or blown away and does not cause any harm to hard surfaces or human skin. It is recommended that the sparks outlet is cleaned after each use to prevent build-up of granules. To do this make sure the fixture is powered off, disconnected from the mains supply and left to cool for a minimum of an hour. Now remove any granules from the hopper. Once the hopper is empty use a nylon pipe cleaning brush to clean the inside of the outlet pipe. If any granule deposits remain in the bottom of the pipe turn the unit upside down to allow them to fall out. There are no serviceable parts inside this unit except for the fuse. Maintenance and service operations are only to be carried out by authorized dealers. www.prolight.co.uk Spark Stream User Manual... -
Page 5: Flammable Materials
Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing. Should you need any spare parts, only use genuine parts. Should you have any further questions, please contact your dealer. Air Inlet: The unit has 1 main air vent on the underside of the unit that is used to keep the machine cool during operation. Do not cover the unit with anything that may restrict this. To maintain a clear air flow into the unit, ensure the feet aren’t removed and the unit is positioned on a flat surface. Clear any residual dust that may have built up near the inlet regularly. Preheating: The unit has a preheat function on startup. The unit takes approximately 8 minutes to reach the required temperature to operate. Granules: The unit and the granules must be kept dry at all times to ensure safe and successful use. Any unused granules should be stored in a sealed bag where they cannot be exposed to any moisture. Any granules that do come into contact with water should be disposed of immediately and must not be used. Flammable materials: Whilst the unit and the effect are extremely safe, please do not place any flammable materials within 3m distance of the unit. Please also ensure that the units are not covered with anything that may impact the flow of sparks during operation. Transport: During transport all units should be stored in a flight case or other suitable container with sufficient padding to ensure no damage occurs during transit. www.prolight.co.uk Spark Stream User Manual... -
Page 6: Operation
8. 8 . 8 . 8 Button B – Low continuous output Low output 2.5m 8 minutes (approx.) 8. 8 . 8 . 8 Button C – Medium continuous output Medium output 3.5m 7 minutes (approx.) 8. 8 . 8 . 8 High output 6 minutes (approx.) Button D – High continuous output 8. 8 . 8 . 8 - Example of what the display will show) www.prolight.co.uk Spark Stream User Manual... -
Page 7: Frequently Asked Questions (Faq)
How safe is the machine? The Spark Stream has been built to eliminate the fire risks that come with normal pyrotechnics. No large safety or exclusion zones are required as the heated granules cool instantly when they come in contact with the air and are safe to touch. All of the materials are completely non-hazardous. How does it work? The effect is simply created by heating the titanium alloy granules which are then blown from the spark outlet opening on the top of the unit to create a fountain of sparks. The height and intensity of the sparks can be adjusted via the wireless remote or a DMX controller using a 5-pin DMX cable. Each unit requires just 1 DMX channel for operation so it can easily be combined with any other lighting or sound effects which are being controlled from your DMX desk. Where can I use the Spark Stream? The effect has been designed for indoor use as it is extremely safe and does not present a fire risk, meaning that it can be safely used in practically any venue. The unit can be used outdoors, however it must be kept completely dry. If any moisture or rain gets into the unit the powder will begin to clog and the internal mechanisms may become damaged. Is there any fallout/residue? During operation the Spark Stream unit does produce a small amount of dust from the granules that generate the sparks. This dust can easily be swept or blown away. Certain surfaces such as carpets, soft furnishings or delicate surfaces may not be suitable. If there is any uncertainty about the suitability of the surface this machine should not be used. How quick is setup and installation? Multiple units can be set up extremely quickly and linked via DMX and up to 4 via power input/outputs. Once the powder has been poured into the machine and the unit is powered on,... -
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spark Stream User Manual...
