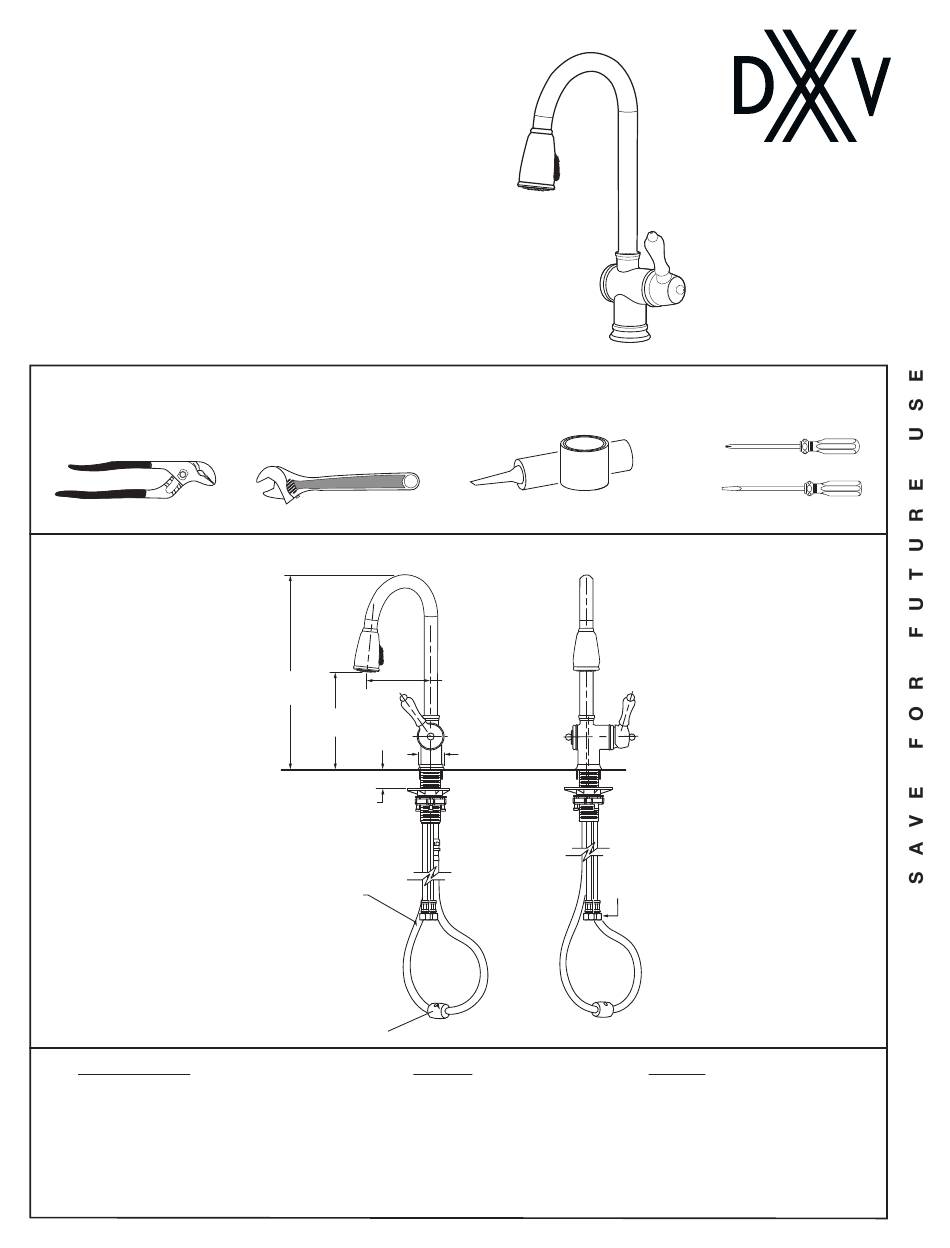

INSTALLATION INSTRUCTIONS

Victorian
Single Control Kitchen Faucet
with Pull-Down Spray
Model D35402300
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Channel Locks

ROUGHING-IN DIMENSIONS:

• For reference
NOTE: Bore hole size is 1-3/8"
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Adjustable Wrench
17-21/32"
(451 mm)
9-9/32"
(235 mm)
2-3/16"
(53.8 mm)
SPRAY HOSE
WEIGHT
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Plumbers' Putty or Caulking
8-3/32"
(210 mm)
2-1/4" D.
(57 mm)
3/8"
COMPRESSION
- 1 -
Phillips Screwdriver
Flat Blade Screwdriver
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965538 Rev. 1.6 (4/17)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Victorian D35402300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DXV Victorian D35402300

Summary of Contents for DXV Victorian D35402300

  • Page 1: Installation Instructions

    Victorian Single Control Kitchen Faucet with Pull-Down Spray Model D35402300 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
  • Page 2 INSTALL FITTING Turn off hot and cold wate CAUTION supplies before beginning. • Make certain the O-RING (2) is properly seated in recess of FAUCET BASE (3). • Insert HOSES (4) and SHANK (9) through center hole of sink or mounting surface. •...
  • Page 3 CONNECT SPRAY HOSE • Slide COUPLING NUT (1) of SPRAY HOSE (2) onto end of OUTLET (3). Tighten with wrenchesto make a water tight connection. • With HAND SPRAY seated in faucet body,install WEIGHT (4) onto HOSE (2) using two SCREWS (5). Locate the WEIGHT (4) two feet (2') from the underside of the sink deck.Tighten SCREWS (5) firmly.
  • Page 4 Victorian Single Control Kitchen Faucet with Pull-Down Spray MODEL NUMBER D35402300 Replace the “YYY” with appropriate finish code POLISHED CHROME CARBON BRONZE ULTRA STEEL M964665-YYY0A SPOUT SUB-ASSEMBY M964745-YYY0A M964406-0070A PULL DOWN SPRAY CARTRIDGE H962078.191 CARTRIDGE NUT M964668-YYY0A DECORATIVE RING KIT M964669-YYY0A ESCUTCHEON KIT H961342.XXX...
