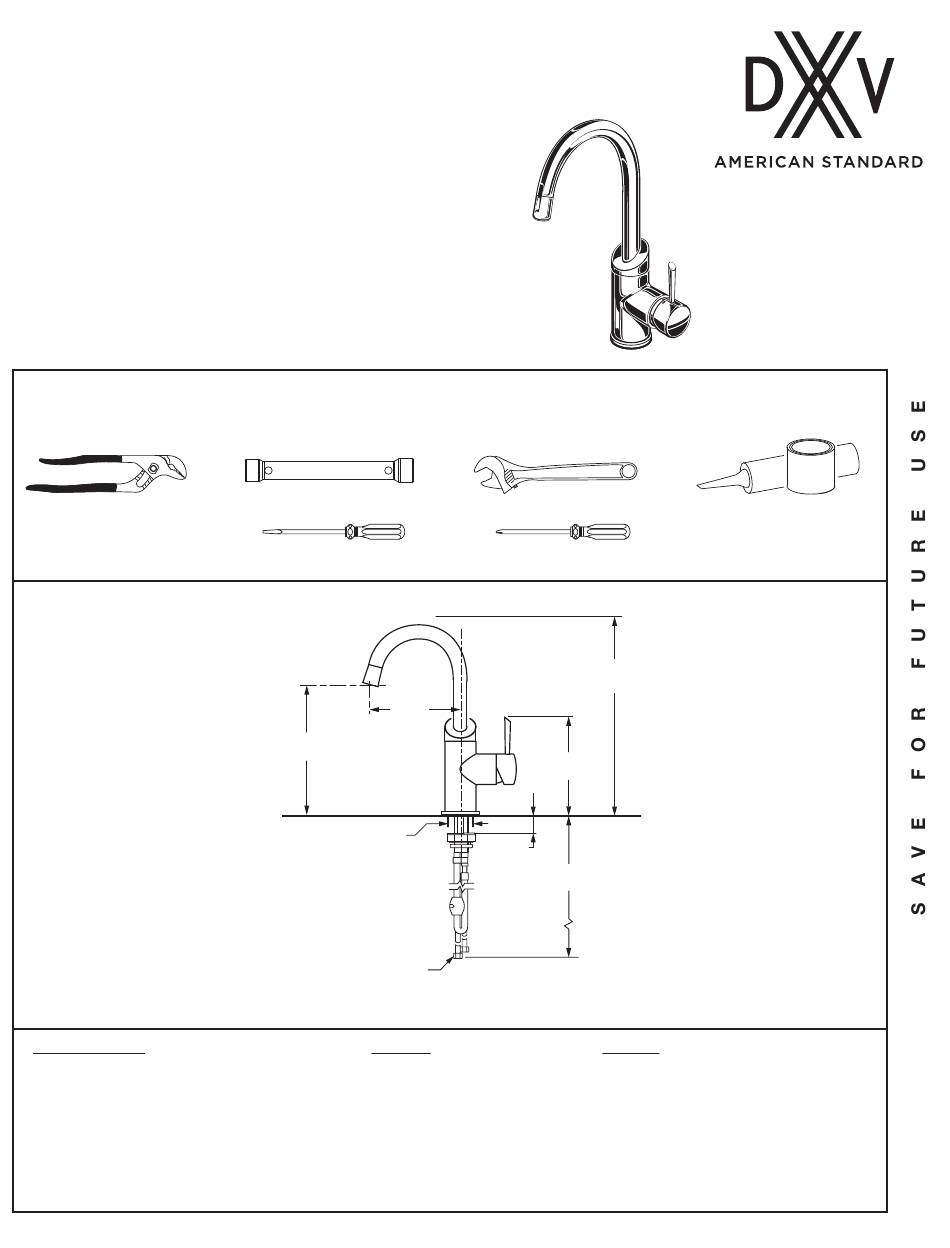

INSTALLATION INSTRUCTIONS
Fresno
Single Control Bar Faucet
™
with Pull Down Spray
Model D35403.410
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks
ROUGHING-IN DIMENSIONS:
• For reference
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Basin Wrench
Regular Screwdriver
5-5/16"
(135mm)
7-7/16"
(188mm)
1-3/8" to 1-1/2"
(33 to 38mm)
DIA. MOUNTING HOLE
3/8" (10mm) COMPRESSION
FLEXIBLE SUPPLIES
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
1-800-395-1498
www.DXV.ca
Adjustable Wrench
Phillips Screwdriver
12-7/16"
(315mm)
6"
(153mm)
2"
(51 mm)
28-1/2"
(723mm)
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
- 1 -
Plumbers' Putty or Caulking
M 96555 5 Re v. 1. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV D35403.410
Summary of Contents for DXV D35403.410
-
Page 1: Installation Instructions
Fresno Single Control Bar Faucet ™ with Pull Down Spray Model D35403.410 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores. - Page 2 INSTALL FITTING CAUTION Turn off hot and cold water supplies before beginning. • Make certain the O-RING SEAL (1) is properly seated in recess of faucet body. • Insert supply HOSES (2), SHANK (3) and SPRAY HOSE (4) through center hole of sink or mounting surface. •...
- Page 3 MAKE WATER SUPPLY CONNECTIONS • Turn off hot and cold water supplies before beginning. B L U E R E D S T R I P E S T R I P E • Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8"...
- Page 4 TEST INSTALLED FAUCET • Move HANDLE (1) into "off" position. • Unthread SPRAY HOSE (3) from SPRAY (2). • Turn on water supplies and check connections for leaks • Hold HOSE END (3) in sink and operate HANDLE (1) on and off, hot and cold to ush water lines thoroughly.
- Page 5 Fresno ™ Single Control Bar Faucet with Pull Down Spray MODEL NUMBER D35403.410 Replace the "YYY" with POLISHED CHROME ULTRA STEEL M962759-0020A SPRAY HOSE WITH SEALS M964748-YYY0A M964724-YYY0A SPOUT KIT PULL DOWN SPRAY M962648-0070A SPOUT BUSHING M962652-0070A & O-RING KIT...
