Example; Introduction / Room Layout - Polycom Vortex Series Application Notes

E
XAMPLE
I / R L
NTRODUCTION OOM AYOUT
This example illustrates a 38 ft. X 24 ft. X 10 ft. conference room that has 7 tabletop microphones
and 2 stereo loudspeakers. The system includes an EF2280 matrix mixer, a VSX 8000 video codec,
and a stereo program audio source. There is no sound reinforcement in this room.

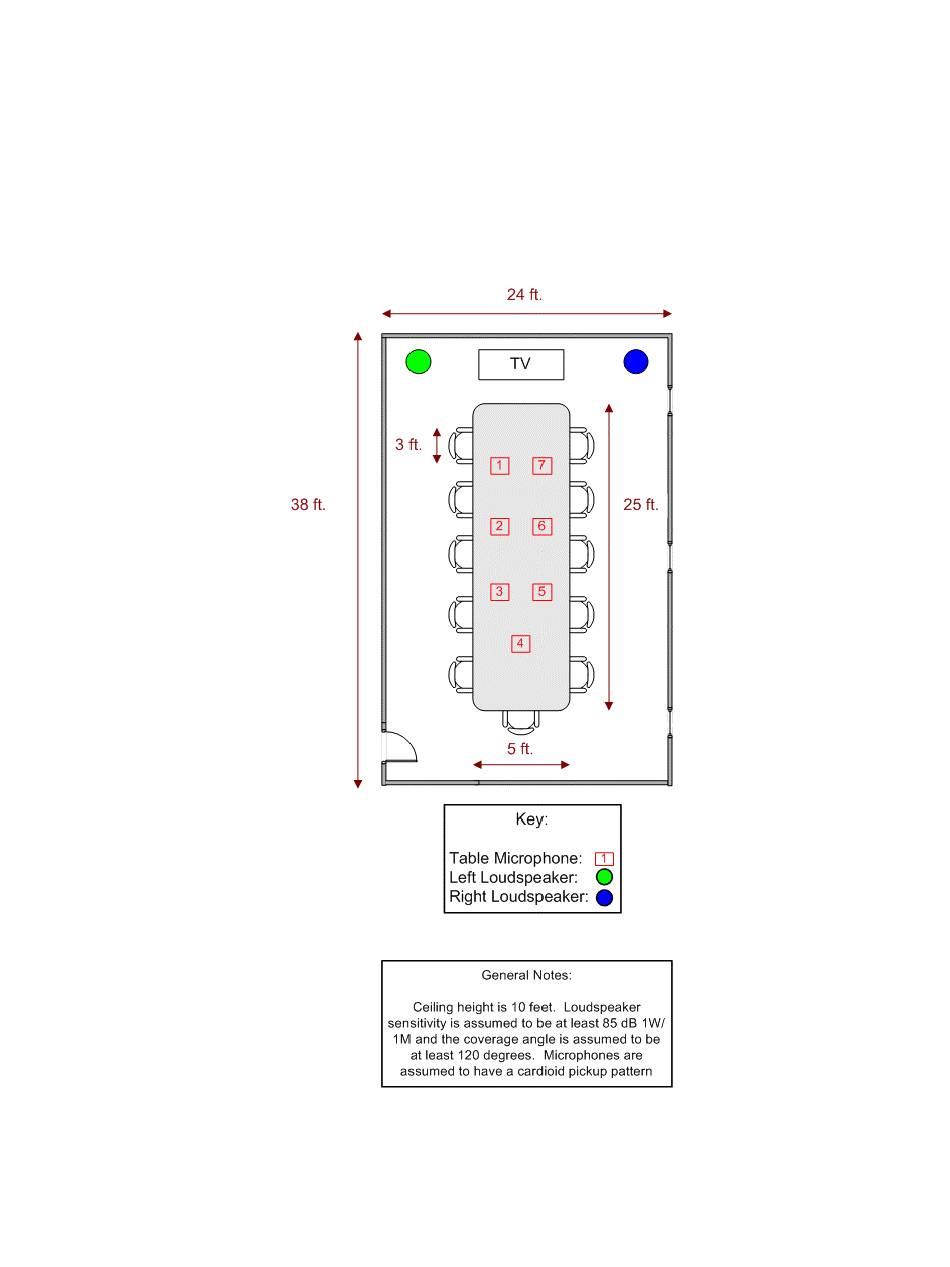

Figure 23. Stereo room layout with the VSX 8000 and Vortex.
26
