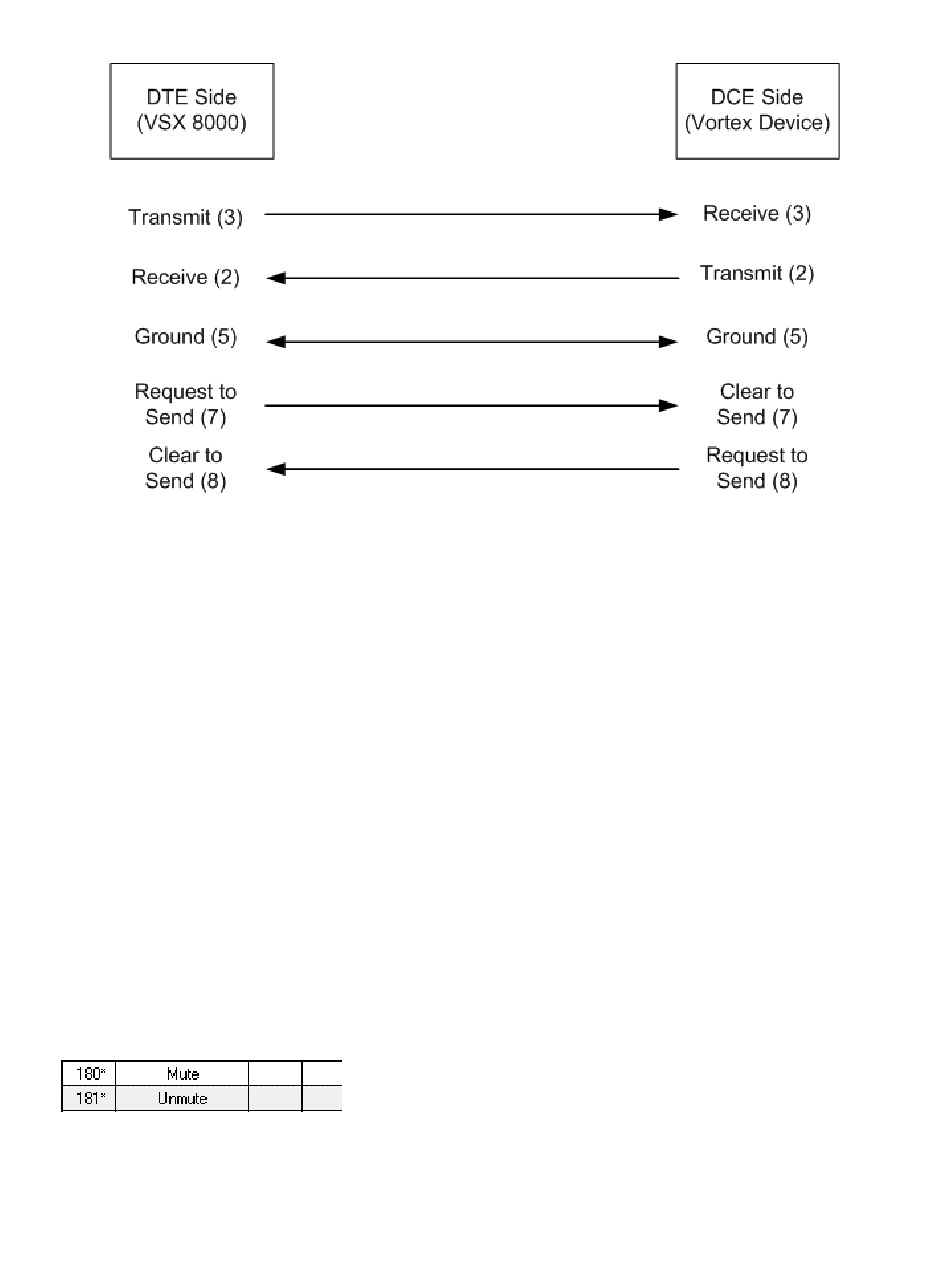

Figure 3. The RS-232 serial port wiring diagram.
Match the baud rate and flow control requirements of the VSX 8000 device to the baud rate and
flow control settings of the Vortex Device. (When communicating with a Vortex device at baud
rates higher than 9600, we recommend the use of flow control between the RS-232 device and the
Vortex Device). Go to Vortex System Settings on the LCD display, select the Enter key, and use
the Up or Down buttons to scroll until you see Baud Rate. Once that parameter is set, use the Up
or Down buttons to scroll until you see Flow Control.
2.) C
A
M
V
D
(
)
REATE THE
PPROPRIATE
ACROS IN THE
ORTEX
EVICE
S
M
UTING
As previously mentioned, the Mute button on the Remote Control sends a command to execute
Macro 180 and Macro 181. Here is an example of how to write Muting Macros for a system with
4 microphones and an EF2241:
First, label Macro 180 as "Mute" and Macro 181 as "Unmute":
Figure 4. Macro labeling.
10
