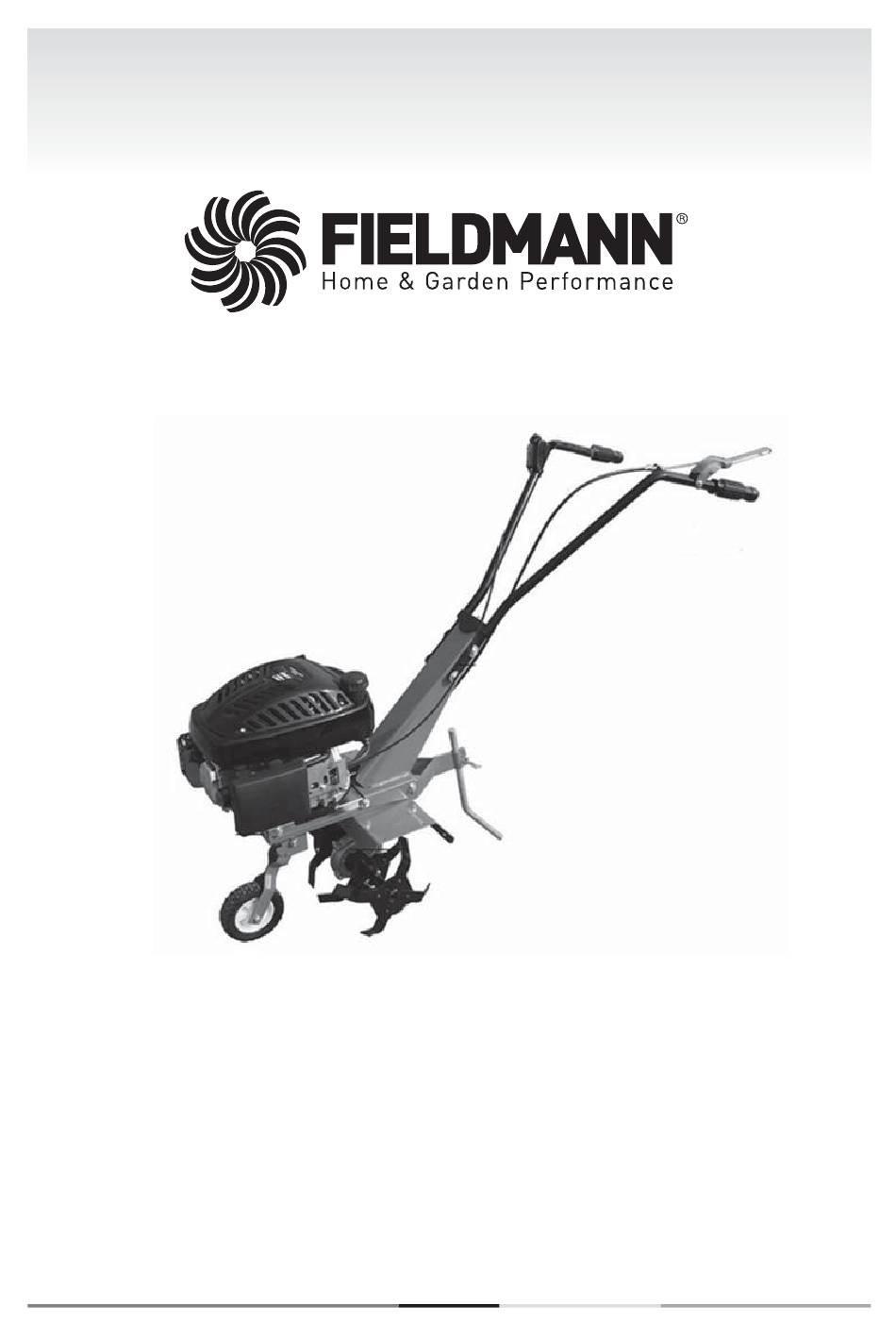

- Page 1 FZK 6010 B...
-
Page 2: Table Of Contents
Table of Contents Petrol cultivator USER'S MANUAL Thank you for purchasing this petrol cultivator. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .........................4 Important safety information ..........................4 Packaging ..................................4 User's manual ................................4... -
Page 3: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZK 6010 B... -
Page 4: User's Manual
Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE POWER TOOL Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Rotating parts! The blades of the cultivator stop only some time after the motor is shut off. - Page 5 Always maintain a distance from moving parts. Travel along the slope on contours, not up and down. Conforms to all relevant European directives. Petrol is extremely fl ammable and therefore allow the engine to cool down for 2 minutes before adding more fuel. FZK 6010 B...
-
Page 6: Description Of The Cultivator
Description of the cultivator | Assembly/Preparation 3. DESCRIPTION OF THE CULTIVATOR (Fig. 1) 1. Starting cord Fig. 1 2. Motor On/Off switch 3. Blade engagement lever 4. Metal handles 5. Drag stake 6. Cultivation blades 7. Transport wheel 8. Fuel primer bulb –... -
Page 7: Assembling The Cultivator
The handle with the cultivating blade control lever must be on the left side. 2. Attach both handles on each side using two bolts - Fig. 5. A washer must be placed underneath the head of the bolt. Fig. 5 Fig. 4 FZK 6010 B... -
Page 8: Before Starting The Cultivator
Before starting the cultivator 6. BEFORE STARTING THE CULTIVATOR ADDING OIL The cultivator is supplied without motor oil. Before fi rst start up, add motor oil SAE30 or 15W-40 (approx 600 ml) according to the following instructions. Fig. 6 1. When pouring in the oil, place the cultivator on a level surface. -
Page 9: Before Turning On The Petrol Cultivator
Caution! A small amount of smoke may be emitted when the engine is started up for the fi rst time as the protective layers in the engine are burnt off. This is completely normal and does not constitute a problem. FZK 6010 B... -
Page 10: Support Wheel And Drag Stake
Controlling and operating the cultivator SUPPORT WHEEL AND DRAG STAKE For moving the cultivator, only use the support wheel. Prior to starting work, fold the wheel up (Fig. 8). However, it may also be used during work to control the depth of cultivation. The drag stake helps work by holding the cultivator back. -
Page 11: Changing The Motor Oil
INSTRUCTIONS FOR USE All nuts, pins and bolts must be properly tightened so that the machine is in a safe and operational condition. When working with the cultivator, wear long pants and solid footwear. FZK 6010 B... -
Page 12: Maintenance
Safety instructions | Maintenance Never start the cultivator in enclosed or poorly ventilated areas where fumes could accumulate. Emissions from the engine contain carbon monoxide, which is life threatening. Work only during suffi cient light conditions (in daylight or suffi cient artifi cial lighting). Do not use the cultivator when it is raining. -
Page 13: Servicing
Screw out the spark plug and pour a small amount of motor oil into the socket. Gently pull the pull cord 2 to 3 times. Use a clean cloth to clean the exterior surfaces. Store the machine in a clean dry location. FZK 6010 B... -
Page 14: Technical Information
Technical specifi cations 11. TECHNICAL SPECIFICATIONS Engine type OHV, air cooled, 4-stroke Rated power 2.50 kW Engine rpm 3000 rpm Displacement 139 cm Starting Pull cord Fuel tank volume 1.2 litres Recommended fuel Petrol - lead-free, at least 95 octane Oil tank volume 0.6 l Recommended oil... -
Page 15: Declaration Of Conformity
Manufacturer: FAST ČR, a.s. Černokostelecká 2111, 100 00 Prague 10, Czech Republic Tax ID number: CZ26726548 Product/brand: PETROL CULTIVATOR (MOTOR CULTIVATOR) / FIELDMANN FZK 6010 B Type/model: 2.5 kW, 139 cc This product meets the requirement of the directives and regulations below: Electromagnetic Compatibility (EMC) No. -
Page 16: Disposal
Disposal 13. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The machine and its accessories are manufactured from various materials, e.g. metal and plastic. - Page 17 Notes FZK 6010 B...
