RX23W Group
16
32
RENESAS 32-Bit MCU
RX Family/RX200 Series
All information contained in these materials, including products and product specifications, represents
information on the product at the time of publication and is subject to change by Renesas Electronics
Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
through various means, including the Renesas Electronics Corp. website (http://www.renesas.com).
www.renesas.com
Target Board for RX23W User's Manual
Rev.1.02 Nov 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Renesas RX Series

  • Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp.
  • Page 2 Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
  • Page 3 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
  • Page 4 The following documents apply to the Target Board for RX23W. Be sure to refer to the latest versions of these documents. The newest versions of the listed documents are available on the Renesas Electronics Web site.
  • Page 5 Bluetooth Low Energy  The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Renesas Electronics Corporation is under license. Central Processing Unit Dual In-line Package Do Not Fit...
  • Page 6: Table Of Contents

    Table of Contents 1. Overview ..........................7 Package Components ..........................7 Purpose ..............................7 Features ..............................7 Preparation ..............................7 Target Board for RX23W: Table of Specifications ..................8 Block Diagram ............................9 2. Board Layout ........................10 3. Parts Layout ........................11 4.
  • Page 7: Overview

    Thank you for purchasing the Target Board for RX23W evaluation tool from Renesas (hereinafter referred to as “this product”). This product consists of the Target Board for RX23W (RTK5RX23W0C00000BJ). Purpose This product is an evaluation tool for a Renesas MCU. This manual descries hardware specifications, how to set switches, and basic setup procedures. Features Programming of the Renesas MCU •...
  • Page 8: Target Board For Rx23W: Table Of Specifications

    Target Board for RX23W 1. Overview Target Board for RX23W: Table of Specifications Table 1-1 shows the specifications of this product. Table 1-1 Target Board for RX23W Specification Table Item Specification Part No.: R5F523W8ADNG Evaluation MCU Package: 56-pin QFN On-chip memory: 512-KB ROM, 64-KB RAM, 8-KB E2 data flash memory Size: 54.0 mm x 90.0 mm Board size Thickness: 1.6 mm...
  • Page 9: Block Diagram

    Target Board for RX23W 1. Overview Block Diagram Figure 1-1 shows the block diagram of this product. Arduino™ Pmod™ connector header x 2 connector connector Emulator Evaluation MCU antenna circuit External power- supply header Power Reset switch Main clock indicator User switch Sub-clock serial port...
  • Page 10: Board Layout

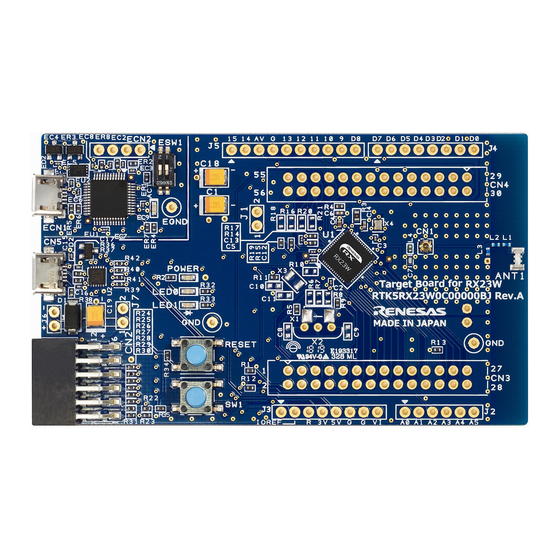

    Target Board for RX23W 2. Board Layout 2. Board Layout Figure 2-1 shows the external appearance of the top side of this product. Emulator reset switch ACT LED Arduino™ UNO USB connector headers (emulator) Power indicator MCU headers Evaluation User LED USB connector RF block (USB serial)
  • Page 11: Parts Layout

    Target Board for RX23W 3. Parts Layout 3. Parts Layout Figure 3-1 shows the parts layout of this product. 90.0mm Figure 3-1 Parts Layout R20UT4634EJ0102 Rev.1.02 Page 11 of 33 Nov.27.19...
  • Page 12: Operating Environment

    4. Operating Environment Figure 4-1 shows the operating environment of this product. Install the IDE from the following URL on the host PC. The installer automatically installs all required drivers along with the IDE. https://www.renesas.com/development-tools USB cable Target Board for RX23W...
  • Page 13: User Circuits

    Target Board for RX23W 5. User Circuits 5. User Circuits Evaluation MCU The MCU specifications for the power supply, system clock, and reset at the time of shipment are as follows. Power supply: Fixed 3.3 V (including the analog power supply) •...
  • Page 14: Emulator

    To use the emulator, make the corresponding switch setting in Table 5-1. The shape of the emulator connector (ECN1) is USB micro-B for the IDE and for the Renesas Flash Programmer (RFP). Connect the emulator connector to the computer by a USB cable. If the power supply on the host side is on, the power is supplied to this product at the same time as connection of the cable.
  • Page 15: Usb-To-Serial Conversion

    Target Board for RX23W 5. User Circuits USB-to-Serial Conversion USB connector CN5 is connected to the USB-to-serial conversion module from FTDI and can be used as a virtual COM port. Table 5-2 shows the connection relationship of USB-to-serial signals. Table 5-2 Names of the USB-to-Serial Signals Signal Name Function and Usage Port...
  • Page 16: External Power-Supply Header

    Target Board for RX23W 5. User Circuits External Power-Supply Header When more current is required than the USB is capable of supplying, use the external power-supply header (J6) to supply power. The usable voltage is 3.3 V. When this header is to be used, remove the pattern for cutting (SS19) on the soldered side, electrically separating the emulator from the target.
  • Page 17: Pmod Connector

    Target Board for RX23W 5. User Circuits Pmod Connector A Pmod connector (CN2) is connectable to the evaluation MCU via a type 2A Pmod interface. Note that the pin assignments of the Pmod connector differ from those of other headers. Figure 5-6 and Table 5-3 show the pin assignments of the Pmod...
  • Page 18: Arduino Uno Headers

    Target Board for RX23W 5. User Circuits 5.10 Arduino UNO Headers For the J2, J3, J4, and J5 headers, through holes are assigned with a pitch of 2.54 mm and these headers are connected to the evaluation MCU according to the Arduino UNO R3 specification. Table 5-4, Table 5-5, Table 5-6, and Table 5-7 show the signal specifications of the Arduino...
  • Page 19 Target Board for RX23W 5. User Circuits Table 5-6 Pin Assignments of J4 (8-Pin Digital Connector) Pin No. Signal Name Specification Signal Name Pin No. D0/RX GPIO/RxD PC2/RxD5 D1/TX GPIO/TxD PC3/TxD5 GPIO D3/PWM/INT GPIO/PWM/IRQ PB7/MTIOC3B D4/INT GPIO/IRQ PB1/IRQ4 D5/PWM/INT GPIO/PWM/IRQ P14/MTIOC3A/IRQ4 D6/PWM GPIO/PWM...
  • Page 20: Current Measurement Header

    Target Board for RX23W 5. User Circuits 5.11 Current Measurement Header The current measurement header (J7) is used to measure the current drawn by the evaluation MCU (an actual header component is not mounted on the board as shipped). The current drawn can be measured by connecting an ammeter to the evaluation MCU.
  • Page 21 Target Board for RX23W 5. User Circuits Soldered Connected Removed Restored by soldering Figure 5-9 Examples of States of Patterns for Cutting R20UT4634EJ0102 Rev.1.02 Page 21 of 33 Nov.27.19...
  • Page 22: Configurations

    Target Board for RX23W 6. Configurations 6. Configurations Modifying the Target Board for RX23W This section describes how to change the setting of this product by using option-link resistors. An option-link resistor is a 0-Ω surface-mount resistor, which is used to short-circuit or isolate a part of circuits. The subsequent sections contain lists of option-link resistors for individual functions.
  • Page 23: On-Chip Oscillator

    Target Board for RX23W 6. Configurations On-Chip Oscillator Table 6-3 and Table 6-4 show the option-link resistors for the operation of the on-chip oscillator. Table 6-3 Option-Link Resistors for the HOCO Setting of the HOCO Mounted Not Mounted Remark Oscillating R5, R9 R6, R8 ...
  • Page 24: Handling Precautions

    Target Board for RX23W 7. Handling Precautions 7. Handling Precautions Adding Load When load is added while power is being supplied via the USB, the maximum current is 300 mA during operation at 3.3 V. When load is added while power is being supplied externally, the maximum current is 500 mA regardless of the operating voltage.
  • Page 25: Developing Code

    Target Board for RX23W 8. Developing Code 8. Developing Code Using the e studio Figure 8-1 shows the settings of the e studio when creating a new project for the Target Board for RX23W. [Debug hardware]: Select [E2 Lite (RX)]. •...
  • Page 26: Using Cs

    Target Board for RX23W 8. Developing Code Using CS+ Figure 8-2 and Figure 8-3 show the settings of CS+ when creating a new project for the Target Board for RX23W. [Using Debug Tool]: • Select [RX E2 Lite] from [Using Debug Tool] in the [Debug] menu. Figure 8-2 Panel for Selecting the Debug Tool [Power target from the emulator]: Select [No].
  • Page 27: Additional Information

    Copyright This document may be, wholly or partially, subject to change without notice. All rights reserved. Duplication of this document, either in whole or part is prohibited without the written permission of Renesas Electronics Europe Limited. © 2019 Renesas Electronics Corporation. All rights reserved.
  • Page 28: Certification Of Compliance

    Japan: Type certification (authentication number: 001-P01398) Europe: CE (RE) North America: FCC (FCC ID: 2AEMXRX23WTBQ56), ISED (20194-RX23WTBQ56) RE Directive Hereby, Renesas Electronics Corporation declares that the radio equipment type RTK5RX23W0C00000BJ is in compliance with Directive 2014/53/EU. R20UT4634EJ0102 Rev.1.02 Page 28 of 33...
  • Page 29 Target Board for RX23W 10. Certification of Compliance FCC/ISED Regulatory Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure).
  • Page 30 Target Board for RX23W 10. Certification of Compliance low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body.
  • Page 31 Revision History Target Board for RX23W User’s Manual Rev. Date Description Page Summary 1.00 Oct.01.19  First Edition issued 1.01 Nov.01.19 Update the Document Title of Application note. P25,26 Added Flash ID Code setting. 1.02 2019.11.27 P29,30 Update FCC/ISED Regulatory...
  • Page 32 Target Board for RX23W User’s Manual Publication Date: Rev.1.02 Nov.27.19 Published by: Renesas Electronics Corporation...
  • Page 33 RX23W Group R20UT4634EJ0102...
