RX26T Group
Renesas RX Family
RX200 Series
All information contained in these materials, including products and product specifications,
represents information on the product at the time of publication and is subject to change by
Renesas Electronics Corp. without notice. Please review the latest information published by
Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.
website (http://www.renesas.com).
www.renesas.com
MCB-RX26T Type C User's Manual
Rev 1.00 August 25, 2023
Advertisement
Table of Contents
Related Manuals for Renesas RX Series
Summary of Contents for Renesas RX Series
- Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.
- Page 2 General Precautions in the Handling of Microprocessing Unit and Microcontroller Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
- Page 3 Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
-
Page 4: Table Of Contents
User’s Manual Renesas RX Family MCB-RX26T Type C User's Manual Contents Overview ..........................3 Presupposition and precautions of this document .................. 3 Product Contents ........................4 Product Order Information ....................... 4 Hardware Configuration and Default Setting ................5 Hardware configuration ........................... 5 Block diagram ............................ - Page 5 Renesas RX Family MCB-RX26T Type C User's Manual Figure of contents Figure 2-1 Product contents ..........................4 Figure 4-1 CPU board block diagram ........................ 6 Figure 4-2 CPU Board Layout ........................... 7 Figure 4-3 Standoffs and Screws assembly ...................... 7 Figure 4-4 Default jumper pin and jumper resistor, LPF setting ..............
-
Page 6: Overview
Renesas RX Family MCB-RX26T Type C User's Manual 1. Overview MCB-RX26T Type C is a CPU board for motor control evaluation. By using this product in combination with an inverter board, motor control using RX26T can be easily performed. 1.1 Presupposition and precautions of this document 1. -
Page 7: Product Contents
Renesas RX Family MCB-RX26T Type C User's Manual 2. Product Contents This kit consists of the following parts. 1. CPU Board (RTK0EMXE30C00000BJ) x1 2. USB Cable x1 3. Screw x4 4. Standoff x4 (1) CPU Board (2) USB Cable (3) Screw... -
Page 8: Hardware Configuration And Default Setting
Debugger E2OB (Onboard debugger circuit) Connector Inverter board connector USB connector for E2 OB SCI connector for Renesas Motor Workbench communication Through hole for CAN communication Through hole for SPI communication Pmod connectors Switch... -
Page 9: Block Diagram
Renesas RX Family MCB-RX26T Type C User's Manual 4.2 Block diagram CPU board T/H for CPU-INV connector BUS_POWER_IN signal USB5V 3.3V Jumper Regulator +5V or 3.3V (AVCC, VCC) E2OB USB connector 3-phase complementary PWM PMOD DC bus voltage signal CPU-INV... -

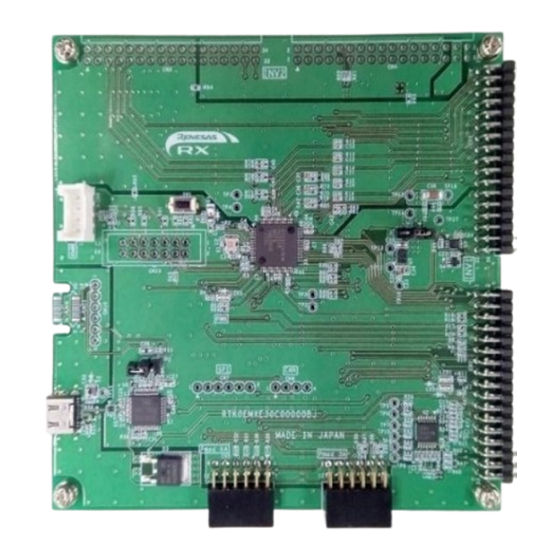

Page 10: Board Layout
Renesas RX Family MCB-RX26T Type C User's Manual 4.3 Board Layout Inverter board connector through hole （for INV2） Invertor board connector （for INV1） RX26T Communication connector Reset SW USB Type-C connector T/H for SPI T/H for CAN Pmod Figure 4-2 CPU Board Layout 4.4 Standoffs and Screws... -
Page 11: Jumper Pin Setting
Renesas RX Family MCB-RX26T Type C User's Manual 4.5 Jumper pin setting Default settings and functions of the jumper pins (JP1,JP2) and jumper resistor, LPF are as follows. Table 4-2 Jumper pin setting of CPU board JP No. Function Setting (function in use) - Page 12 Renesas RX Family MCB-RX26T Type C User's Manual Table 4-3 Jumper resistor and LPF setting of CPU board Function in use resistors Default setting Smart & capacitors INV1 INV2 HV INV IPS *1 Encoder Pmod driver *2 short short open...
- Page 13 Renesas RX Family MCB-RX26T Type C User's Manual Figure 4-4 Default jumper pin and jumper resistor, LPF setting R12UZ0127EJ0100 Rev 1.00 Page 10 of 21 August 25, 2023...
-
Page 14: Hardware Setup
Renesas RX Family MCB-RX26T Type C User's Manual 4.6 Hardware Setup Figure 4-5 show a connection example when using this product with the inverter board kit (product name: MCI-LV-1, model name: RTK0EM0000S04020BJ) and the communication board (product name: MC-COM, model name: RTK0EMXC90S00000BJ). -
Page 15: Cpu Board Specification
(firmware) of RX26T with it. When you write a program, open (remove) JP2 and connect the CPU board to PC with USB cable. E2OB operates as debugger equivalent to E2 emulator Lite. If connecting from Integrated Development Environment or flash programing tool (e.g. Renesas Flash Programmer), set the type of debugger (tool) to “E2 emulator Lite”. -
Page 16: Inverter Board Connector
Renesas RX Family MCB-RX26T Type C User's Manual 5.1.3 Inverter board connector Max 2 inverter boards can be connected to this product. This product has connecter for 1st inverter board, and through holes for 2nd inverter board. 1st inverter board is connected with CN1 and CN2, and 2nd inverter board is connected with CN3 and CN4. - Page 17 Renesas RX Family MCB-RX26T Type C User's Manual Table 5-3 2nd inverter board connector (CN3) pin assignment Pin No. Pin Function RX26T Pin Pin No. Pin Function RX26T Pin AGND - (AVSS) P64/AN210 (*) AGND - (AVSS) P52/AN200 (*) P53/AN201 (*)
-
Page 18: Serial Communication
Figure 5-2 Board connection of CPU board, INV board and COM board 5.1.4 Serial communication For serial communication using Renesas Motor Workbench, the CPU board has SCI connector. Pin assignment for SCI connector is listed in Table 5-5. Table 5-5 SCI connector (CN9) pin assignment Pin No. -
Page 19: Led
Renesas RX Family MCB-RX26T Type C User's Manual 5.1.6 This product has 2 controllable LEDs, so that they can be used for program debug and the system. LED switches ON when output from the corresponding port is “LOW” and switches OFF when output is “HIGH”. -
Page 20: Pmod
Renesas RX Family MCB-RX26T Type C User's Manual 5.1.9 Pmod This product has two connectors for Pmod module connection. Pin assignments are shown in Table 5-9 and Table 5-10. Table 5-9 Pmod Type 3A connector pin assignment (CN6) RX26T port... -
Page 21: Rx26T Pin Function List
Renesas RX Family MCB-RX26T Type C User's Manual 5.2 RX26T pin function list Table 5-11 RX26T pin function list Pin number RX26T pin function Signal function EMLE Emulator IRQ2 HALL_V Emulator GTETRGC/(IRQ4) ENC_Z / CSN_IRQN RES# Emulator XTAL Crystal EXTAL... - Page 22 Renesas RX Family MCB-RX26T Type C User's Manual Pin number RX26T pin function Signal function AN002 AN001 AN000 AVCC AVSS IRQ1 HALL_U R12UZ0127EJ0100 Rev 1.00 Page 19 of 21 August 25, 2023...
-
Page 23: Design And Manufacture Information
MCB-RX26T Type C User's Manual 6. Design and Manufacture Information You can obtain information on the design and manufacture of this product from renesas.com. 7. Website and Support In order to learn, download tools and documents, apply technical support for RX family MCU and its kit, visit the below Web site. -
Page 24: Revision History
Renesas RX Family MCB-RX26T Type C User's Manual Revision History Rev. Date Description Page Summary 1.00 August 25, 2023 First edition R12UZ0127EJ0100 Rev 1.00 Page 21 of 21 August 25, 2023... - Page 25 MCB-RX26T Type C User's Manual Publication Date: Rev 1.00 August 25, 2023 Published by: Renesas Electronics Corporation...
- Page 26 MCB-RX26T Type C User's Manual R12UZ0127EJ0100...
