Humanscale Quickstand Installation Instructions page 2

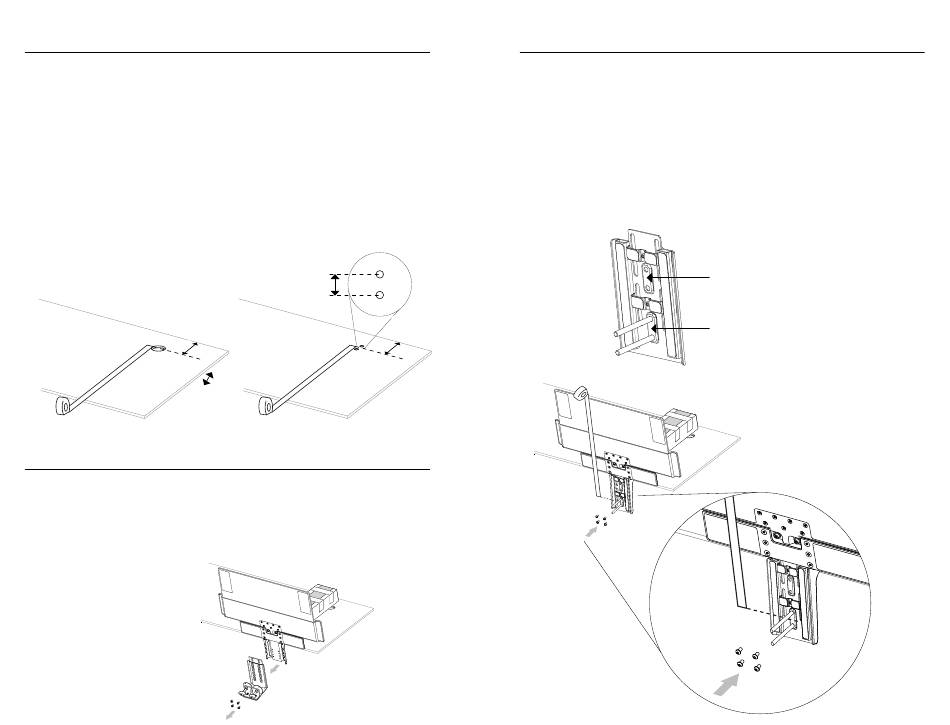

ST EP 1
Preparing the Work Surface
Tools: Measuring Tape
• If using a grommet hole, drill a hole 2" (51 mm) minimum in diameter and
5" (127 mm) minimum from the rear of the work surface to the center of
the grommet hole. (fig. A)
• If using bolt holes, drill two holes 1/2" (13 mm) in diameter and 1.2"
(30 mm) apart from each other and 5" (127 mm) minimum from the rear
of the work surface to the center between the two bolt holes. (fig. B)
• Measure from the front of work surface to the center of grommet hole
or directly between the two bolt holes. (fig. C) This measurement will be
required in Step 3
(127 mm)
C
A
ST EP 2
Remove Base Clamp
Tools: 5 mm Hex Key
• Carefully place the QuickStand down onto the work surface as shown in
(fig. D). Remove the (4) M8 x 10 mm Pan Head Machine Screws to remove
the Base Clamp
1.2"
(30 mm)
5"
C
B
D
ST EP 3
Installing Bolt Mount
Tools: Measuring Tape
5 mm Hex Key
• Place the Bolt-Mount onto the QuickStand base and position it so that the
distance between the front edge of the platform to the center of the pair-bolt
(fig. E) is equal to the measurement taken in Step 1. (fig. C)
• Attach the Bolt-Mount using the (4) M8 x 10 mm Pan Head Machine Screws.
(fig. F)
5"
(127 mm)
Position pair-bolt here for surface's
30" (800 mm) or less
Position pair-bolt here (shown) for surface's
E
greater than 30" (800 mm)
F
