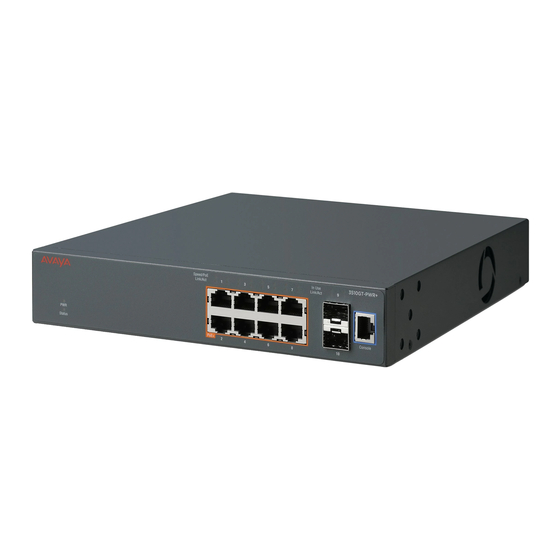

Installation Job Aid for Ethernet Routing
Switch 3500 Series
Notices
Notice paragraphs alert you about issues that require your attention.
Following are descriptions of the types of notices used in this document.
Note:
Notes provide tips and useful information regarding the installation and operation of products.
Electrostatic alert:
ESD notices provide information about how to avoid discharge of static electricity and
subsequent damage to products.
Caution:
Caution notices provide information about how to avoid possible service disruption or damage to
products.
Warning:
Warning notices provide information about how to avoid personal injury when working with
products.
Voltage:
Danger—High Voltage notices provide information about how to avoid a situation or condition
that can cause serious personal injury or death from high voltage or electric shock.
Danger:
Danger notices provide information about how to avoid a situation or condition that can cause
serious personal injury or death.
©
2017, Extreme Networks, Inc.
All Rights Reserved.
NN47203-303
Issue 04.01
November 2017
1
Advertisement
Table of Contents
Related Manuals for EXTREME SWITCHING ERS 3500 Series
Summary of Contents for EXTREME SWITCHING ERS 3500 Series
- Page 1 Installation Job Aid for Ethernet Routing Switch 3500 Series NN47203-303 Issue 04.01 November 2017 Notices Notice paragraphs alert you about issues that require your attention. Following are descriptions of the types of notices used in this document. Note: Notes provide tips and useful information regarding the installation and operation of products. Electrostatic alert: ESD notices provide information about how to avoid discharge of static electricity and subsequent damage to products.
-
Page 2: Safety Messages
Safety messages Safety messages are an important part of the technical documentation. The messages alert you to hazards to personnel and equipment and provide guidance for the safe operation of your equipment. Failure to comply with the safety messages could result in equipment damage and personal injury. Following are the most common types of safety messages. -
Page 3: Ac Power Cord Specifications
AC power cord specifications Required cable: AC power cord that meets the requirements of your local electrical code. The following table describes the International power cord specifications. Table 1: International power cord specifications Country and plug description Specifications Typical plug Continental Europe 220 or 230 VAC •... -
Page 4: Before You Begin
For information about technical specifications for the individual switches, see Installing Ethernet Routing Switch 3500 Series. Installing the switch The following procedures describe how to install an ERS 3500 series on a table or shelf, or in an equipment rack. November 2017... - Page 5 ERS 3510GT or ERS 3510GT-PWR+. Installing an ERS 3500 Series in an equipment rack This procedure describes how to install an ERS 3500 Series in an equipment rack using the supplied brackets. The brackets secure the chassis and prevent it from sliding around during vibration or when inserting or extracting transceivers.
- Page 6 3. Slide the switch into the rack. Insert and tighten the rack mount screws. November 2017 Installation Job Aid for Ethernet Routing Switch 3500 Series...
- Page 7 4. Verify that the switch is securely fastened to the rack. Installing an ERS 3510GT or ERS 3510GT-PWR+ switch The following procedures describe how to install the switch models ERS 3510GT or ERS 3510GT- PWR+ on a table or shelf, or in an equipment rack. Installing an ERS 3510GT or ERS 3510GT-PWR+ switch on a table or shelf You can install the switch models ERS 3510GT or ERS 3510GT-PWR+ on a flat surface such as a table or shelf.
- Page 8 cables. An ERS 3510GT switch weighs 3.85 lb (1.75 kg). An ERS 3510GT-PWR+ switch weighs 5.9 lb (2.70 kg). Cable weight varies for each installation. Important: Allow at least 2 inches (5.1 cm) on each side of the switch for proper ventilation and at least 5 inches (12.7 cm) at the back of the switch for power cord clearance.
- Page 9 Installing a single ERS 3510GT or ERS 3510GT-PWR+ switch in an equipment rack The following procedure describes how to install the switch models ERS 3510GT or ERS 3510GT- PWR+ using the supplied brackets. The brackets secure the chassis and prevent it from sliding around during vibration or when inserting or extracting transceivers.
- Page 10 4. Slide the switch into the rack as shown in the figure that follows. Insert and tighten the rack mount screws. Note: The ERS 3500 Series mounting hardware is specific for each switch model. Do not mix screws or brackets between different ERS 3500 Series switches. 5. Verify that the switch is securely fastened to the rack.
- Page 11 Rack requirements: • Provide the equivalent of one rack of vertical space for each switch in an E1A or 1EC standard 19 inch (48.2 cm) equipment rack and T1A 23 inch (58.5 cm) equipment rack. • Appropriate rack space to accommodate 1U switch height (44 mm). •...
- Page 12 Note: When mounting two 3510GT-PWR+ units side by side in an equipment rack, run the switches in high power mode to ensure adequate airflow. In high power mode, the available power is 170 Watts. #show poe-main-status PoE Main Status - Stand-alone ------------------------------------------------- Power Mode : High Power Budget...
- Page 13 4. Once the switches are joined together, fold the hinged bracket inward. 5. Perform one of the following • To connect two ERS 3510GT or two 3510GT-PWR+ switches together use the rear bracket as shown below, with four M4 pan head screws to secure the switches at the rear. Once the rear bracket has been installed, the switches can be installed in the rack.
-
Page 14: Connecting Ac Power
1. Connect the AC power cord to the back of the switch, and then connect the cord to a power outlet. Note: ERS 3500 Series does not have a power switch. When you connect the AC power cord to a suitable AC power outlet, the switch powers up immediately. November 2017... - Page 15 2. Check the front-panel LEDs as the device is powered on to be sure the PWR LED is lit. If not, check that the power cable is correctly plugged in. Connect the AC power cord to the back of the switch, and then connect the cord to a power outlet.
