Cree SmartCast FLEX Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your
local electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
3. Suitable for damp locations.
Convient aux emplacements humides.
4. Access above ceiling required. Do not install insulation within 3" (76mm) of
any part of the luminaire.
Accès requis au-dessus du plafond. Ne pas mettre l'isolant à moins de 76
mm (3 po) de toute partie du luminaire.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
• The FLEX Series of
specification troffers is for non-
insulated ceiling applications
using T-Bar ceiling grid,
drywall grid adaptors, and
suspended mount.
TO INSTALL:
1
Luminaire Hooks
1 of 3
FLEX Series with Cree SmartCast
• Designed for use in 120-
277V 50-60 Hz or 347V 60Hz
protected circuit (fuse box,
circuit breaker). Supply wire
sized as per NEC or governing
code(s), 90C rated.
• Make sure to cap off all unused
leads.
T-bar

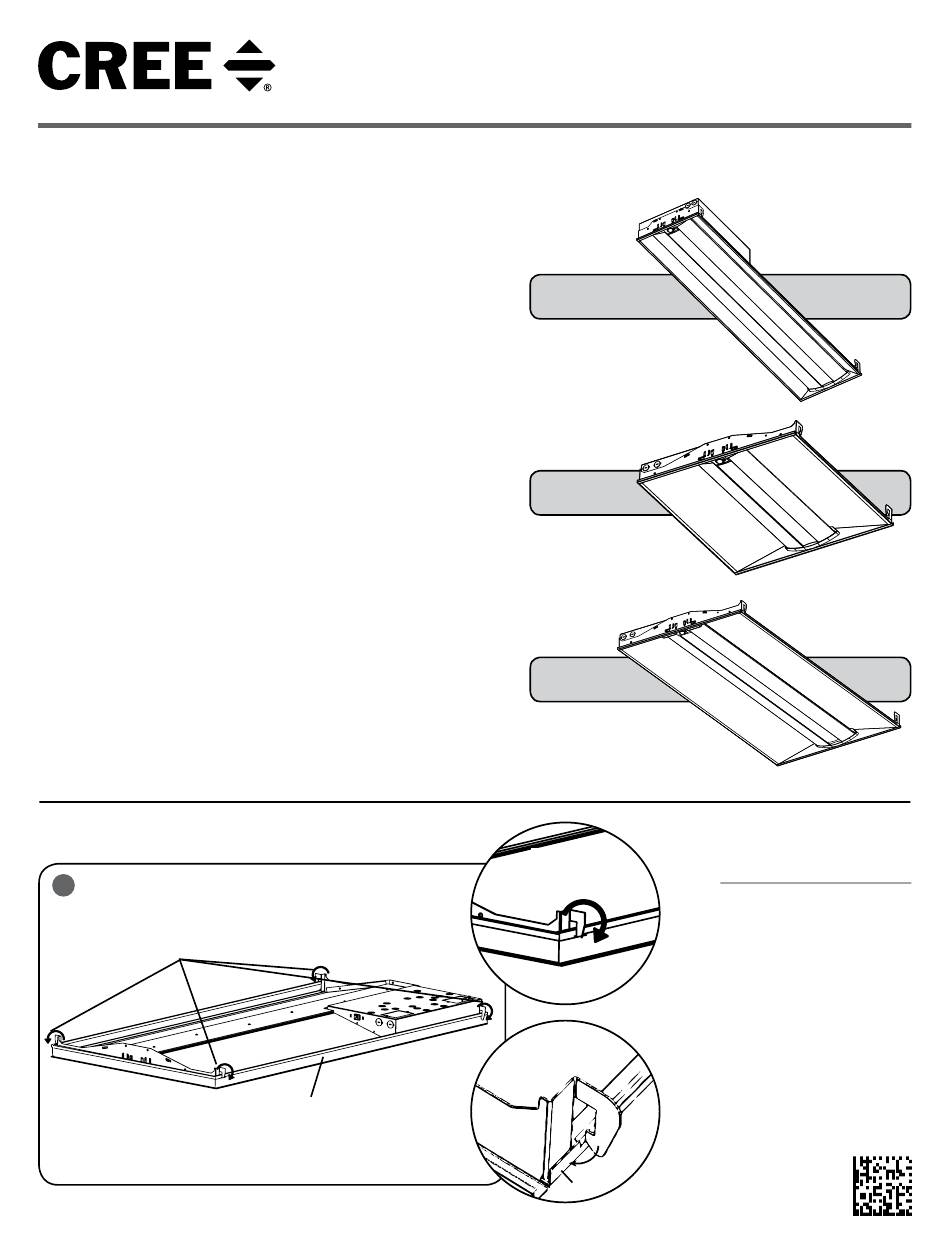

Includes: FLX14™, FLX22™ and FLX24™
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
FLX14™
FLX22™
FLX24™
1st:
90° Bend
2nd: Bend
Against T-bar
T-bar
Technology
®
Specification Troffers
T- BAR CEILING MOUNTING
STEP 1:
Bring the FLEX troffer up into the
T-Bar grid.
STEP 2:
Locate the luminaire hooks and
bend them out 90 degrees for
installation. See Figure 1.
NOTE: The luminaire hooks ship
bent in and need to be bent out
for installation.
STEP 3:
Then bend the luminaire hooks
against the T-Bar to secure the
luminaire. See Figure 1.
LPN00438X0001A1_C
