Cree CPY250 Installation Instructions page 3

9
10
(4) Mounting
Holes
ELECTRICAL CONNECTIONS
STEP 1:
Make the following Electrical Connections :
a. Connect the black fixture lead to the voltage supply position
of the terminal block or Hot 1 (for 208/240V wiring).
b. Connect the white fixture lead to the neutral supply position
of the terminal block or Hot 2 (for 208/240V wiring).
c. Connect the green or green/yellow ground lead to the green
wire position of the terminal block.
d. If Dimming is an option; connect the violet dimming positive
lead to the supply dimming positive lead.
e. If Dimming is an option; connect the grey dimming negative
lead to the supply dimming negative lead.
© 2018 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change.
See http://lighting.cree.com/warranty for warranty and specifications. Cree
CPY250™ is a trademark of Cree, Inc..
3 of 3
Air Craft
Cable
Adapter Plate
(4) 5/16"
Drive
Fasteners
and the Cree Logo are registered trademarks, and
®
CPY250
TM
Hub
Cable
Boss
View of the Back
of CPY250
TM
LINE
OR HOT 1
GREEN
NEUTRAL
OR HOT 2
VIOLET
GREY

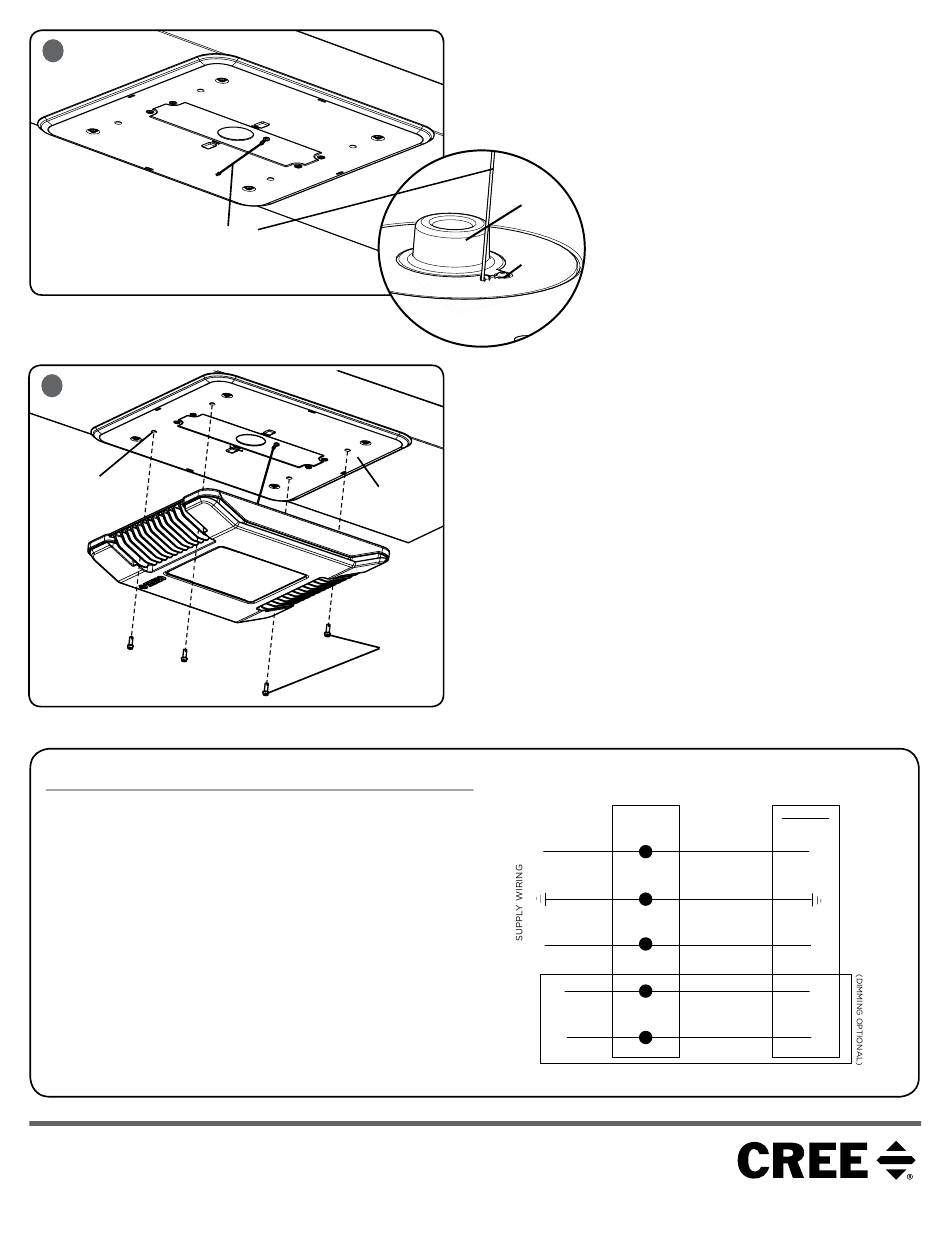

STEP 10:
Attach the Air Craft Cable to the cable boss
on the back of the CPY250
attach the other end of the Air Craft Cable to
the Adapter Plate with supplied #8 screws
to 30 in-lb torque. Then carefully let the
CPY250 luminaire hang down for wiring.
TM
See Figure 9.
STEP 11:
Make wiring connections between the
CPY250 luminaire and the leads coming
TM
out of the center of the Adapter Plate per the
"Electrical Connections" section.
STEP 12:
Position the CPY250 luminaire over the
TM
Adapter Plate, carefully push excess leads
through the Adapter Plate hole into the 304
driver cavity.
STEP 13:
Align the CPY250 mounting holes with
TM
the mounting holes in the Adapter Plate
and insert (4) 3/4" long 5/16" drive supplied
fasteners. Secure the CPY250
tightening the (4) 5/16" drive fasteners to 30
in-lbs torque. See Figure 10.
NOTE: (1) 1"long 5/16" drive fastener is
included in hardware bag if needed to draw
CPY250 closer to Adapter Plate in the event
TM
of an uneven canopy surface.
TERMINAL
LUMINAIRE
BLOCK
LINE-BLACK
GROUND-GREEN
NEUTRAL-WHITE
DIM (+) VIOLET
DIM (-) GREY
LPN00622X0001A0_A
luminaire and
TM
luminaire by
TM
