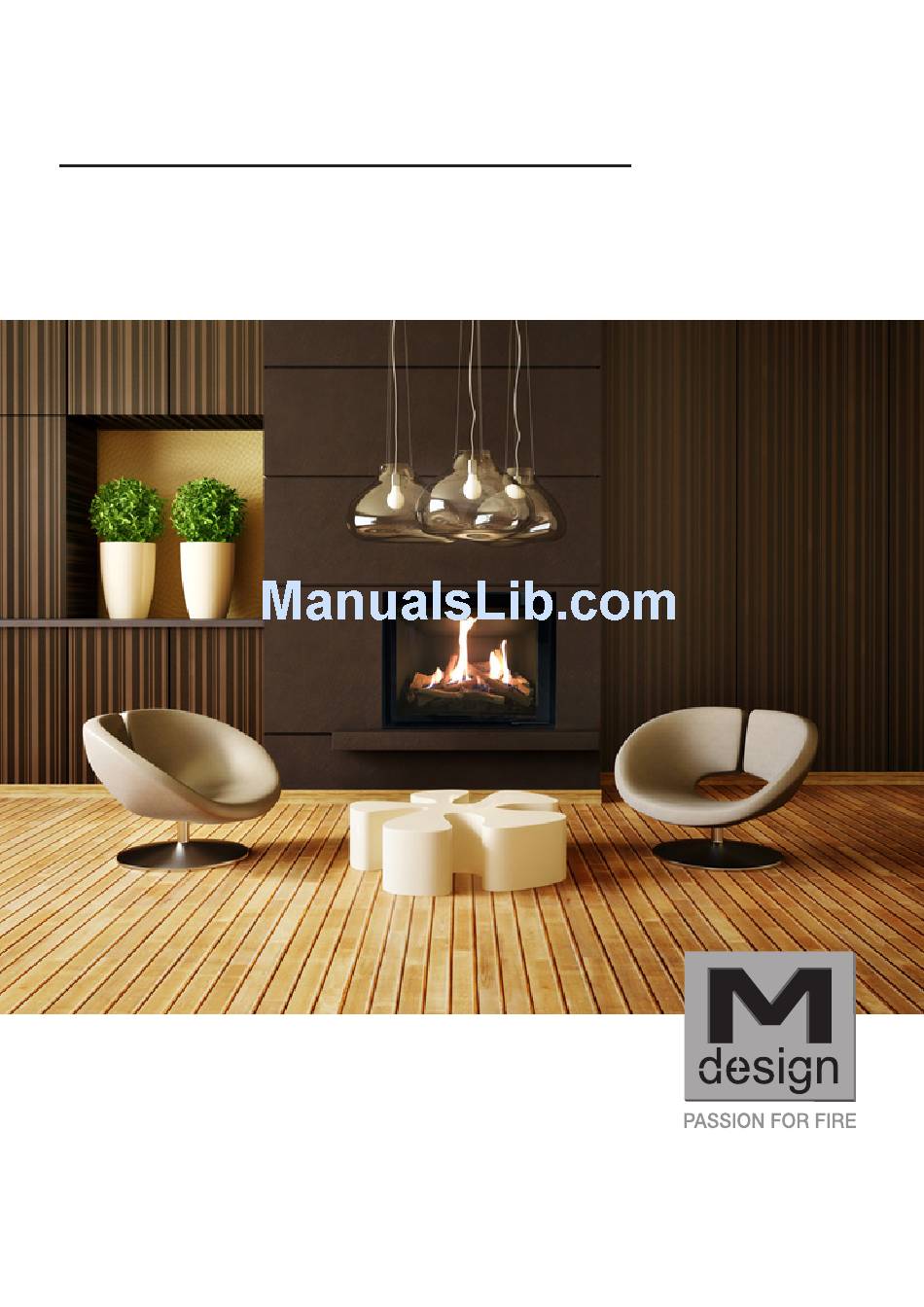

- Page 1 INTERRA GAS 60 - 68 - 74 Návod na inštaláciu a používanie INSTALLATION GUIDE V.10/2016...
- Page 2 VERY IMPORTANT INSTRUCTION FOR INSTALLATION AND USE M-DESIGN FIRES. THE SUPPLIER TAKES NO RESPONSIBILITY FOR ANY POSSIBLE DAMAGE, POWER LESS WORKING APPLIANCE DUE TO ACCIDENT AS A RESULT OF INCORRECT INSTALLATION. INSTRUCTION FOR INSTALLATION AND USE 60-68-74...
-
Page 3: Table Of Contents
SUMMARY 1. GENERAL ................................... 1.1. TRANSPORT AND INSTALLATION .......................... 4 2. INSTALLATION ................................2.1. GAS CONNECTION ..............................5 2.2. ELECTRICAL CONNECTION ............................. 5 3. CHIMNEY INSTALLATION ............................. 4. AIR FLOW..................................4.1. NATURAL CONVECTION............................6 4.2. CONVECTION BY MEANS OF A FAN (OPTIONAL) ....................6 4.3. -
Page 4: General
GENERAL This fireplace is a product based on a closed combustion system. It is designed to create a pleasant atmosphere and comfort in your living room. It is an efficient heating system that creates the impression as if you were in front of a real pen fire. Fireplaces with GAS combustion are based on the principle of natural chimney draft. -
Page 5: Installation
IF THERE IS GREASE OR SOME DUST LAYER ON THE GLASS (INSIDE OR OUTSIDE), CLEAN IT BEFORE USING GAS FIREPLACE. CLEANING OF THE GLASS IS THE ONLY MAINTENANCE THAT CAN BE PERFORMED BY CUSTOMERS. INSTALLATION This equipment should be accompanied by experts and according to the latest regulations. Based on the specifications from your order, the device is designed for either natural gas or propane. -
Page 6: Electrical Connection
GAS fireplaces come standard with ½” GAS connection - pipe diameter of 12 mm. Welded connections with internal thread diameter of 12 mm is provided in accordance with CE standards. The connection is always on the left size of the fireplace. Make sure the pipe of the gas has no error before connected into the GAS fireplace. -
Page 7: Fan (Optional)
On the glass may be formed light coating after first firing. This is the colour. The glass can be cleaned using a cleaning product Bio-Clean M-Design after cooling the appliance. The product may later be used to clean the glass door. -
Page 8: Security And Maintance
SECURITY AND MAINTANCE At least once a year make the equipment checked by a qualified professional. Follow the following points: Enclosed equipment produces very high temperatures, what means that all the external surfaces (metal frame and glass) are after some heating time very hot. Ensure that small children do not touch the glass, because it can cause burn injury. -
Page 9: Guarantee
Incorrect usage. Insufficient maintenance. All internal adjustments or reconstruction device. Costs for packaging and transport. All costs not pre-arranged with M-design. Costs linked with misuse or abuse of the appliance. Serial number: Open the door. Above... -
Page 10: Gas Unit
Underbox Gas unit below appliance Version with nearbox Version with underbox Interra 60 497,5 Interra 60 567,5 547,5 617,5 Interra 68 Interra 68 Interra 74 597,5 Interra 74 667,5 INSTRUCTION FOR INSTALLATION AND USE 60-68-74... -
Page 11: Frames (Optional)
9. FRAMES (OPTIONAL) On the model INTERRA can be mounted 4-seided or 3-seided frame. These frames can be mounted even after the whole installation, because it is inserted into the outside of the fireplace as you can see on the pictures bellow. 3-sided frame 4-sided frame Interra with nearbox... -
Page 12: 4-Sided Frame Interra 4Cm And 2Cm
4-sided frame INTERRA 4cm and 2cm INSTRUCTION FOR INSTALLATION AND USE 60-68-74... -
Page 13: 3-Sided Frame Interra 4Cm And 2Cm
3-sided frame INTERRA 4cm and 2cm INSTRUCTION FOR INSTALLATION AND USE 60-68-74... -
Page 14: Installing The Chimney
Fig. 1 Roof Exit ( c fig. 1 This is recommended with a roof exit ≥ 3m Ø 150/100 Appliance C (min) C (max) Interra 60-68 Interra 74 fig. 2 Kit USSAN Fig. 2 Roof Exit via existing chimney (c 91) Ø 150/100 Appliance... - Page 15 Ø 150/100 Appliance A (min) B (min) B (max) Wall Exit Interra 60-68 A+8m Wall Exit Interra 74 A+7m Important : Be carefull every horizontal part does not have a negative inclination in direction of the outlet. It is even better, when possible to have a little inclination of 2 or 3 degrees ascending to avoid rain and condenstation in the tube.
- Page 16 Fig. 4 Roof exit with bend fig. 4 Ø 150/100 Appliance A (min) B (max) C (min) (A+B+C )max Interra 60-68 Interra 74 (A+C) -0,5m Ø 150/100 Appliance Interra 60-68-74 for each 90° bend substract 1m horizontally or add 1m vertically for each 45°/30°/15°...
-
Page 17: Spare Parts
11. SPARE PARTS INSTRUCTION FOR INSTALLATION AND USE 60-68-74... -
Page 18: Identification Plate
12. IDENTIFICATION PLATE INSTRUCTION FOR INSTALLATION AND USE 60-68-74...
