INA1651EVM SoundPlus™ High Common-Mode Rejection
This user's guide contains information for the INA1651 as well as support documentation for the INA1651
evaluation module (EVM). Included are the performance specifications, set-up procedure, modifications,
measured data, printed circuit board (PCB) layout, schematic, and bill of materials of the INA1651EVM.
SBOU212 – September 2018
Submit Documentation Feedback
Line Receiver Evaluation Module

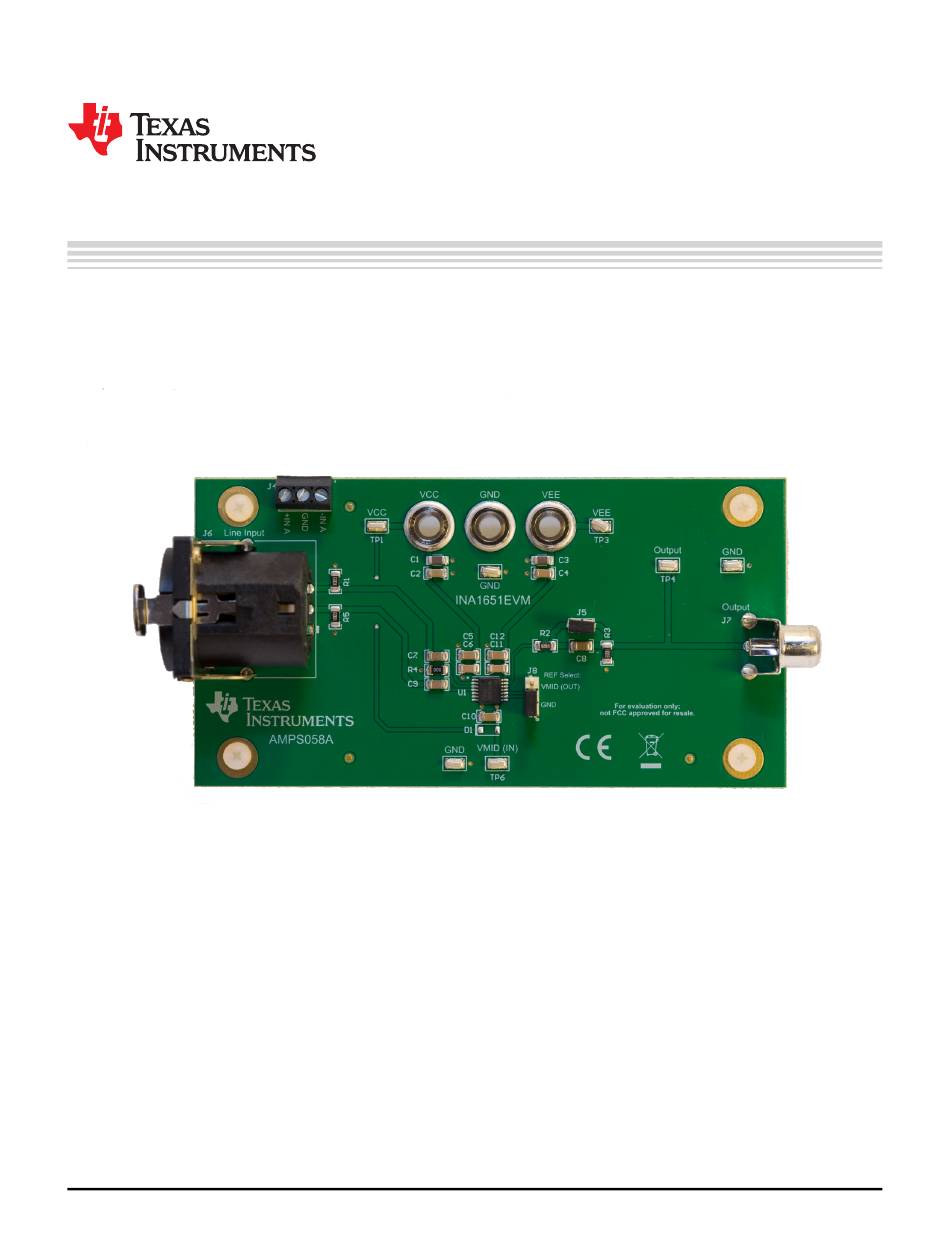

Figure 1. INA1651 SoundPlus™ Evaluation Module (EVM)
INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver
Copyright © 2018, Texas Instruments Incorporated
User's Guide
SBOU212 – September 2018
1
Evaluation Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoundPlus INA1651EVM and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments SoundPlus INA1651EVM

Summary of Contents for Texas Instruments SoundPlus INA1651EVM

  • Page 1 (PCB) layout, schematic, and bill of materials of the INA1651EVM. Figure 1. INA1651 SoundPlus™ Evaluation Module (EVM) SBOU212 – September 2018 INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 2: Table Of Contents

    ..................... Final Capacitor Voltage .................... INA1651EVM Bill of Materials Trademarks SoundPlus is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 Evaluation Module Submit Documentation Feedback Copyright ©...

  • Page 3: Introduction

    Introduction The INA1651 is a high common-mode rejection audio line receiver from the SoundPlus line of audio amplifier products from Texas Instruments. For a full list of electrical characteristics of the INA1651, please refer to the INA1651 product data sheet (INA165x SoundPlus™...

  • Page 4: Filtering The Vmid (In) Pin

    Capacitor C10 provides an option to filter the input to the internal reference buffer, VMID (IN). Equation 4 calculates the cut-off frequency due to C10. c _ VMID 250k INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 5: Start-Up Time

    For an explanation on the effects of increasing the common- mode input impedance, refer to section 8.1.2 of the INA1651 product data sheet (SBOS818). SBOU212 – September 2018 INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 6: Test Setup And Results

    BNC connectors and test points provide a way to measure the performance of the INA1651 while a load is connected. INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 7: Ref A And Com A

    For dual-supply operation, place a shunt in the lower position (pins 1 to 2) of J8, as indicated by the red box in Figure 5, to connect VREF A and COM A pins to ground (GND). SBOU212 – September 2018 INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 8 Test Setup and Results www.ti.com Figure 5. J8 Connection for Dual Supply Operation INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 9: Thd+N Vs. Amplitude

    0.0005 0.001 0.01 Output Amplitude (V Figure 7. THD+N vs. Amplitude Measurement ±15-V Supplies, 1-kHz Output, 22-kHz MBW SBOU212 – September 2018 INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 10: Thd+N Vs. Frequency

    Frequency (Hz) Figure 9. THD+N vs. Frequency Measurement With 10 V Output ±15-V Supplies, 10-V Output, 90-kHz MBW INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 11: Fast-Fourier Transform (Fft

    4000 6000 8000 10000 12000 14000 16000 18000 20000 Meas_x Figure 10. FFT Measurement 1 kHz, 10-V Output SBOU212 – September 2018 INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 12: Board Layout

    The trace from J8 to VREF A was kept as short as possible to maintain the exceptional common- mode rejection of the INA1651. Figure 11. Top Layer PCB Layout INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 13 Board Layout www.ti.com Figure 12. Bottom Layer PCB Layout SBOU212 – September 2018 INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 14: Schematic, Bill Of Materials, And Reference

    This section contains the schematic, bill of materials, and references for the INA1651EVM. Schematic Figure 13 illustrates the EVM schematic. Figure 13. Schematic INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 15: Bill Of Materials

    SoundPlus High Common-Mode Rejection Line Receiver, PW0014A PW0014A INA1651IPW Texas Instruments (TSSOP-14) Reference INA1651 SoundPlus™ High Common-Mode Rejection Line Receiver SBOU212 – September 2018 INA1651EVM SoundPlus™ High Common-Mode Rejection Line Receiver Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
