User's Guide
INA183EVM
This user's guide describes the characteristics, operation, and use of the INA183EVM evaluation module (EVM).
This EVM is designed to evaluate the performance of the
document also includes a schematic, reference printed-circuit board (PCB) layouts, and a complete bill of
materials.
1
Trademarks..............................................................................................................................................................................1
Overview.....................................................................................................................................................2
2.1 INA183...............................................................................................................................................................................
2.2 INA183EVM.......................................................................................................................................................................
2.3 Hardware Included.............................................................................................................................................................
Use.....................................................................................................................................................4
Shunt...................................................................................................................................................4
Circuit..................................................................................................................................................................6
4.1
Rx03...................................................................................................................................................................................6
4.2 Rx01, Rx02, Cx01, Cx02, Cx03.........................................................................................................................................
4.3 U1, U2 and U3...................................................................................................................................................................
4.4 Voltage Inputs....................................................................................................................................................................
5 INA183EVM Schematic and PCB Layout..............................................................................................................................
5.1 Schematic..........................................................................................................................................................................
5.2
PCB....................................................................................................................................................................................8
6 Bill of Materials.......................................................................................................................................................................
1 Trademarks
All trademarks are the property of their respective owners.
SBOU255 - JANUARY 2021
Submit Document Feedback
ABSTRACT
Table of Contents
Shunt..............................................................................................................................................5
Copyright © 2021 Texas Instruments Incorporated
INA183
voltage output current shunt monitors. This
Table of Contents
2
2
3
6
6
6
7
7
9
INA183EVM
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments INA183EVM
Summary of Contents for Texas Instruments INA183EVM
-
Page 1: Table Of Contents
Table of Contents User’s Guide INA183EVM ABSTRACT This user’s guide describes the characteristics, operation, and use of the INA183EVM evaluation module (EVM). This EVM is designed to evaluate the performance of the INA183 voltage output current shunt monitors. This document also includes a schematic, reference printed-circuit board (PCB) layouts, and a complete bill of materials. -
Page 2: Introduction And Overview
INA183A3 2.2 INA183EVM The INA183EVM is intended to provide basic functional evaluation of this device family. The fixture layout is not intended to be a model for the target circuit, nor is it laid out for electromagnetic compatibility (EMC) testing. -
Page 3: Hardware Included
• Three breakaway PCB, one of each for INA183A1, INA183A2, and INA183A3 If any of these items are missing or damaged, please contact the Texas Instruments Product Information Center nearest you to inquire about a replacement. SBOU255 – JANUARY 2021... -
Page 4: Quick Start Setup And Use
Quick Start Setup and Use www.ti.com 3 Quick Start Setup and Use Follow these procedures to set up and use the INA183EVM. 3.1 Measurement With Shunt This connection method allows the user to install a shunt resistor on the EVM and connect the common-mode... -
Page 5: Measurement Without Shunt
This connection method allows the user to either simulate the voltage developed across a sense resistor based on a given set of system conditions, or to connect the INA183EVM remotely to an existing shunt already included in an example application. -
Page 6: Ina183Evm Circuit
4.3 U1, U2 and U3 Ux is the device under test. Three device boards are supplied with the INA183EVM kit. Each board is populated with one of the available device gains. This allows users to test the devices and determine the gain setting that is best suited for a given application. -
Page 7: Ina183Evm Schematic And Pcb Layout
5 INA183EVM Schematic and PCB Layout Note Board layouts are not to scale. These figures are intended to show how the board is laid out; they are not intended to be used for manufacturing INA183EVM PCBs. 5.1 Schematic Figure 5-1 shows the schematic for the INA183A1 section of the EVM. -
Page 8: Pcb

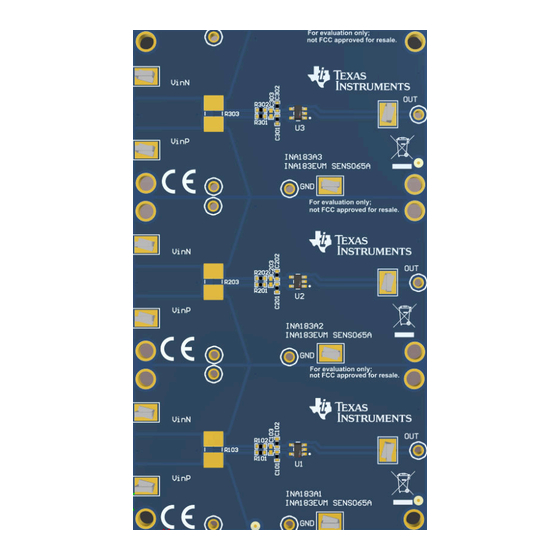

INA183EVM Schematic and PCB Layout www.ti.com 5.2 PCB Figure 5-2 illustrates the PCB and assembly for the INA183A1 section of the EVM. Figure 5-2. INA183EVM PCB INA183EVM SBOU255 – JANUARY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
