INA1620EVM Audio Amplifier Evaluation Module
This user's guide contains information for the INA1620 device as well as support documentation for the
INA1620 evaluation module (EVM). Included are the performance specifications, set-up procedure,
modifications, measured data, printed circuit board (PCB) layout, schematic, and bill of materials (BOM) of
...................................................................................................................
1
2
3
...................................................................................................................
3.1
3.2
3.3
3.4
4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
5
5.1
6
6.1
6.2
6.3
1
2
All trademarks are the property of their respective owners.
SBOU205 - March 2018
Submit Documentation Feedback
.....................................................................................
..................................................................................................................
....................................................................................................
..........................................................................................................
.....................................................................................................
........................................................................................
..................................................................................................
................................................................................................
...............................................................................................................
.............................................................................................
..............................................................................................
..........................................................................................
.............................................................................................
................................................................................................................
...............................................................................................................
..........................................................................................................
....................................................................................................
..........................................................................................................
Copyright © 2018, Texas Instruments Incorporated
Contents
...........................................................................
............................................................................
List of Figures
......................................................................
.....................................................................
INA1620EVM Audio Amplifier Evaluation Module
User's Guide
SBOU205 - March 2018
3
3
3
4
5
5
5
6
6
8
8
8
8
9
10
12
13
13
16
16
18
18
3
4
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments INA1620EVM
Summary of Contents for Texas Instruments INA1620EVM
-
Page 1: Table Of Contents

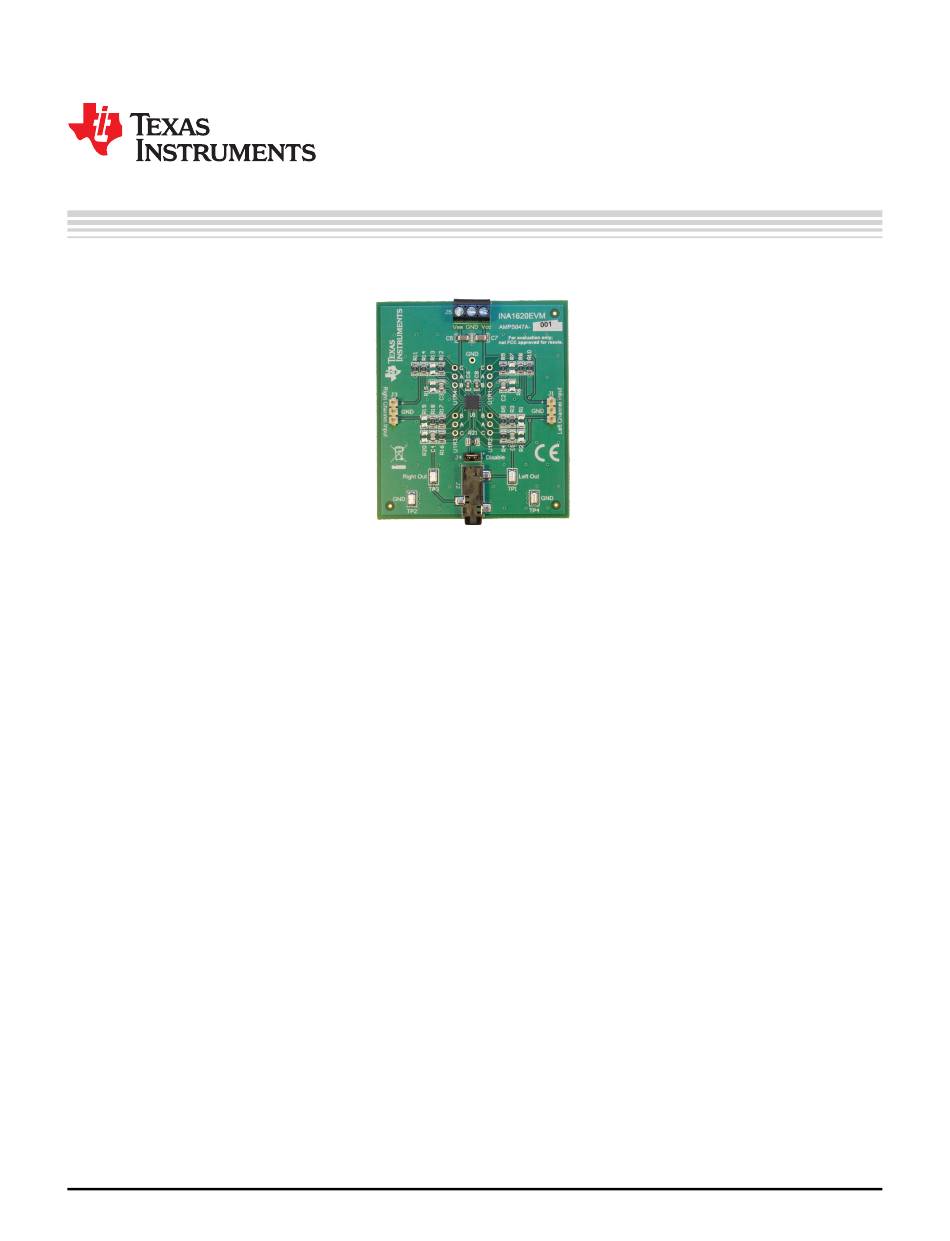

User's Guide SBOU205 – March 2018 INA1620EVM Audio Amplifier Evaluation Module This user's guide contains information for the INA1620 device as well as support documentation for the INA1620 evaluation module (EVM). Included are the performance specifications, set-up procedure, modifications, measured data, printed circuit board (PCB) layout, schematic, and bill of materials (BOM) of the INA1620EVM. - Page 2 List of Tables ............... INA1620EVM Measured Performance Summary ............Jumper and Resistor Substitutions for Internal Resistor Reuse .................... INA1620EVM Bill of Materials INA1620EVM Audio Amplifier Evaluation Module SBOU205 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 3: Introduction
The phase shift and cutoff frequency of this EVM can be modified by changing external capacitors. The INA1620EVM allows external resistors to be used instead of the internal thin-film resistors INA1620. This may be useful for applications where the excellent matching of the INA162 resistors is desired for another use. -

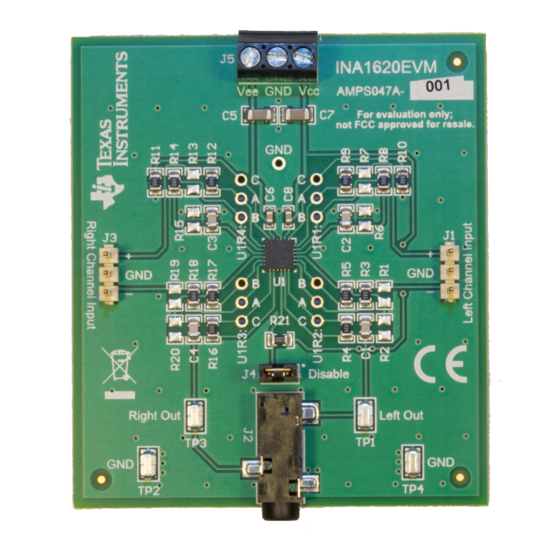

Page 4: The Ina1620Evm
RightChannelOutp The INA1620EVM also allows the use of external resistors to set the amplifier gain. Note that external resistors must be used if the thin-film resistors in the INA1620 are to be used for other purposes. Equation 4... -
Page 5: Cutoff Frequency
Figure 1. However, these resistors may be used for other purposes, if desired. The INA1620EVM supports disconnecting each of the four matched resistor pairs for external use, as described below. Table 2. Jumper and Resistor Substitutions for Internal Resistor Reuse INA1620 INTERNAL RESISTOR PAIR 0-Ω... -
Page 6: Test Setup And Results
Test Setup and Results www.ti.com Test Setup and Results This section describes how to properly connect, set up, and use the INA1620EVM. This section also includes measured data of the INA1620EVM to display typical performance of the INA1620EVM. Measurements include: •... -
Page 7: Power Supply Connections
Test Setup and Results www.ti.com Figure 3. Power Supply Connections SBOU205 – March 2018 INA1620EVM Audio Amplifier Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 8: Input Connections
THD+N vs Frequency for a 32-Ω load. Left Channel Right Channel -100 -105 -110 THD+N Ratio (dB) Figure 4. THD+N vs Frequency for a 32-Ω Load INA1620EVM Audio Amplifier Evaluation Module SBOU205 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 9: Thd+N Vs. Amplitude
THD+N vs Amplitude for a 32-Ω load. Left Channel Right Channel -100 -120 0.01 Input Level (Vrms) Figure 6. THD+N vs Amplitude for a 32-Ω Load SBOU205 – March 2018 INA1620EVM Audio Amplifier Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 10: Fast Fourier Transforms
2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 Frequency (Hz) Figure 8. FFT of Left Channel With a 32-Ω Load INA1620EVM Audio Amplifier Evaluation Module SBOU205 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 11: Fft Of Right Channel With A 32-Ω Load
2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 Frequency (Hz) Figure 10. FFT of Left Channel With a 16-Ω Load SBOU205 – March 2018 INA1620EVM Audio Amplifier Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 12: Cmrr Vs. Frequency
CMRR vs. Frequency For all CMRR vs Frequency measurements, the Audio Precision was configured to provide a common- mode input signal into the INA1620EVM. This common-mode signal was configured to an amplitude of 1 and swept from 20 Hz to 200 kHz. -
Page 13: Board Layout
Board Layout www.ti.com Board Layout This section provides a description of the INA1620EVM board layout and layer illustrations. Layout The board layout for the INA1620EVM is shown in Figure 13 Figure 14. The top layer consists of all signal traces and is poured with a solid ground plane. Traces for both the left and right channel were kept as balanced as possible to eliminate any impedance mismatch due to trace impedance. -
Page 14: Top Layer Pcb Layout
Board Layout www.ti.com Figure 13. Top Layer PCB Layout INA1620EVM Audio Amplifier Evaluation Module SBOU205 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 15: Bottom Layer Pcb Layout
Board Layout www.ti.com Figure 14. Bottom Layer PCB Layout SBOU205 – March 2018 INA1620EVM Audio Amplifier Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 16: Schematic, Bill Of Materials, And Reference
This section contains the schematics, the bill of materials, and a list of reference documents. Schematic Figure 15 illustrates the EVM schematics. INA1620EVM Audio Amplifier Evaluation Module SBOU205 – March 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 17: Ina1620Evm Schematic
Schematic, Bill of Materials, and Reference www.ti.com Figure 15. INA1620EVM Schematic SBOU205 – March 2018 INA1620EVM Audio Amplifier Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 18: Bill Of Materials
Schematic, Bill of Materials, and Reference www.ti.com Bill of Materials Table 3 lists the EVM BOM. Table 3. INA1620EVM Bill of Materials Designator Value Description Package Reference Part Number Manufacturer !PCB1 Printed Circuit Board AMPS047 C1, C2, C3, 100pF CAP, CERM, 100 pF, 50 V, +/- 5%,... - Page 19 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 20 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 21 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
- Page 22 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
- Page 23 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
