5.4

Electrical installation

Connect the control plug with the DriveControl or alternative controller.
If necessary, set the DIP switches according to requirements (see „DIP switches", page 19).
Insert the plug of the RollerDrive so that with the the „RD" labeling can be read and the „EC310" labeling is to the
rear, i.e. cannot be read.
5.5 Eingänge und Ausgänge

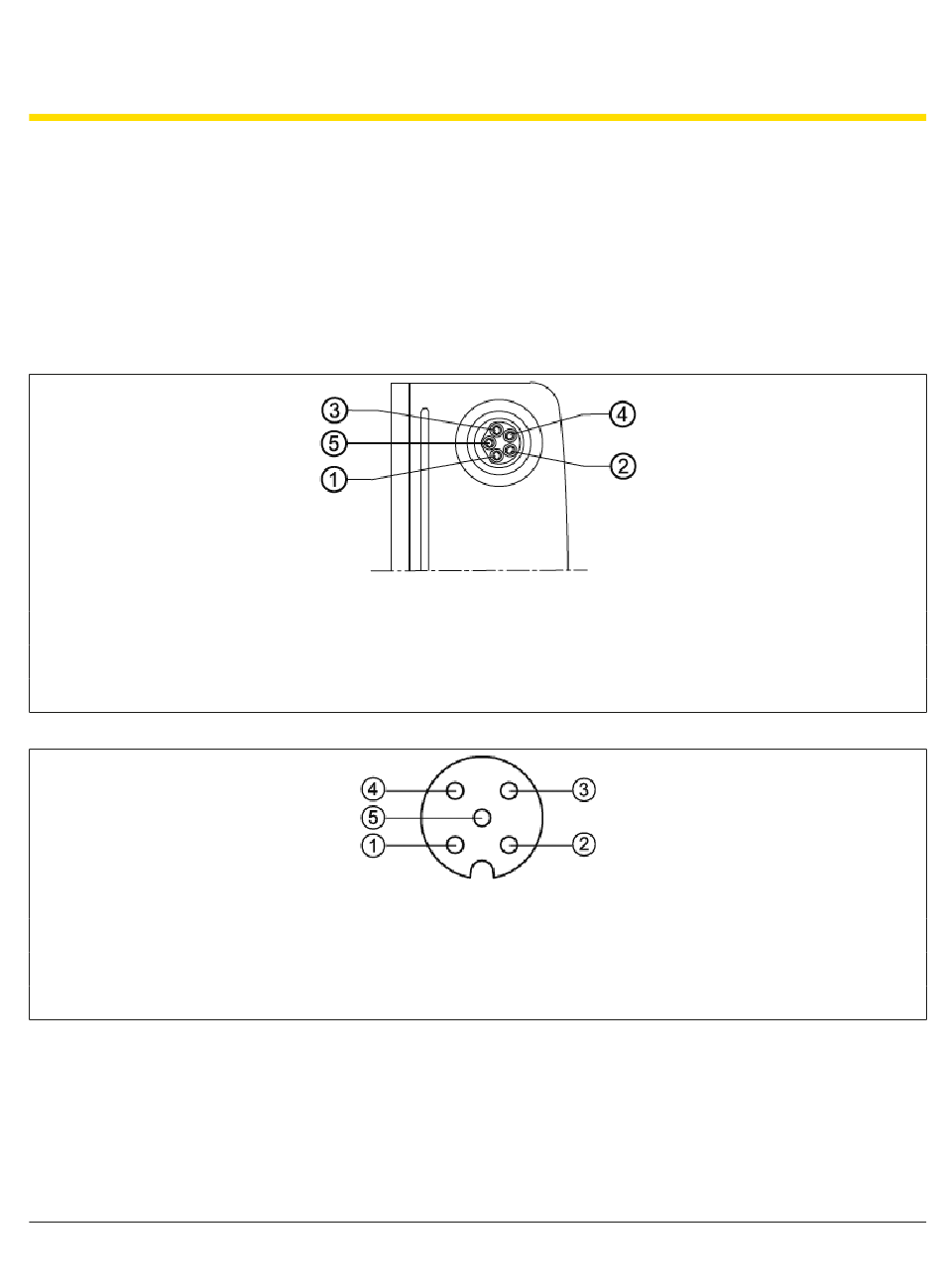

RollerDrive connection: 8 mm snap-in, 5-pin, pin location in accordance with DIN EN 61076-2
1 +24 V DC
2 Output for direction of rotation
3 Ground
Controller connection
1 +24 V DC
2 Input for direction of rotation
3 Ground
The electrical data for each connection is specified in the appendix (see „Electrical data of connectors", page 35).
Version 2.0 (12/2019) Online
Translation of the original operating manual
Assembly and installation
4 Input error signal
5 Output speed signal
4 Output error signal
5 Input speed signal
