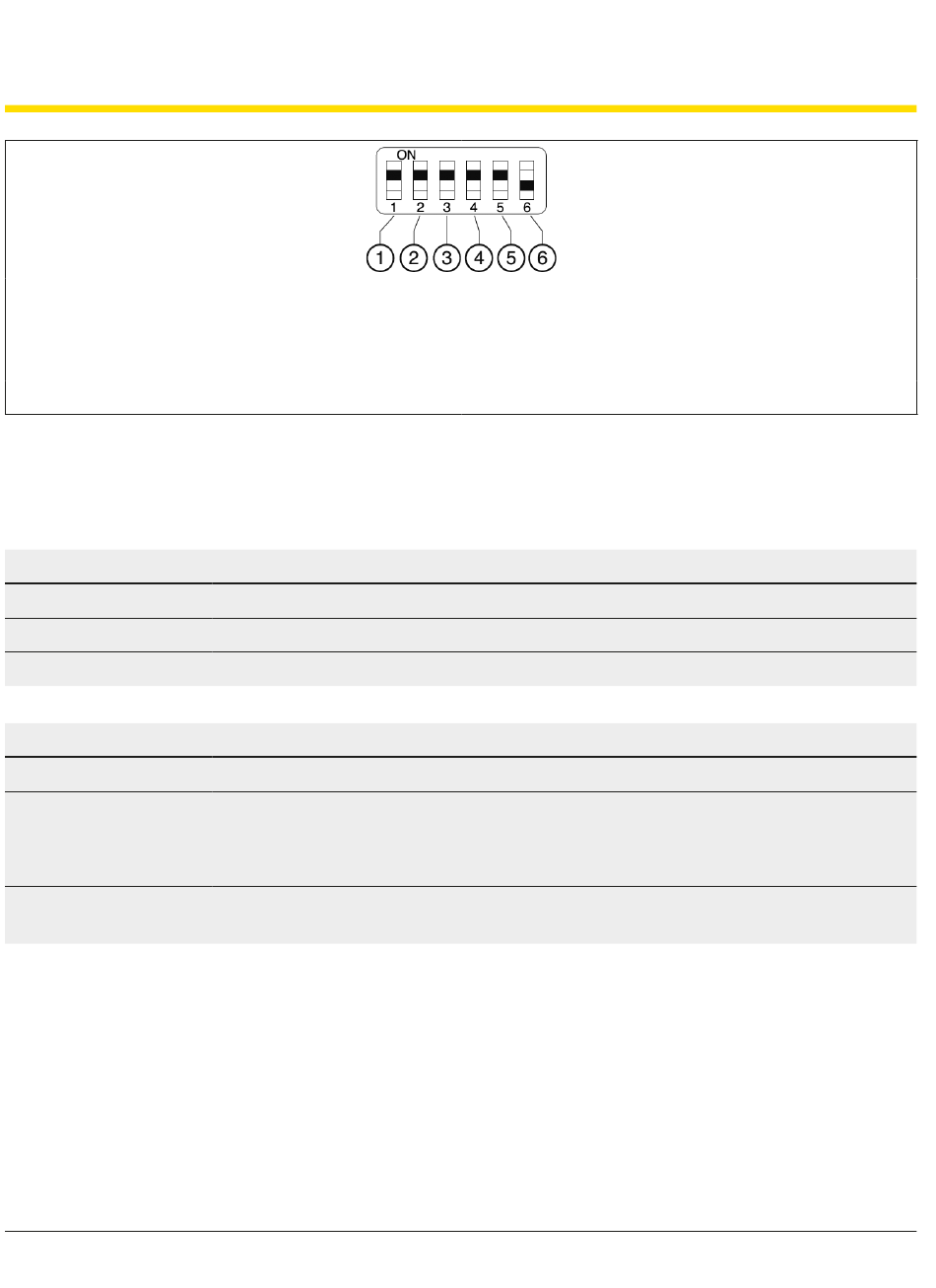

DIP switches
1 Bit 3
2 Bit 2
3 Bit 1
3.7

Meaning of the LED

The LEDs indicate the operating state of the AdControl and the RollerDrive and provide information about the
operating voltage.
LED green
On steady
Flashing
Off
LED green
On steady
Flashing slowly
1)
Flashing quickly
2)
LED flashing slowly = 0,5 s on - 1,5 s off
1)
LED flashing quickly = 0,5 s on - 0,5 s off
2)
18 von 38
Meaning
AdControl ready for operation
RollerDrive rotating/is activated
AdControl not ready for operation
Meaning
fuse in AdControl defective
• Operating voltage too low or too high
• RollerDrive Error
• RollerDrive faulty or not connected
Abschaltung wegen erhöhter Temperatur
im Chopperwiderstand
4 Bit 0
5 7,85:1 / 13:1
6 Reserve
Operating voltage
19 to 26 V
19 to 26 V
Operating voltage
unter 18 V oder über 26 V
