Installation INSTRUCTIONS
4299 WALL SWITCH
1
GENERAL INFORMATION
SARGENT Model 4299 Wall Switch is a momentary contact switch.
2
SPECIFICATIONS
Face Plate
Push Button
Contact Rating
Switch Type
3
INSTALLATION INSTRUCTIONS
A. Important
1. CAUTION: Disconnect all power before beginning installation to prevent electrical shock
and equipment damage.
2. Installer must be a trained and experienced service person.
3. All wiring must comply with applicable local electrical codes, ordinances and regulations.
800-810-WIRE (9473) • www.sargentlock.com • A6946C
Stainless Steel; 4-1/2" x 2-3/4"
Illuminated Green "EXIT"
10A @ 125VAC
6A @ 30VDC
Normally Open (N.O.) Momentary contact (SPDT)

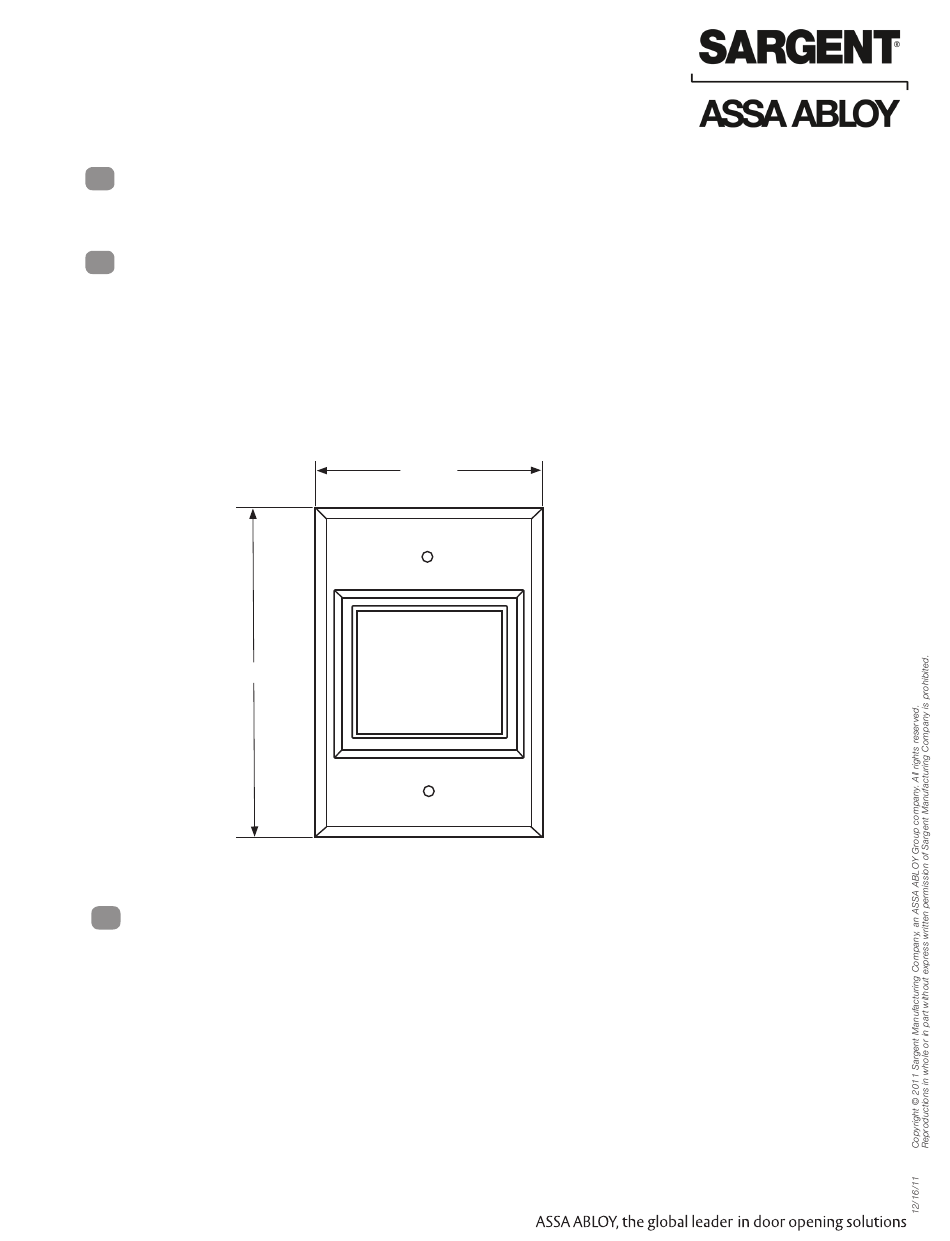

2-3/4"
EXIT
4-1/2"
1
Advertisement
Table of Contents
Related Manuals for Assa Abloy Sargent 4299
Summary of Contents for Assa Abloy Sargent 4299
- Page 1 INSTALLATION INSTRUCTIONS 4299 WALL SWITCH GENERAL INFORMATION SARGENT Model 4299 Wall Switch is a momentary contact switch. SPECIFICATIONS Face Plate Stainless Steel; 4-1/2” x 2-3/4” Push Button Illuminated Green “EXIT” Contact Rating 10A @ 125VAC 6A @ 30VDC Switch Type Normally Open (N.O.) Momentary contact (SPDT) 2-3/4”...
- Page 2 INSTALLATION INSTRUCTIONS 4299 WALL SWITCH INSTALLATION (continued) B. Installation 1. Mount a single-gang outlet box to stud or other rigid structure. 2. To meet ADA requirements, the following must be observed: Reach Ranges • If a clear floor space allows only a forward approach, the maximum high forward reach shall be 48”. •...
